Precision panel saws are also called sliding table saws, precision sliding table saws, woodworking precision panel saws, and precision saw panel sliding table saws. They are easy to operate, stable and safe. It is an indispensable machine for mass production, standardization, mechanization and specialization of furniture.
1. It is suitable for processing various wood structures such as density board, particle board, man-made board, ABS board, PVC board.
2. The internal structure of the sawing machine adopts the international mainstream linear slide rail configuration, which runs smoothly.

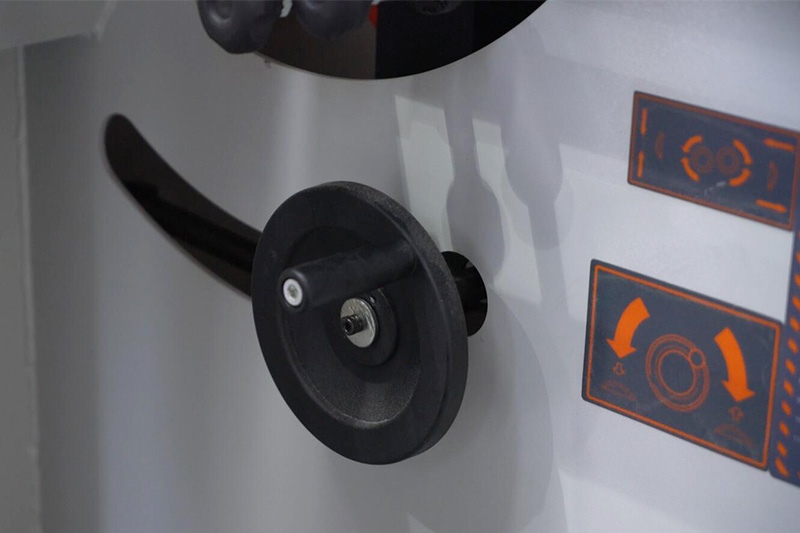

3. Equipped with a fine-tuning device, it is easy to operate and very convenient to use.

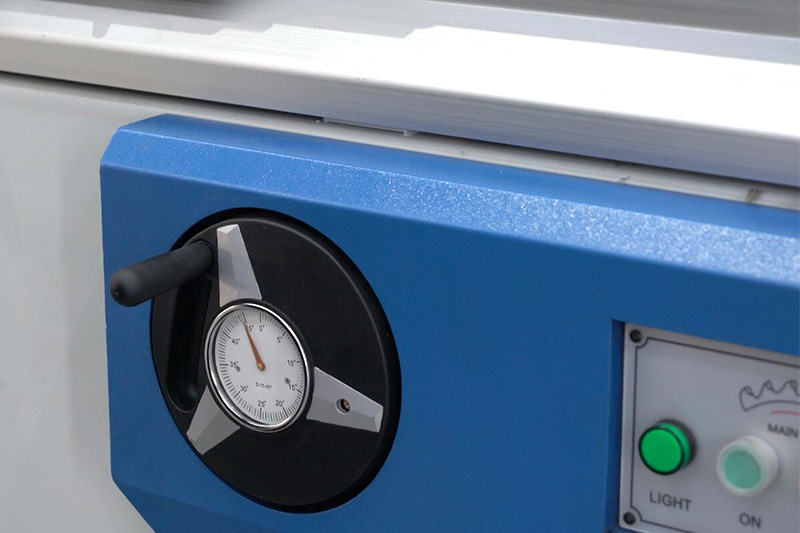

4. The main saw adopts electric control up and down, manual tilt digital display tilt angle.
| Dimensions | 3200*2540*900mm |
| Sliding table size | 3200*375mm |
| Sawtooth length | 3000mm |
| Sawtooth width | 1200mm |
| Sawtooth thickness | 78mm |
| Main saw diameter | 300mm |
| Scribing saw diameter | 120mm |
| Main saw speed | 4000/6000rpm |
The maximum working length is 3200mm. So you can use this table saw to cut any wood panel less than 3.2m.
It can support 45-90 degrees cutting.
It is easy to use this table saw and there is no need to install any software. It cut panels directly with saw blades.
