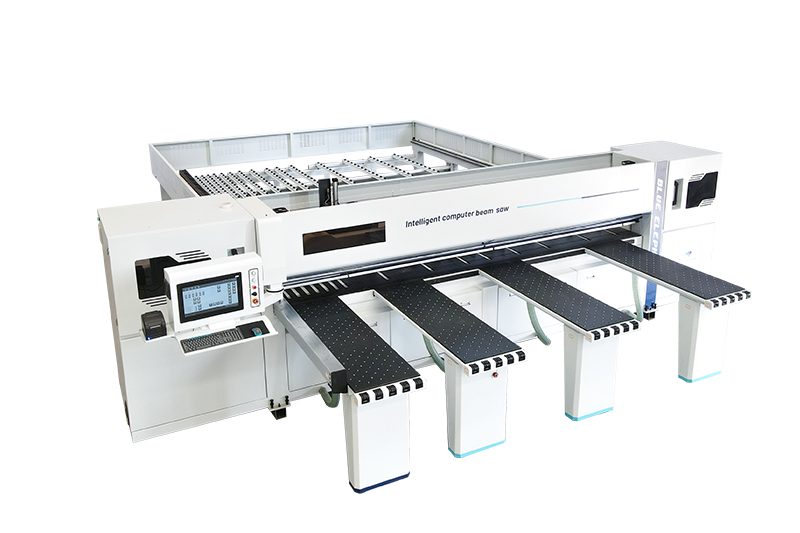

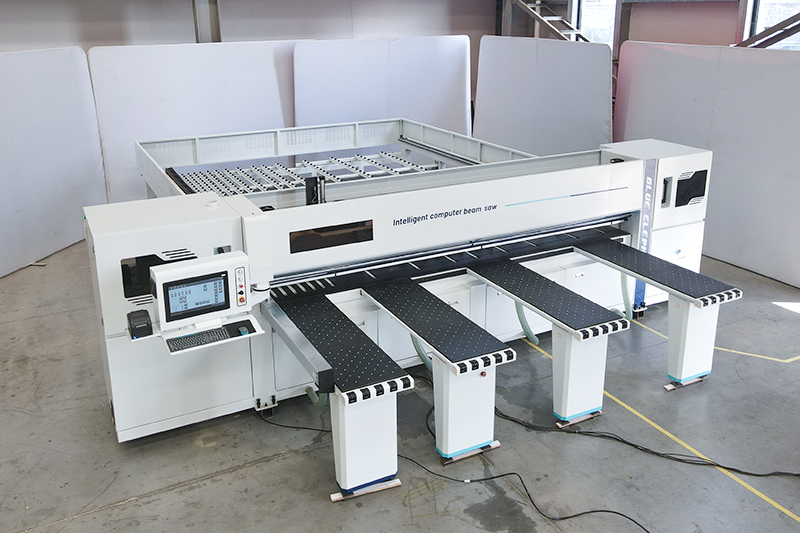

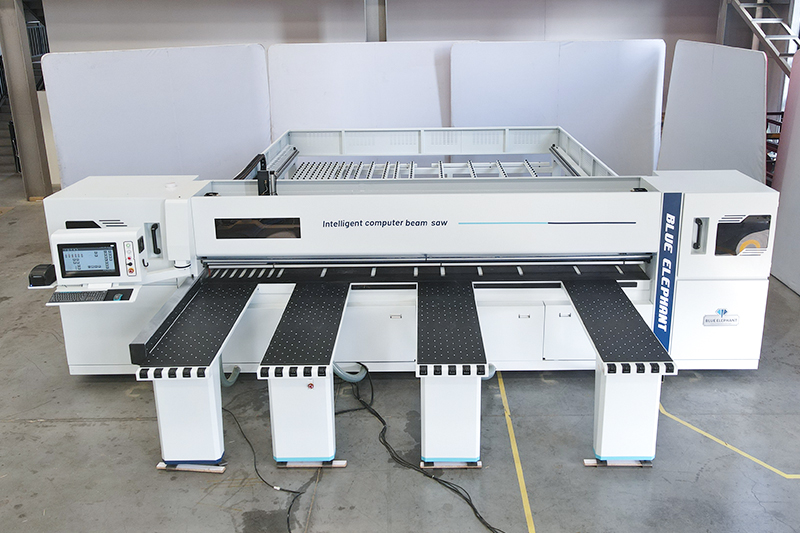

ELECNC-420 computerized beam saw is completely upgraded. This advanced horizontal panel saw machine adopts international famous electrical appliances and key components to ensure the high precision and reliability. And with its fast cutting speed and good performance, it can cut plate with length 4200mm and thickness 100mm.
1.The latest computerized beam saw has the advanced features of intelligent data import, wireless remote control and remote monitoring.
2.The ELECNC420 computer beam saw has various practical functions, including order design, order optimization, remnants management, layout optimization, and barcode printing.
3.The high-efficiency horizontal panel saw machine also has powerful optimization and layout programming functions, as well as the ability to simulate real-world scenarios.
4.The panel display interface is clear and easy to understand. We can use it to edit desired cutting plans and simulate the cutting process. It is compatible with various optimization software, barcode management software, and automation software.
5.Material dimensions are scanned and inputted intelligently by the computer, enabling one-click operation. Only 2 hours of training are required for on-the-job readiness.
| Model | ELECNC-420 |
| Overall dimension | 7300x6530x1900mm |
| Cutting length | 4200mm |
| Cutting thickness | 100mm |
| Main saw blade diameter | 360mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 16.5KW |
| Groove saw motor | 2.2KW |

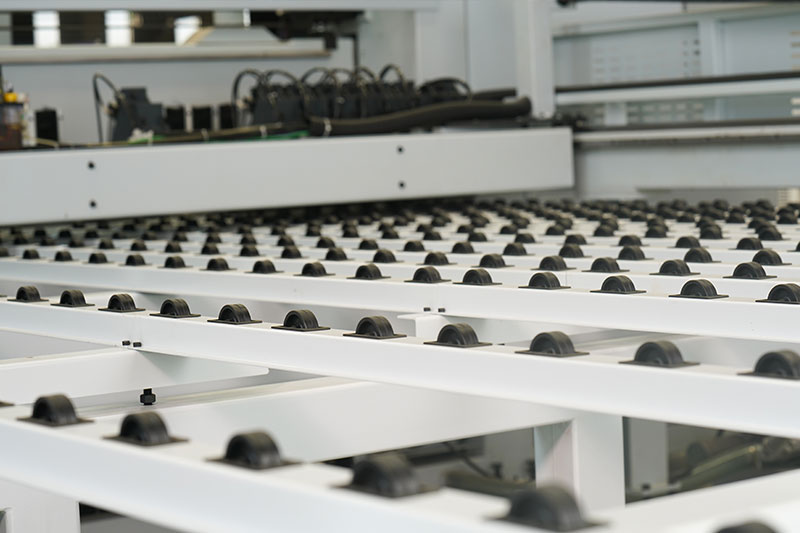

| Auto feeding motor | 1.8KW (AC, servo) |
| High-press ventilating motor | 4KW |
| Total power | 26.5kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm² |

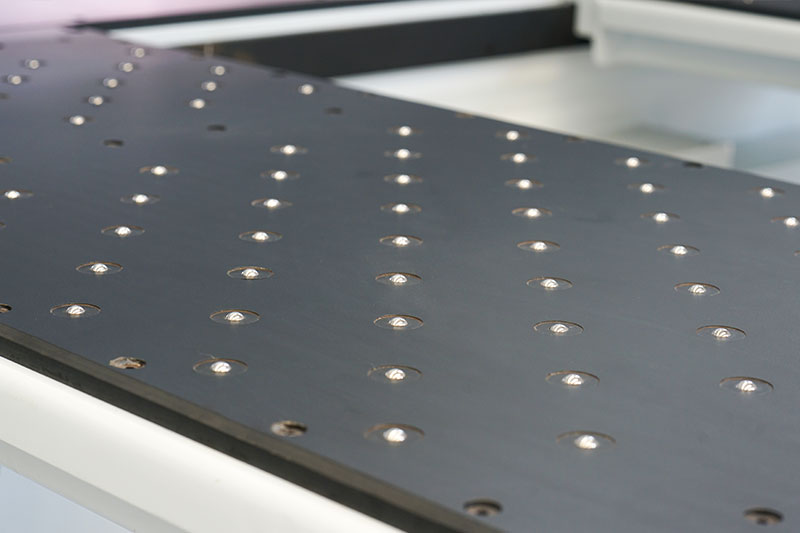

| Platform height | 950mm |

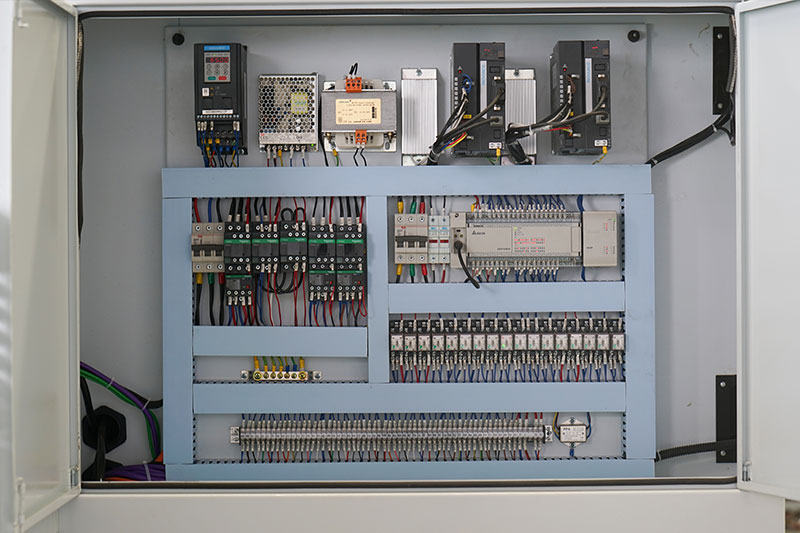

| Control switch | Schneider |
| PLC | Delta |
| Converter | Invt |
| Screen | Jikowi |
| Contactor | Schneider |
| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |
