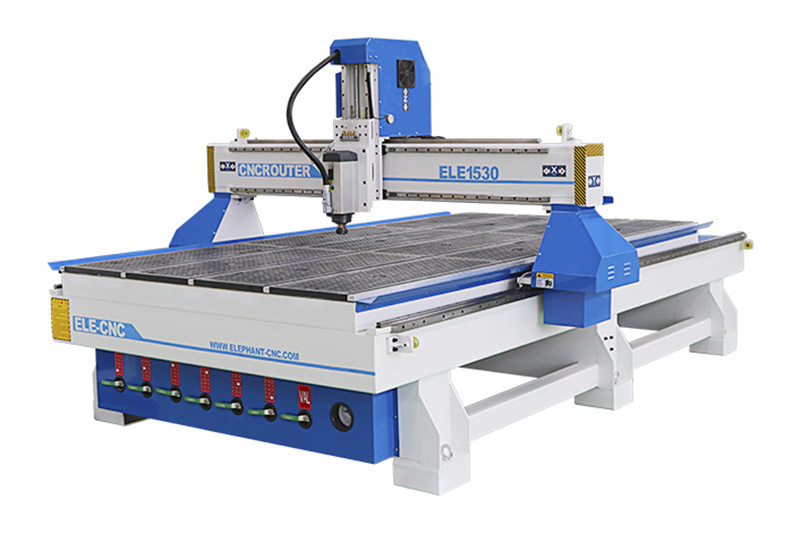

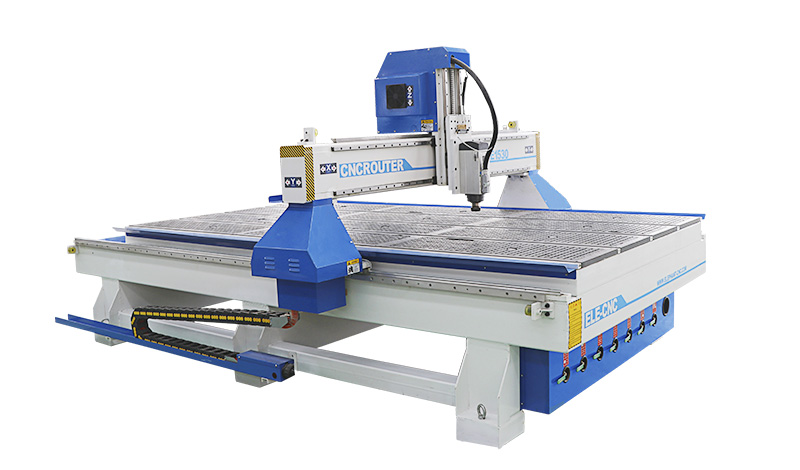

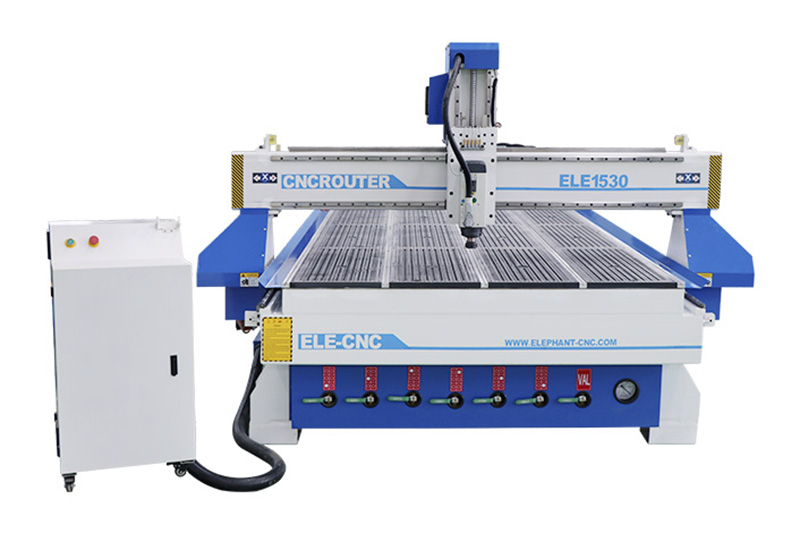

This 1530 wood CNC machine is a 3 axis cnc router machine for cabinet door making with T-slot vacuum table. Table size 5x10ft is big enough for common Polywood or MDF Engravng & Cutting. It fixes the workpieces more firmly, saves time and improves production efficiency. CNC Wood Door Making machine is Equipped with original Italy HSD spindle, which ensures the CNC wood router have a high speed and quality.
1. CNC Wood Door Making machine is equipped with original Italy HSD spindle, and it ensures the high speed and quality of this CNC wood router.
2. With a heavy-duty frame and gantry, it makes the machine run more stably.

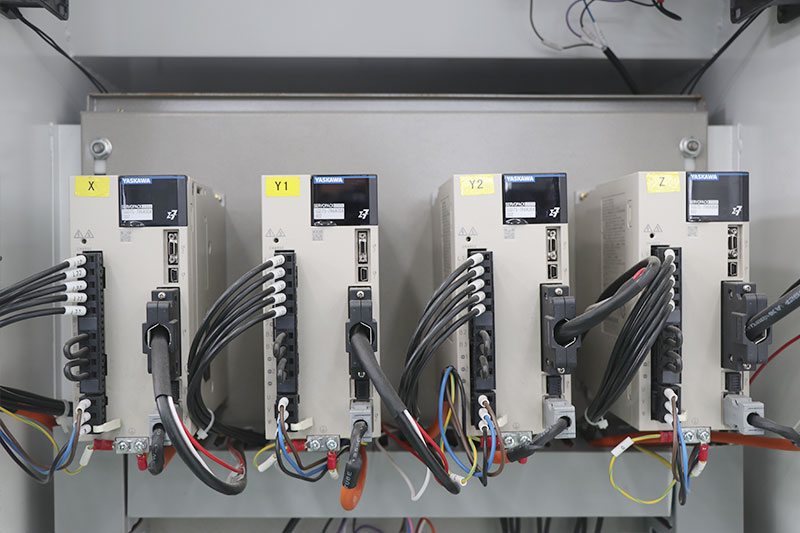

3. Adopting Japan YASKAWA servo system, it makes the machine has a longer service life.
4. Adopting DSP control system, and it is very easy to learn and operate.
| Model | ELECNC1530 |
| X,Y axis travel | 1500*3000*200mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 6kw HSD air cooling spindle, ER32 |
| Inverter type | 7.5kw DETLA inverter |
| Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |

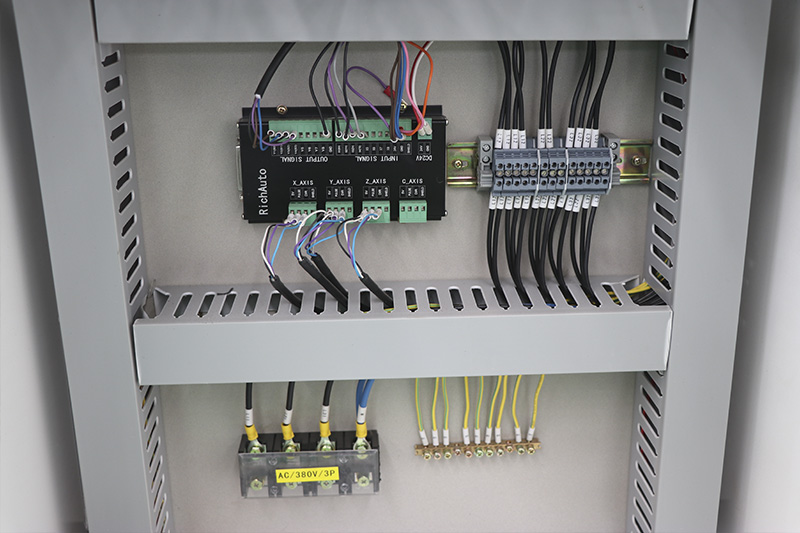

| Control system | DSP A11 Control system |
| Driving system | FL118 stepper motor and Leadshine 860H driver |
| Machine structure | Heavy duty body with quenching treatment |

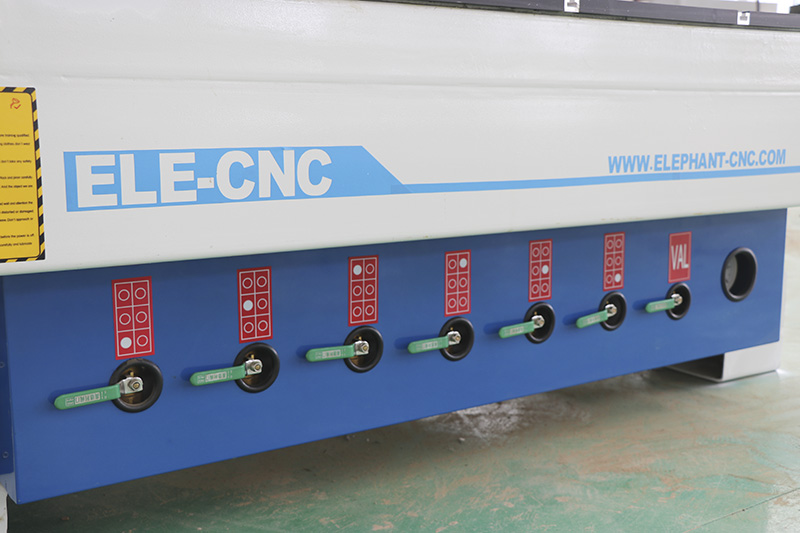

| Work table | Aluminum T-slot&vacuum work table |
| Linear guide | Taiwan 25# Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

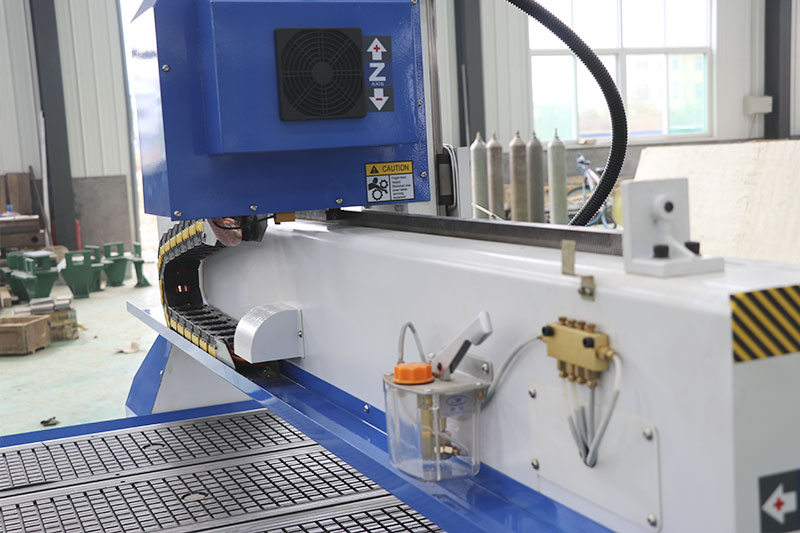

| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ARTCAM and Aspire |
| Command language | G Code |
| Traveling speed | 70-80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5KW HQD, 6KW HQD air cooling |
| Control system | Mach3, Ncstudio |
No. You can only change tools manually for this CNC router. It is suitable for woodworking industry. If you want automatic tool changing function, we also provide ATC CNC machines in our shop.
We have complete tutorials and professional after-sales service staff to help you learn to use the machine.
The voltage of the machine can be customized according to your demands, such as 380V, 3PH, 50Hz, or 220V, 1PH/3PH, 50/60Hz.
