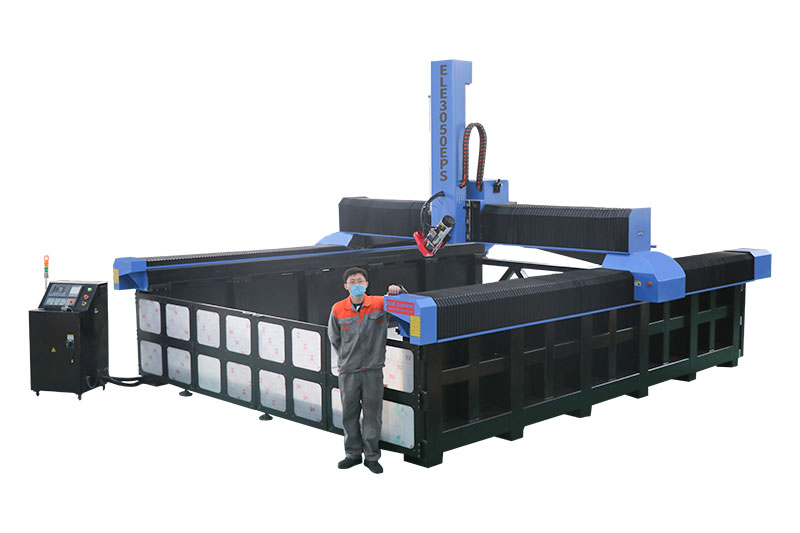

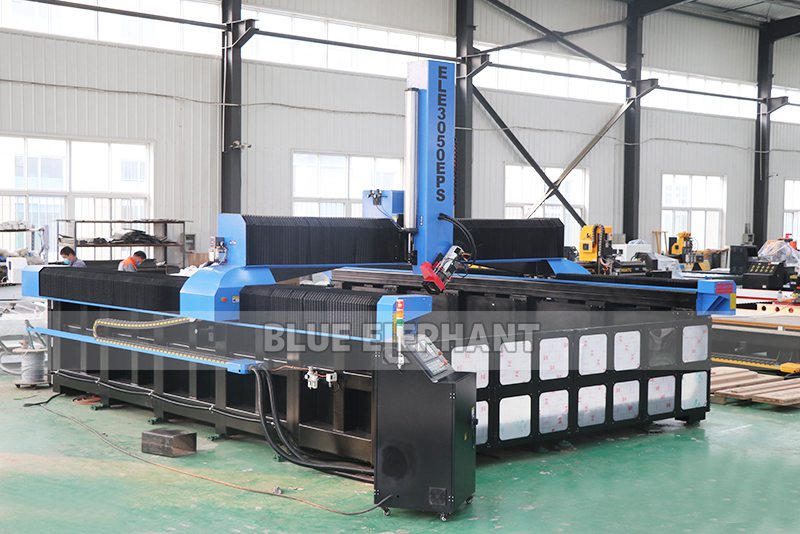

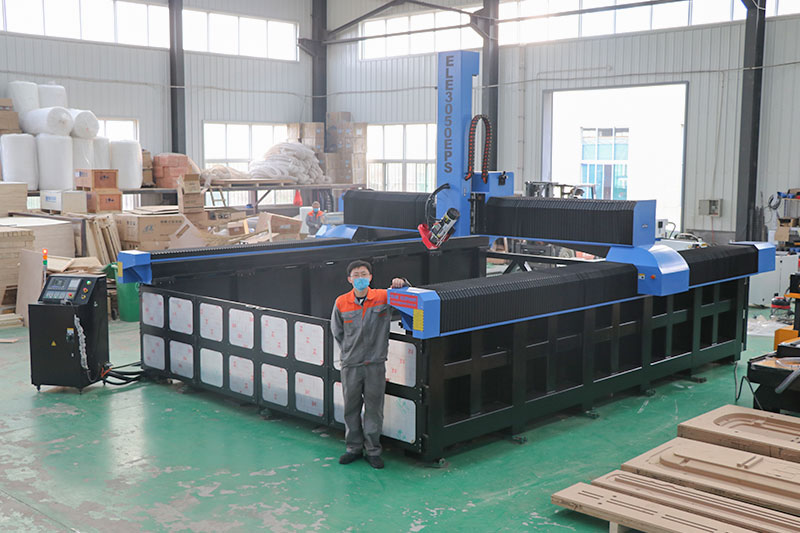

The heavy-duty 5 axis CNC router center can realize multiple complex and heavy-duty woodworking cutting 3D carving processes. It adopts the moving gantry and fixed worktable structure, ensuring great flexibility and wide processing range.
1. Heavy duty welded steel frame and gantry guarantee the maximum straightness and rigidity.
2. It reduces repeated clamping and tooling time, which greatly shortens product development cycle and improves work efficiency.
3. Equipped with a linear tool changer, it can change tools automatically and achieve multiple machining processes.
4. Adopting the T-slot working table, it can use the clips to fix the small-scale materials, which can save the vacuum pump electricity.
5. It can process multiple materials, such as stone, styrofoam, wood, aluminum, etc.
| Model | ELECNC-3050 |
| X,Y axis travel | 3000x5000mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm, etc |
| Z axis travel | 1100mm |
| Spindle type | 10KW Germany DMASS spindle |
| Inverter type | 15kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel type auto tool changer |
| Tool holder with collet | HSK tool holder |
| Control system | Syntec 610MA-E5 |
| Driving system | 1800W Japan YASKAWA servo motor and driver |
| Reducer | Japan SHIMPO reducer |
| Structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan #35 Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Customized professional 5 axis software |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Working air pressure | 0.6MPa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
A： The main difference lies in the diameter of the cutting tool. The commonly used cutting diameter for CNC milling is 6-40 mm, while the cutting diameter for 5 axis CNC router is 0.2-3 mm.
A: The 5 axis CNC router is a high-tech and high-precision CNC router specially used for processing complex curved surfaces, 3D carving, mold milling.
A: Yes. We provide customized professional software for the 5 axis CNC.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials.
Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.
