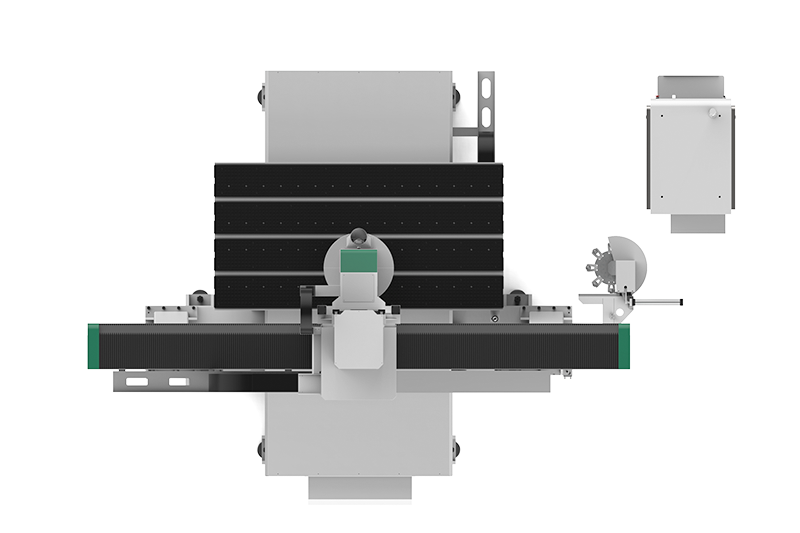

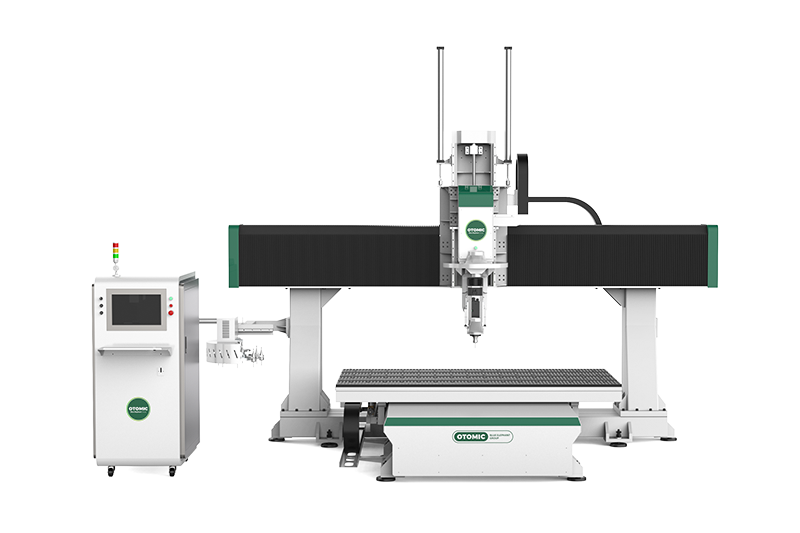

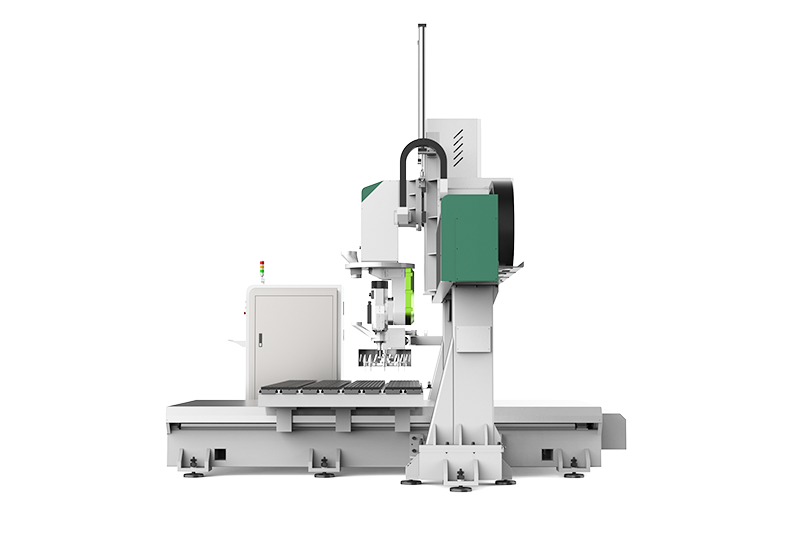

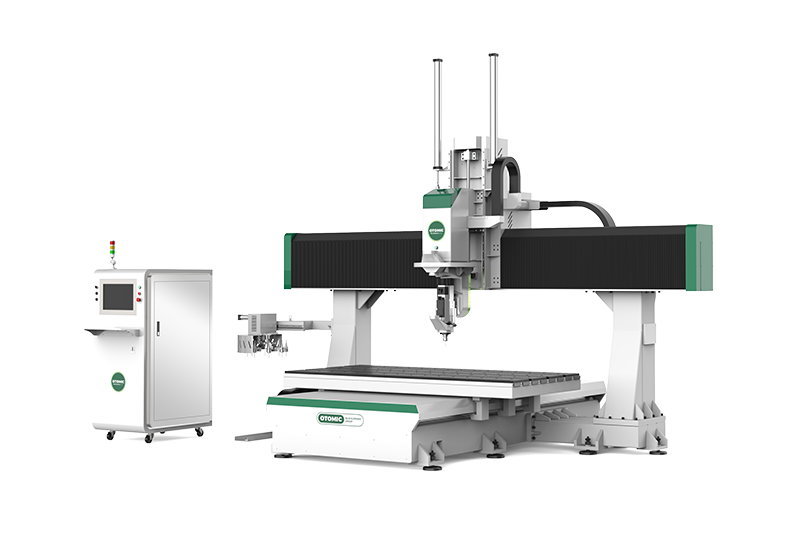

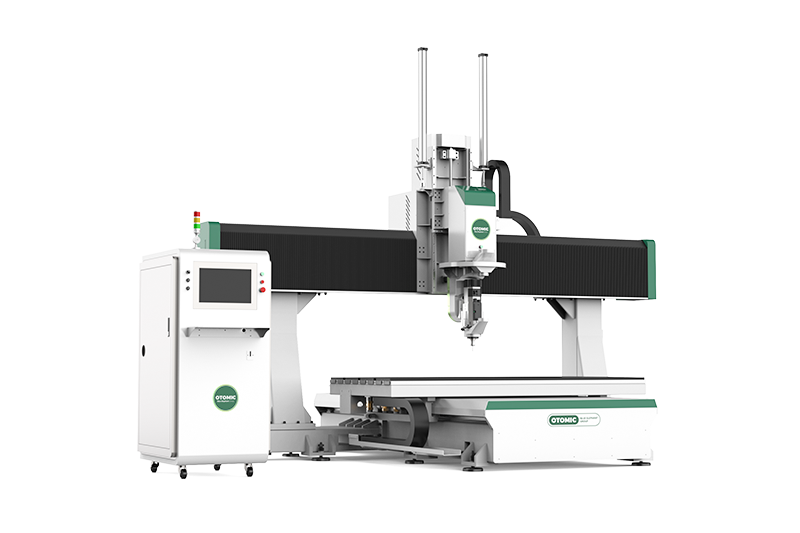

EW1 5 Axis CNC Router Machine with Dust Cover

EW1 5 Axis CNC Router Machine with Dust Cover

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : EW1-5Axis

Category : 5 Axis CNC Router

Price Range : $65000 to $70000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

EW1 5 axis CNC router machine with dust cover features a dust cover, safety enclosure, rotary ATC tool changer, and a worktable with both T-slots and vacuum pods. Widely used in aerospace, automotive, mold making, art, and medical industries, it enables high-precision and complex part machining—ideal for boosting productivity and product quality.

Features

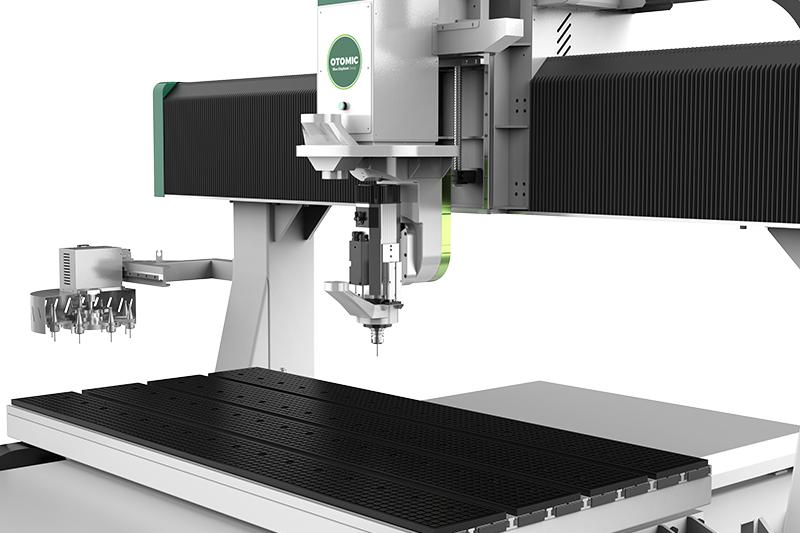

1. The T slot & vacuum table has stronger adsorption capacity and is easier to fix the material.
2. The metal sheet cover on the Z axis is both beautiful and dustproof.
3. 8-tool carousel magazine can automatically change tools to realize more complex works.
4. The 11kw liquid cooling spindle can rotate for fast 3d engraving.
5.The spindle is equipped with a dust cover, which can be automatically opened according to the processing status. After opening, it can collect and reduce the wood chips and dust generated during the engraving process.

Parameters

Model	EW1-5 Axis
Five-axis travel	13002500500mm
Number of tool magazines	8 pcs magazine
Tool magazine type	Beam end disc
Tool handle specifications	F63
Voltage/frequency	220V/3PH/6OHZ
Control system	Syntec 610 5 axis control system with RTCP functions
Spindle power/speed	LX500 5 Axis Head＋Italy Hiteco 11KW liquid cooling spindle 24000rpm
Inverter	Delta 15KW inverter
Drives and motors	YASKAWA Servo motors Y:1.8KW X Z:1.3KW
Bed structure	EW1 moving table
X axis reducer	Shimpo reducer
Table structure	T-slot & Vacuum working table
Transmission	Y: Taiwan TBI screw 4040 Z: Taiwan TBI screw 3210
Chassis	Rittal
Linear guide	Taiwan SHAC 30mm
X rack	Taiwan JT 2M
Lubrication system	1.5L automatic lubrication
Vacuum pump	Ribake 7.5KW double vortex pump 220V/3PH/60HZ
Chiller	Taiwan TEYU chiller CW5300BI 220V/1PH/60HZ
Tool setting	Automatic tool setting

5 Axis CNC Router Optional Parts

Application

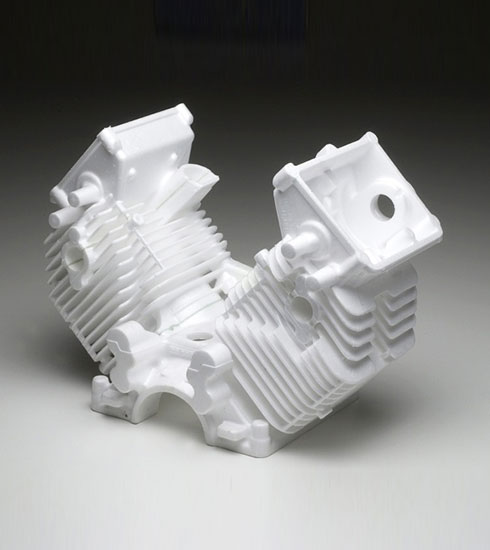

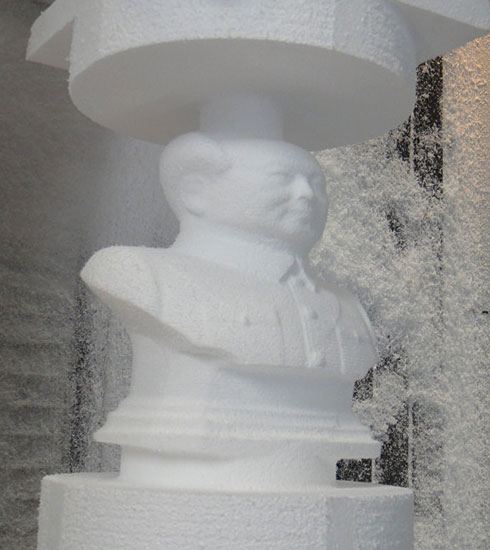

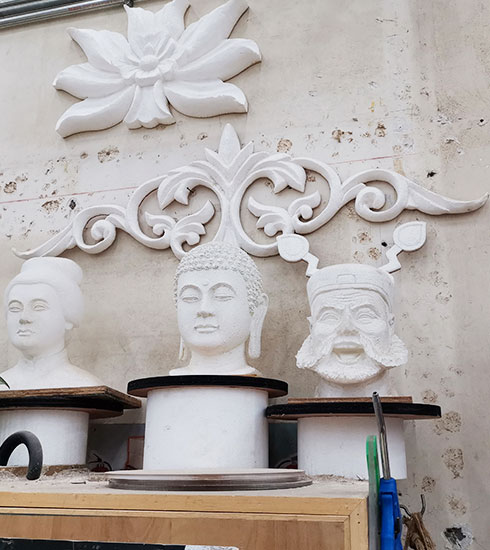

The five-axis CNC machining center is a high-precision, high-efficiency CNC machining tool with the ability to process simultaneously in multiple axes. It can process workpieces in different angles and directions, so as to achieve more complex part processing and higher processing accuracy. Such as complex surface processing, multi-angle hole processing, complex three-dimensional parts processing, high-precision parts processing, etc.

Review

All very well, did the first job. The machine made the facades for the kitchen. The work was done quickly and efficiently. Next time I work, I’ll take photos and videos for you. I’m very glad to choose your company, thank you again for your worry.

I got the machine in a very good condition. Thank you so much. Now I have some things to finish in my workshop before starting to connect and use it. I will comeback to you with more photos and my first comments in few days. Thanks again to Blue Elephant that made my dream come true.

We have tested the machine, it’s working properly. We are planing to purchase the second one, please send PI. Thanks very much.

So far so good. The machine arrived in perfect condition, it was packed very nicely. Cutting an oval coffee table, 45000 years old swamp Kaurin and resin. Worked beautifully.
