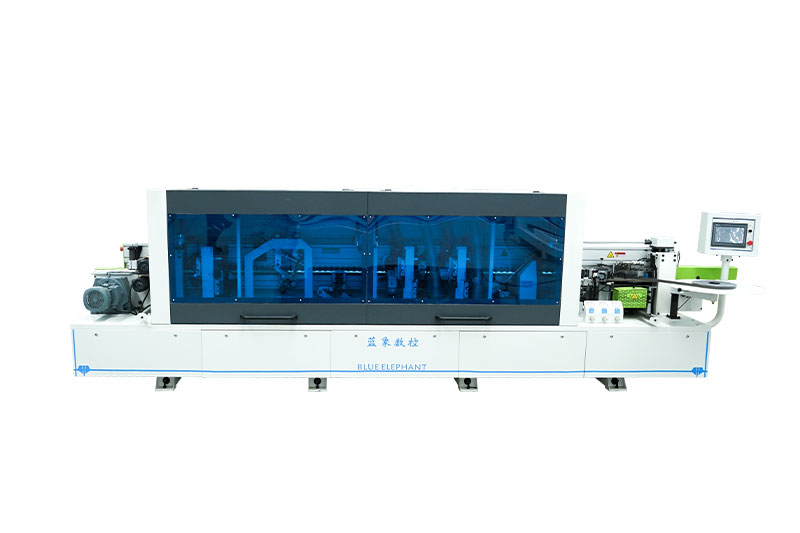

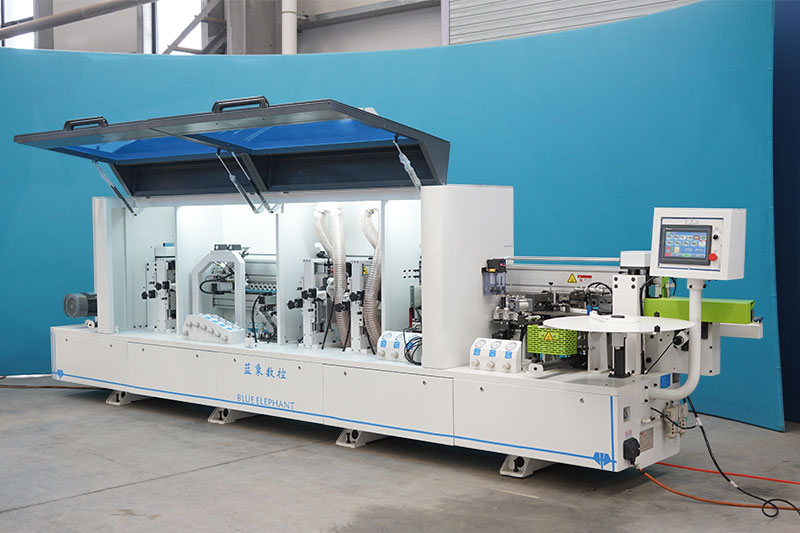

As a cost-effective fully automatic edge banding machine, it can complete gluing, banding, edge cutting, rough trimming, fine trimming, tracking, scraping and polishing functions automatically. You can use it for banding various wooden boards, such as density boards, fiber boards, particle boards, solid wood panels, etc.
1. It can achieve the gluing, end cutting, rough trimming, fine trimming, tracking, scraping and polishing functions automatically.

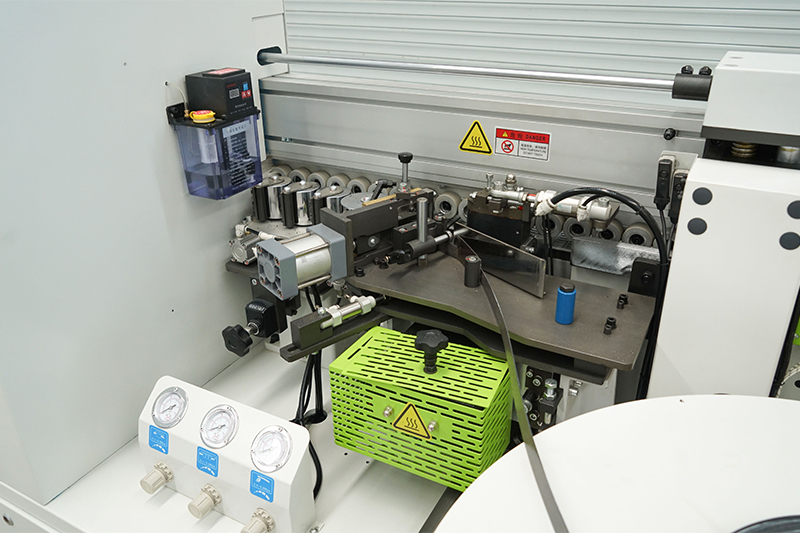

2. With high-quality WSN cylinder and EASUN solenoid valve, it applies glue in a stable and uniform way.

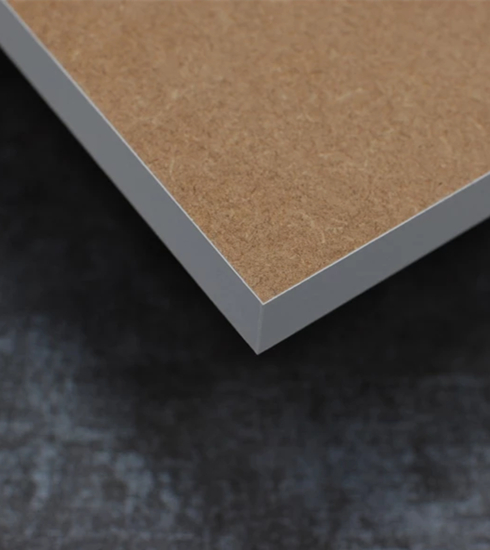

3. Profile tracking function rounds the four corners, making them more smooth and safer.
4. Automatic operation greatly improves edge banding efficiency and saves labor costs.
| Model | E-70 |
| Overall size (LxWxH) | 5840x970x1800mm |
| Working pressure | 0.6Mpa |
| Total power | 12kW |
| Feed speed | 15-23m/min |
| Electric lifting | 0.37kW |
| Panel thickness | 10-60mm |
| Panel length | ≥120mm |
| Panel width | ≥80mm |
| Edge band thickness | 0.4-3mm |
Yes, we also have automatic edge banding machine that can do both straight and curved edge banding. Contact me to know more details.
Yes, the edge banding machine need air compressor. 0.6mpa is enough for this machine.
No. 60Hz is not a problem.
