H45E Sliding Table Saw Machine for Sale

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : H45E
Category : Panel Saw Machine
Price Range : $2000 to $4000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

H45E Precision Table Saw

6132Y Sliding Panel Saw

Description

This Blue Elephant CNC board precision saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.

Features

1. The whole equipment has the characteristics of stable frame, fine manufacturing, beautiful and durable coating, which ensure that the machine runs stably with low vibration and low noise.
2. The main components, purchased parts and electrical parts are all imported international brands.
3. Push-pull slides are precise, reliable, flexible, durable, easy to maintain, and they have adjustable travel limits.
4. The operation table on the left and right sides of the saw blade has a convenient baffle and a ruler scale line for convenient and efficient cutting.

Parameters

Dimensions	32002540900mm
Sliding table size	3200*375mm
Sawtooth length	3000mm
Sawtooth width	1200mm
Sawtooth thickness	78mm
Main saw diameter	300mm
Scribing saw diameter	120mm
Main saw speed	4000/6000rpm
Scribing saw speed	7000rpm
Spindle diameter	30mm
Counter spindle diameter	20mm
Main motor power	5.5kw
Counter motor power	0.75kw
Saw blade angle	0-45°
Net weight	700/800kg

FAQ

What's the maximum cutting length of this machine?

The maximum working length is 3200mm. So you can use this table saw to cut any wood panel less than 3.2m.

Does this saw blade support cutting at any angle?

It can support 45-90 degrees cutting.

Can this saw automatically adjust the cutting angle?

Yes, It is.

Panel Saw Machine Details

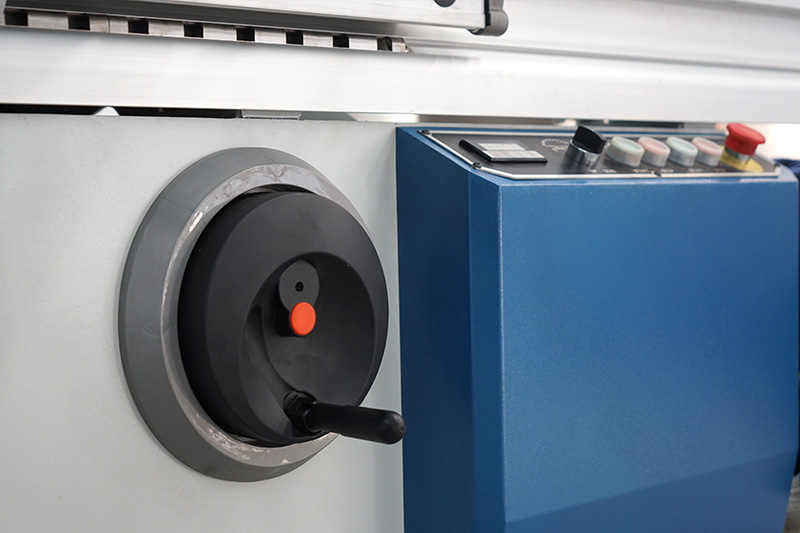

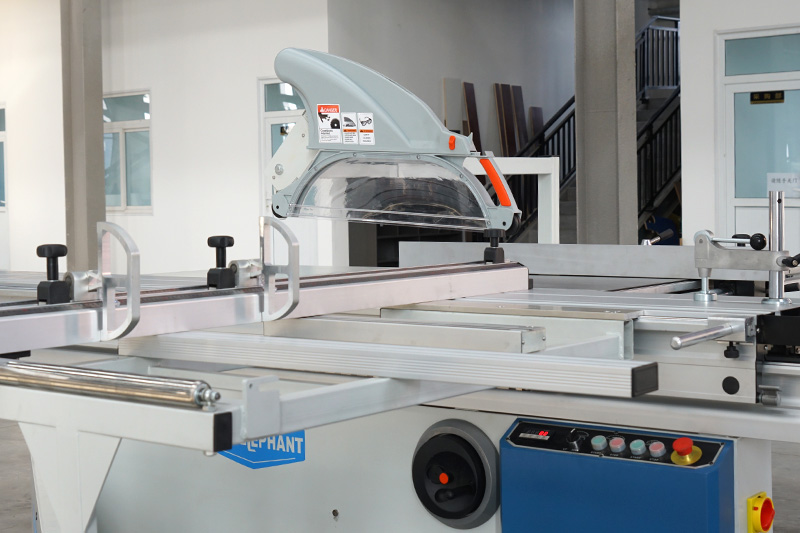

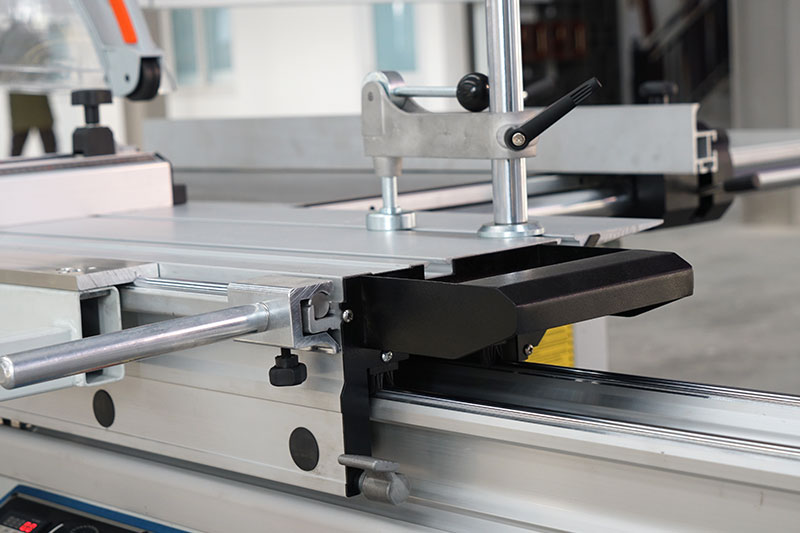

Table saw part

Application

The sliding table saw or panel saw is mainly used to cut wooden boards in the woodworking industry.It can cut various types of wood materials, like hardwood, softwood, MDF, particle boards, melamine boards, plywood, etc. Besides cutting, it can also make straight and inclined slots on the wooden boards by adjusting the angle of the saw blade.
