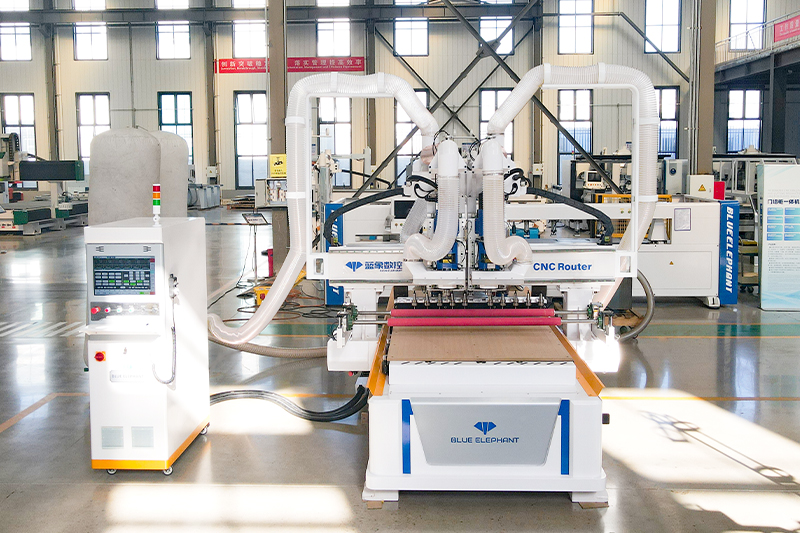

The dual-head Linear CNC machining center adds a set of 9KW tool-changing spindle heads to the traditional nesting CNC machine. The two spindles work at the same time, achieving the advantages of high efficiency, high speed and high precision.
1.The double-head woodcutting machine has built-in CAM software. When the conditions for double-head working are met, it can punch holes and cut materials at the same time, which improves the processing efficiency by 20-40% and shortens the production cycle;
2.Two sets of 9KW high-power spindles are equipped with 12-position linear tool magazines (each spindle can be equipped with 6 tools), high-speed cutting, reasonable distribution of tool magazines, and no interference with each other;
3.This nesting CNC machine supports simple board patching function, you can complete the board patching work by entering the size (only for Delta software);
4.It supports tool life management (Delta software only);
5.It supports tool break detection function (Delta software only);
6.It supports most order splitting software on the market, easy and fast docking

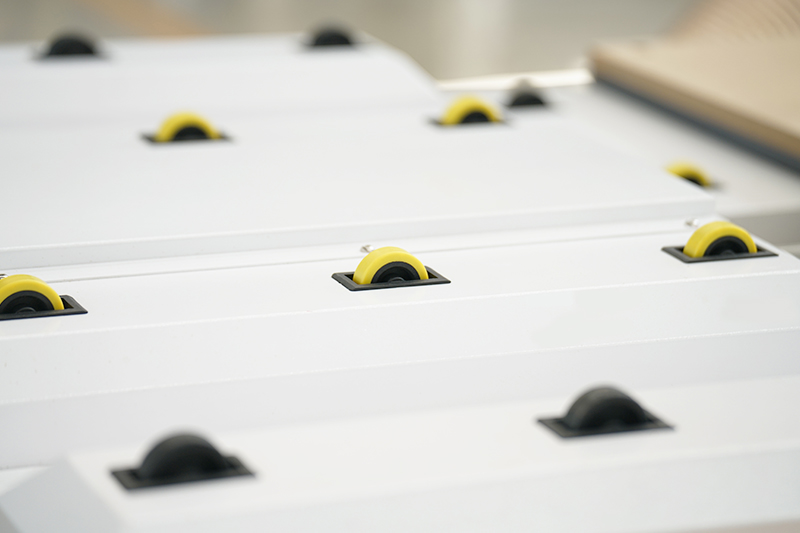

7.Equipped with a double roller device, the distance between the double rollers is reduced to avoid board running;
8.A safety anti-collision device is installed between the double heads to ensure safe operation;
9.The double heads have a compact structure, and the parts are easy to disassemble, which is convenient for maintenance and reduces maintenance costs.
| Model | EK2-1328 Double Head Linear CNC Machining Center with Auto Loading&Unloading |
| Working area(X-Y-Z) | 1300*2800*200mm |
| Table structure | Vacuum work table(7 Divisions) |

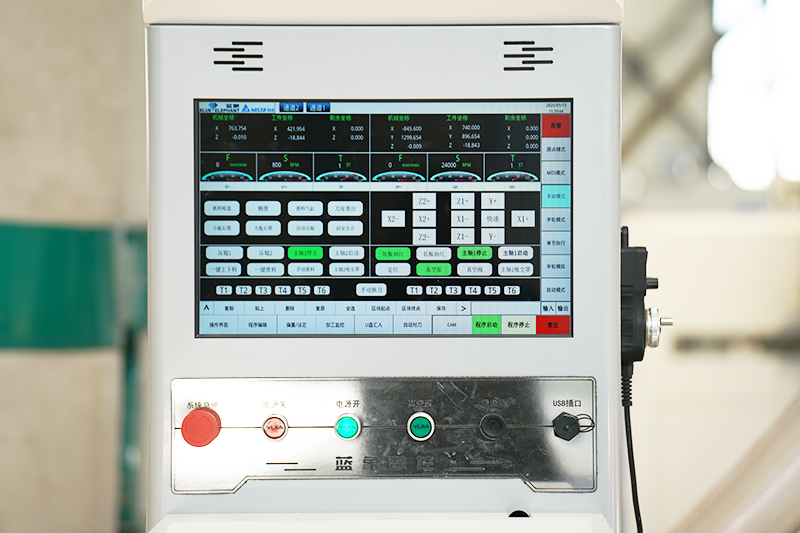

| Control system | Delta NC50E-WE dual channel and dual head, CAM software |
| Reducer | Japan Shimpo |

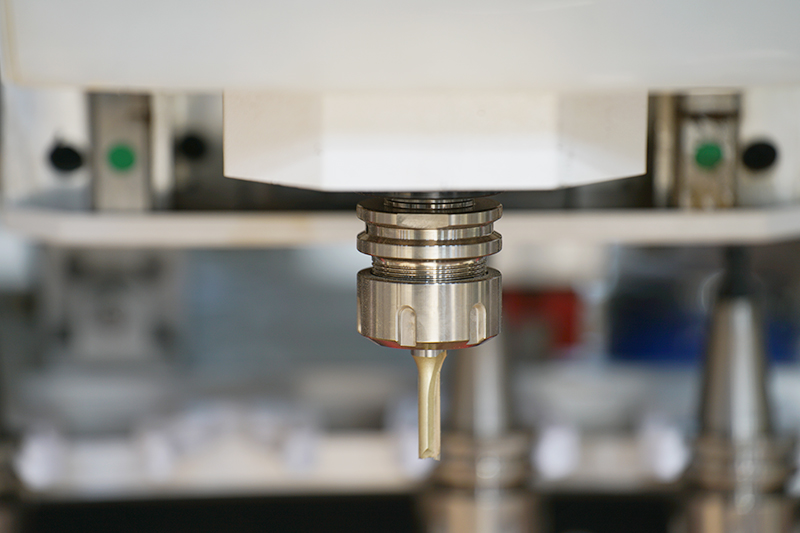

| Spindle type | 9kw JST air-cooling automatic tool change spindle*2, 24000r/min |
| Inverter | Fuling inverter H1 Series-11kw |
| Motor and driving system | Delta 850W bus absolute value |
| Guide rail | Taiwan SHAC square rail: Y 30 XZ 25 |
| Lubrication system | Automatic lubrication system |
| Vacuum pump | DN65 interface, 11kw water circulation vacuum pump 380V, 3ph, 50HZ |
| Positioning cylinder | 6 (Y4＋X2) |
| Tool calibration | Fixed tool sensor |
| Voltage/Frequency | 380V/3P/50HZ |
| Chassis (type, color) | Rittal |
| Rack/Module | PCRCH 2 module helical rack |

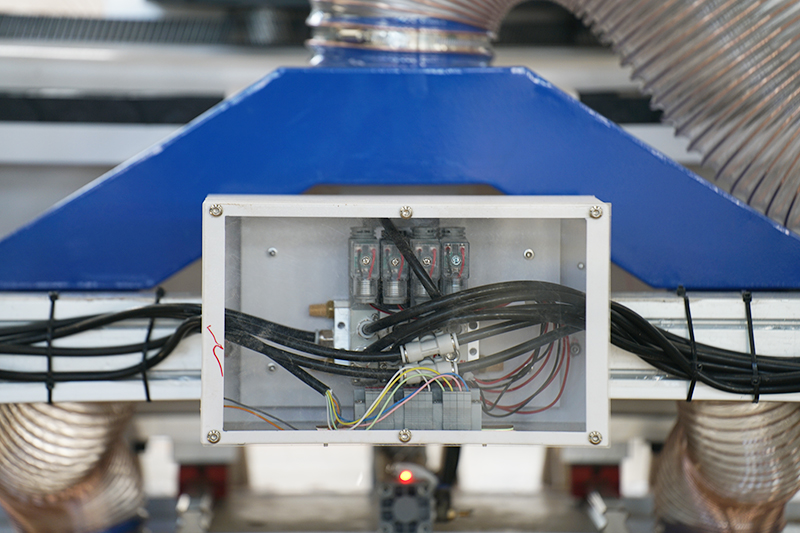

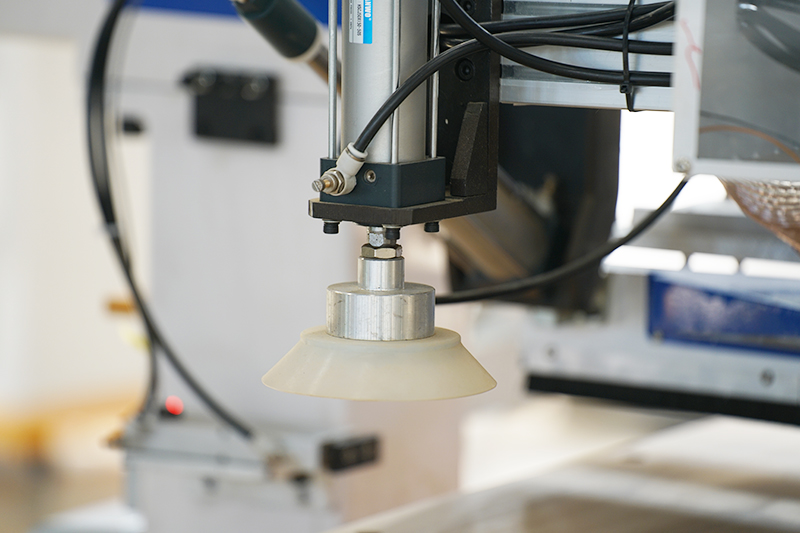

This machine mainly includes dual heads, 12 linear tool magazines (6 knife positions per head), automatic loading device (suction cup) + horizontal dust-free cutting hood + small spacing roller + dual-head cutting machine CAM software.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve the problem. In addition, we also provide you with teaching videos and manuals.
This wood cutting machine is equipped with an automatic lubrication system and does not require manual maintenance.
