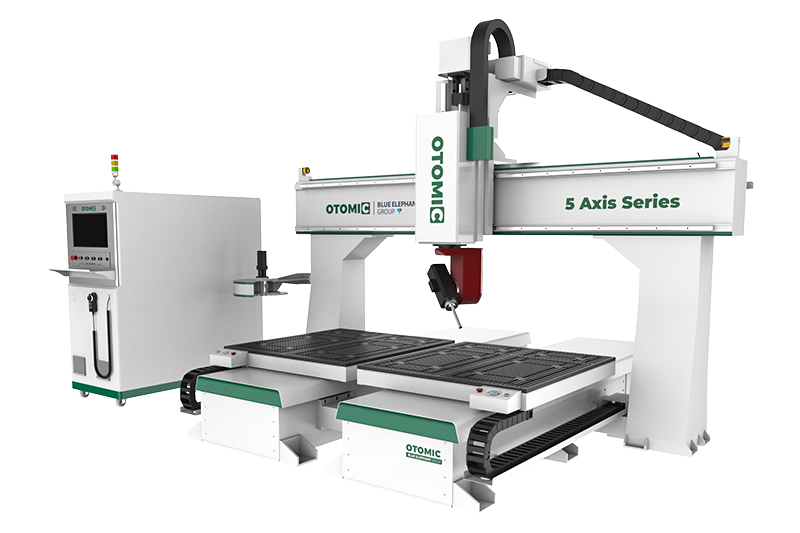

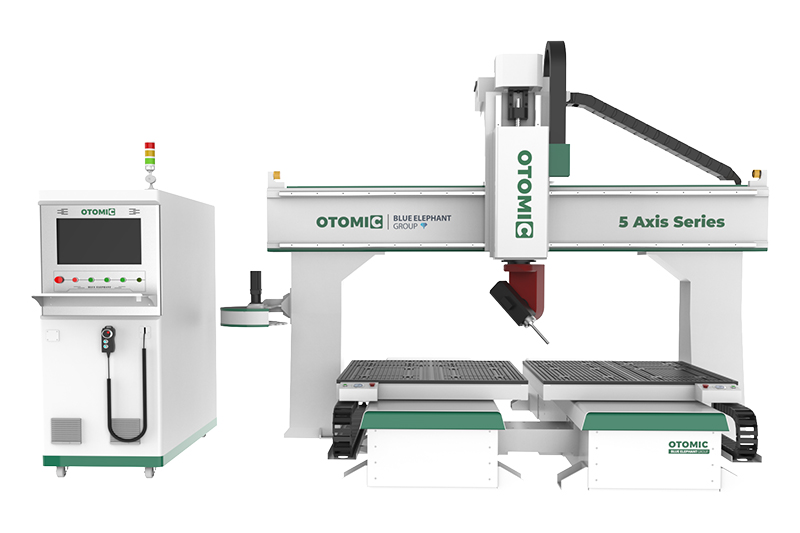

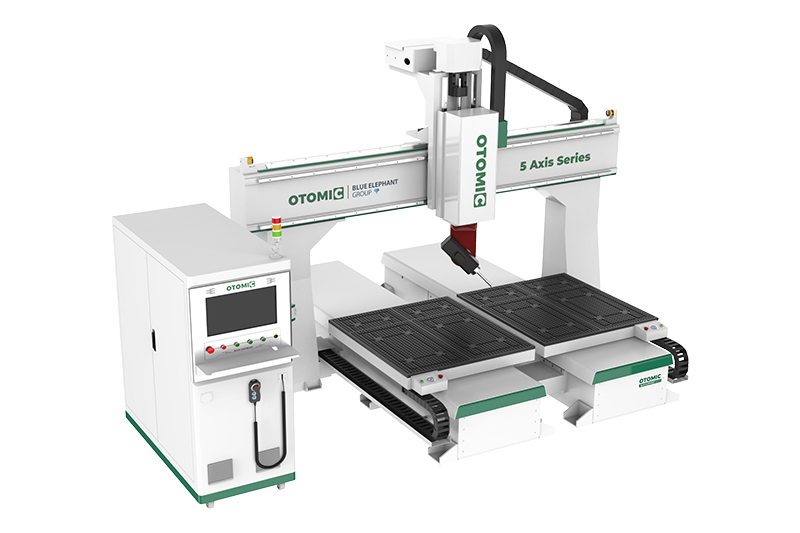

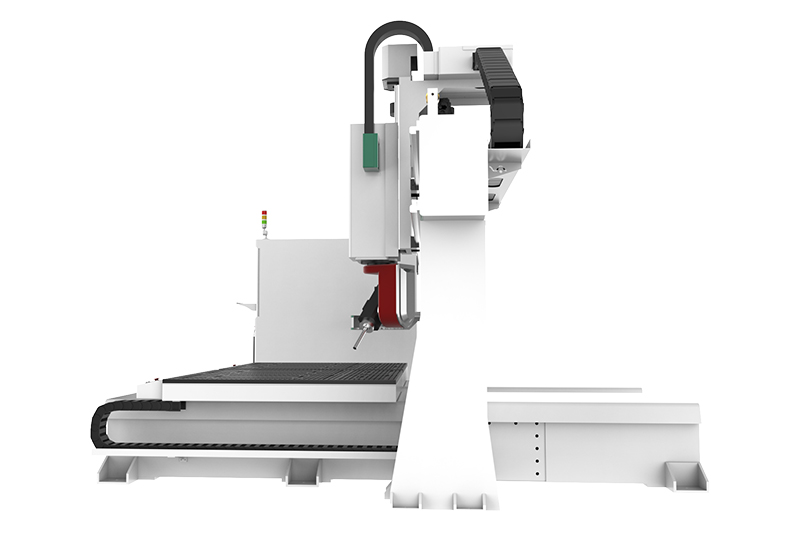

EW1 5 Axis CNC Router with Two Tables

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : Omic EW1
Category : 5 Axis CNC Router
Price Range : $65,000 to $85,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Powerful 5 Axis CNC Machining Center

Industrial 5 Axis CNC Router Machine

Description

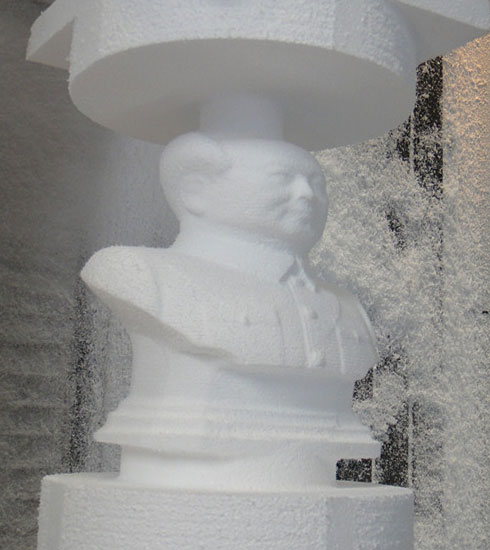

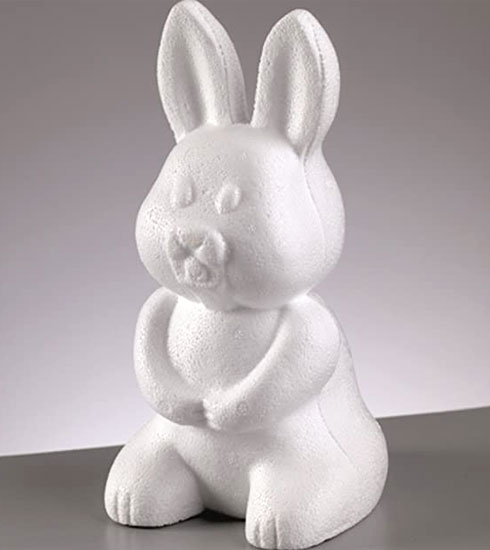

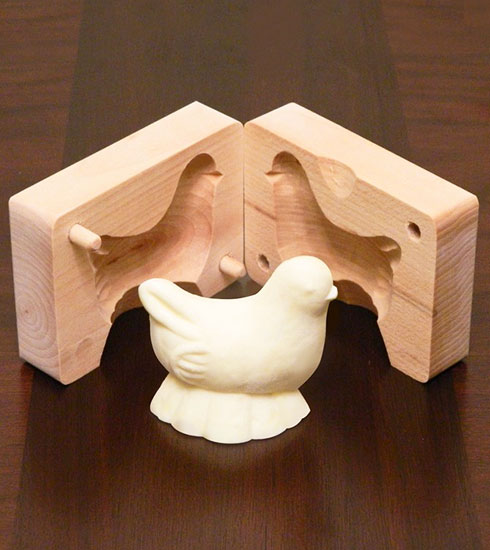

This two-worktable 5 axis CNC router machine can reduce non-productive time by processing at one table while unloading at the other. This greatly improves work efficiency. It is widely used to process 3D wood, foam, and plaster molds, statues, and parts.

Features

1. All components are from international famous brands, which greatly extend the life service of the machine.
2. Two movable working tables can realize simultaneous processing and loading & unloading, which greatly saves loading and unloading time and improves work efficiency.
3. With a carousel tool magazine, this CNC router can change tools automatically, extending the processes and increasing work efficiency.

Parameters

Model	Omic EW1
X,Y axis travel	1200X1200mm
Z axis travel	500mm-700mm
Spindle type	10kw-12kw water cooling ATC spindle，24000RPM
Inverter type	15kw Taiwan Delta inverter
Tool magazine	Carousel tool changer with 8/12pcs magazine
Tool holder with collet	HSK F63 tool holder
Control system	Syntec 610-E5 5 axis control system with RTCP functions
Driving system	X, Zaxis 1.3kw Y axis 1.8kw Japan Yaskawa servo motors
Reducer	Japan Shimpo
Machine structure	Heavy duty body with quenching treatment
Work table	Removable working table
Linear guide	X axis: Taiwan 30# Linear guide Y axis: Taiwan 30# Linear guide Z axis: Taiwan 30# Linear guide
Transmission	X axis:Taiwan Linear Grinding grade racks M2-1000 Y axis:Taiwan TBI Grinding grade screw, 4040-3100 Z axis:Taiwan TBI Grinding grade screw, 3210-1300
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Powermill software
Command language	G Code
Traveling speed	80m/min
Working speed	0-60m/min
Working voltage	380V 3PH 50HZ/ 60HZ（220V for option）

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type
Air Compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
table type	Vacuum table

FAQ

1. What material can be engraved?

Wood, foam, MDF, or other materials.

2. What are the advantages of this two-table 5 axis machine?

It adopts the fixed-gantry and movable table structure, and the two worktables can move back and forth during the machining process. This helps ensure that all side surfaces can be processed.

3. Can the tool change automatically?

Yes. It is equipped with a carousel tool magazine, which can hold 8 different functions tools.

5 Axis CNC Router Details

Application

INDUSTRIES
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove.

In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.

MATERIAL
Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones
Soft metal: aluminum, brass, copper, mild steel
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
