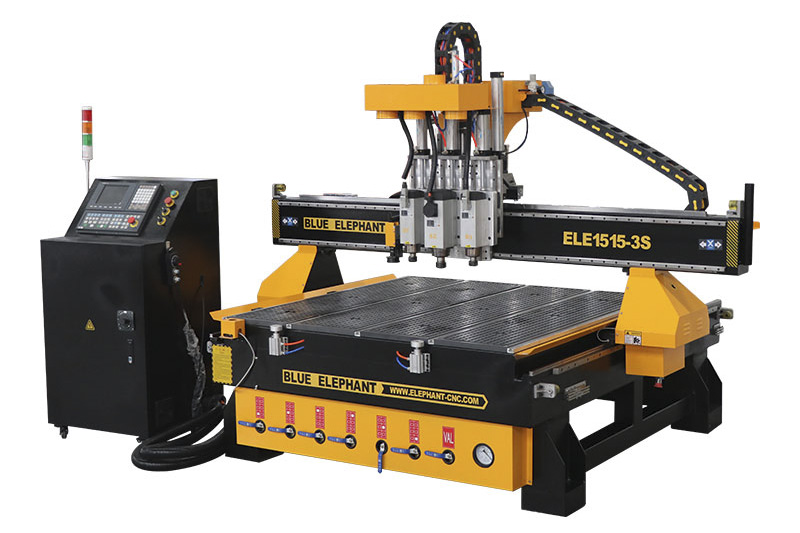

1515-3S CCD Camera CNC Router with 3 Spindles can not only patrol cut but also engrave, drill and mill wood works. So it is suitable for diversified processing needs. The machine is equipped with 3 machining spindles. Different spindles can be automatically switched according to the machining requirements, thus greatly improving the user’s machining efficiency.
1. Using the new generation CCD, it can scan the marking points quickly and efficiently, and effectively improve the processing efficiency.
2. Equipped with 850W Leadshine servo motor, it has the features of high power and high precision.
3. Manufactured with the large square tube bed, it is more stable and guaranteed accuracy.
4. With the positioning cylinder, it is convenient to place and position materials, suitable for batch processing.
| Model | ELECNC1515-3S+CCD |
| X,Y axis travel | 1525*1525mm, option: 1300*2500mm; 1500*3000mm, 2000*3000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 6KW HQD spindle*1, 3.5KW HQD spindle*2, 18000rpm |
| Inverter type | 7.5kw |
| Tool magazine | No tool magazine |
| Tool holder with collet | ER32 collet and ER25 collect: φ4, φ6, 1/8, 1/2 |

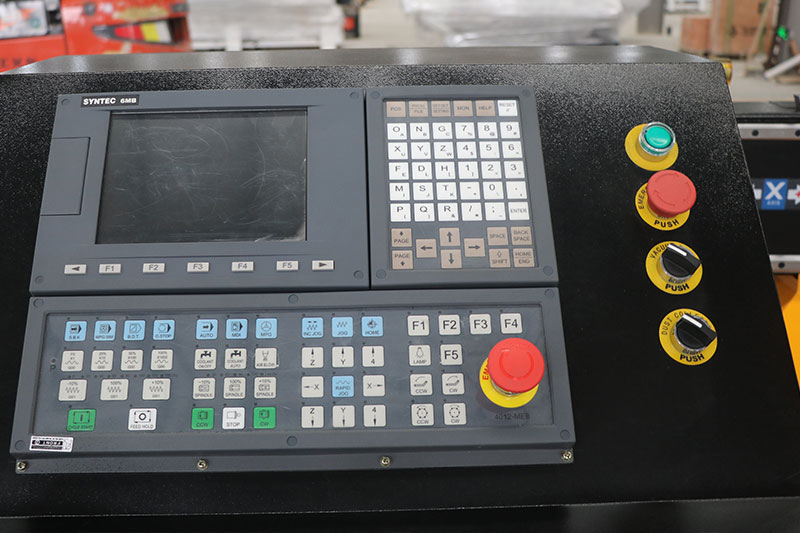

| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 850w Leadshine AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Optinal |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

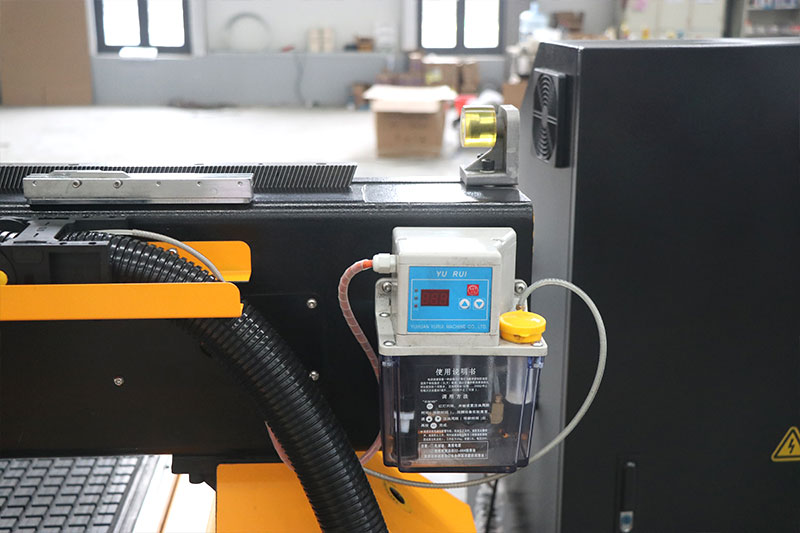

| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc |
| Command language | G Code & M Code |
| Traveling speed | 50m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 300mm |
A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.

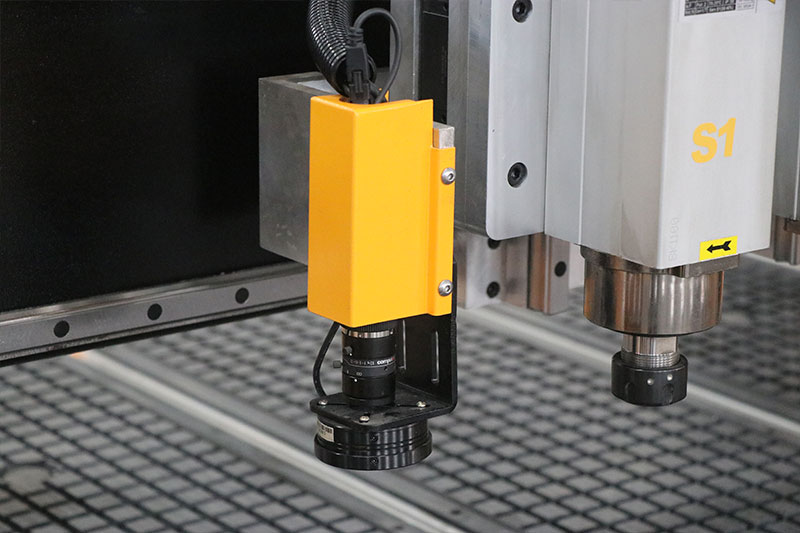

CCD camera used on pre-painted patterns,for scanning the mark,automatic edge search, positioning, and cutting.

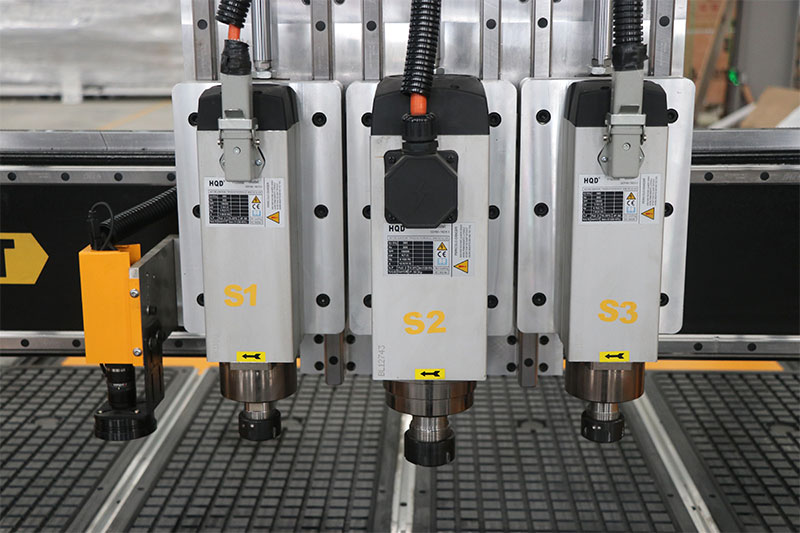

They work one by one, and can be used to complete different processes, like simple tool changer. For example, one for cutting, one for engraving, and one for drilling.
