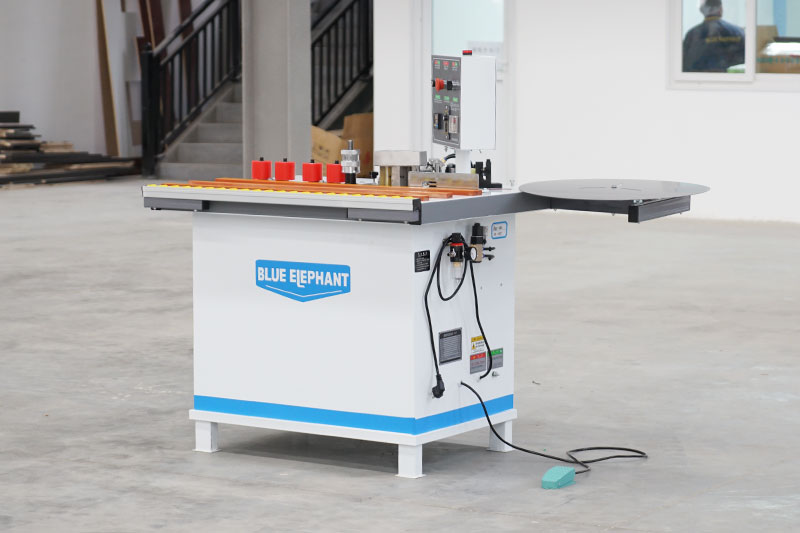

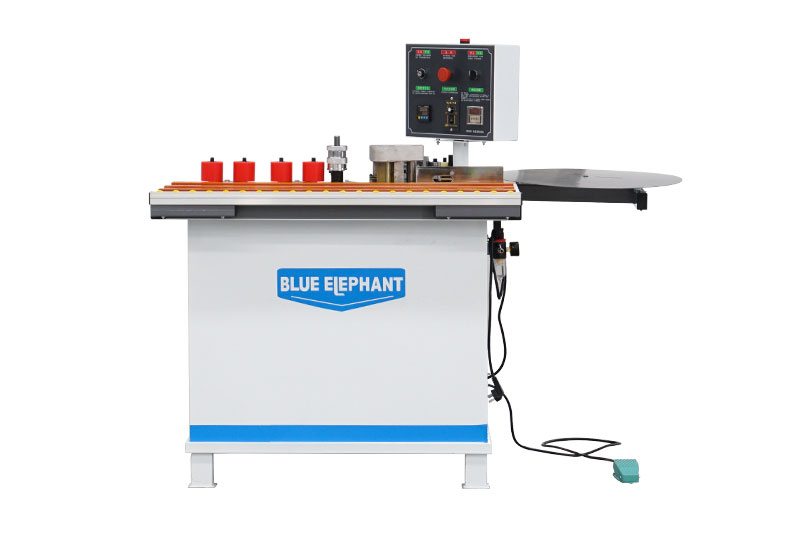

This kind of special-shaped edge banding machine for small shops does not have to worry about insufficient glue supply and glue glue problem of the glue tank edge banding machine. The gluing layer adopts a plate-type quick positioning design to achieve ultra-thin edge banding.
1. The manual edge banding machine gives more flexibility to the banding process, which is accurate and convenient.
2. It can complete the banding work for both straight and curved edges with good quality.
3. This edge banding machine has no limitation to the panel length, so you can use it to band wooden panels of various length and width.
4. It is very cost-effective and the best affordable banding machine for small businesses.
5. The types of edge banding materials include PVC, veneer, melamine, plastic,etc.
| Voltage | 220V, 50hz |
| Total power | 1.2kw |
| Air pressure | 0.3-0.6Mpa |
| Motor power | 0.18kw |
| Heating power | 1.0kw |
| Edge width | 8-50mm |
| Edge thickness | 0.3-3mm |
| Edge speed | 0-26cm/s |
| Dimensions | 100*75*100cm |
| Weight | 120kg |
Standard voltage is 220V, 1ph, and 50Hz. We can also provide 220V, 3ph, and 60hz, or 380V.
Yes, it can band both curved and straight edges.
No, it doesn’t have any limit on the wooden panel length.
