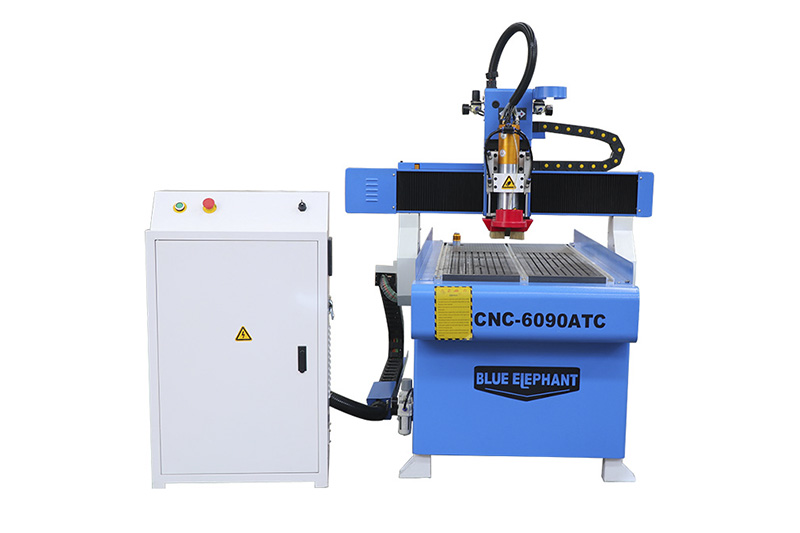

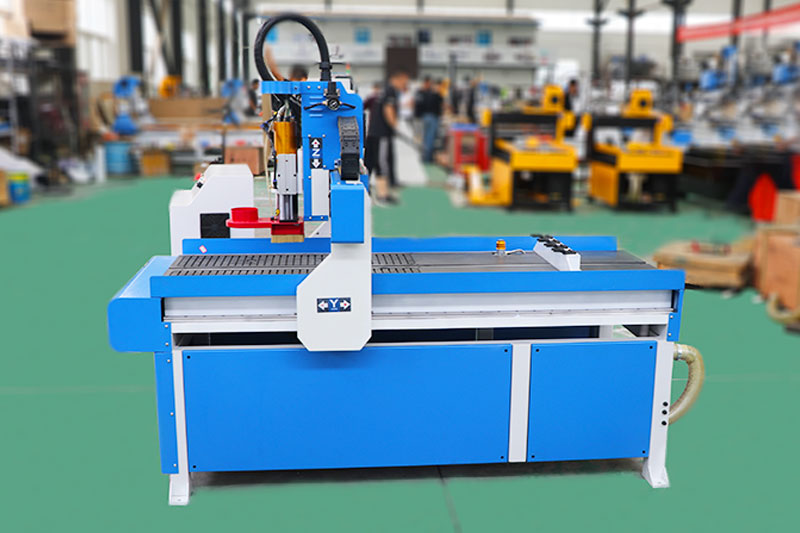

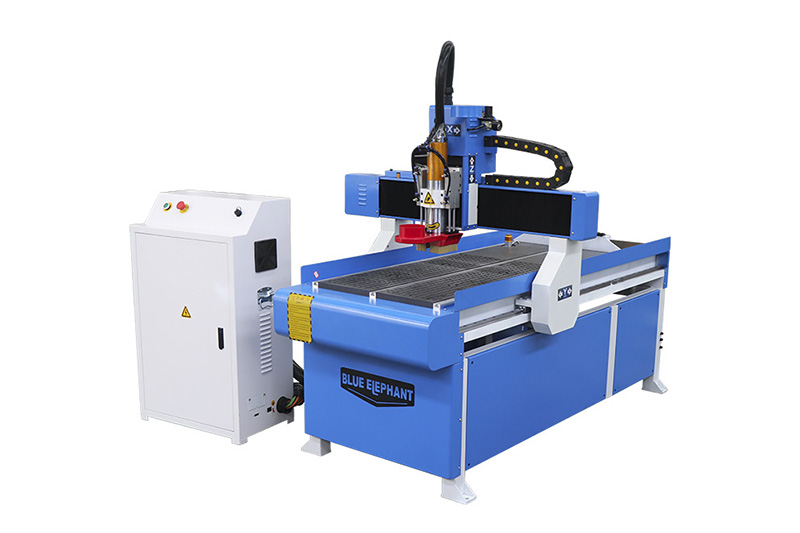

This is a mini CNC machine with automatic tool changer function. Adopting the linear tool changer, it can realize fast tool changing in a few seconds, which greatly improves the production efficiency.
1. Materials that can be processed include acrylic, two-color board, PVC, ABS board, stone and other materials.
2. With a small footprint, it makes the machine more convenient to use and is especially suitable for the processing of small workpieces.
3. This cnc router tool changer adopting the linear tool changer with fast speed cnc tool change, which greatly improves the production efficiency.
4. Mini cnc machine the first choice for processing all kinds of signage fonts, various types of logos and trademarks.
| Model | ELECNC-6090ATC |
| Working area | 600*900*160mm |
| Spindle | Xuchang water cooling spindle |
| Inverter | Fuling inverter |
| Tool magazine | Linear tool changer with 4 pieces |
| Control system | NK105 control system |
| Motor and driver | Leadshine servo motors and drivers |
| Working Table | T-slot & Vacuum working table |
| limit switch | Japan OMRON limit switch |
| Frame structure | Frame structure with six legs |

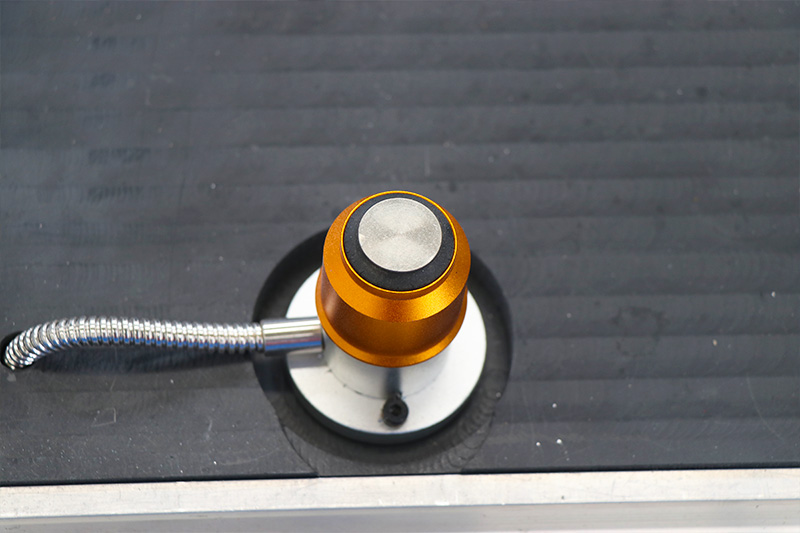

| Tool sensor | Auto- tool sensor calibration |
| Limit switch | Japan OMRON |
| Machine structure | Heavy duty body with quenching treatment |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible Software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command Language | G Code & M Code |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC air cooling spindle (ISO30), etc. |
Artcam/Aspire/Fusion 360/Alphacam/Ucancam, etc. As long as your software can generate G code, it can use on our CNC machine.
No, this machine adopts a handle control system. There is no need to connect with computer to operate it.
Yes, rotary device is used for carving cylindrical pieces like table legs, chairs, etc. We provide rotary devices with the diameter of 100mm, 200mm, 300mm, and 400mm.
