Description

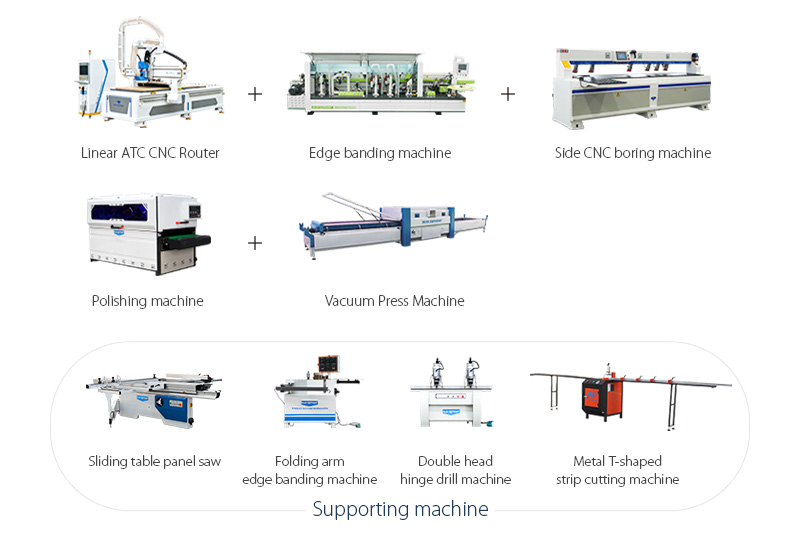

This panel furniture cabinet production line solution mainly consists of linear ATC machining center, edge banding machine, side drilling machine, polishing machine, laminating machine, precision saw, folding arm edge banding machine, double-spindle hinge drill and metal strip cutting machine. The solution can meet the production and processing of whole-house custom manufacturers with flexible machine combinations and versatile processes, and create an automated production model that meets the needs of customer’ entire factories.

Features

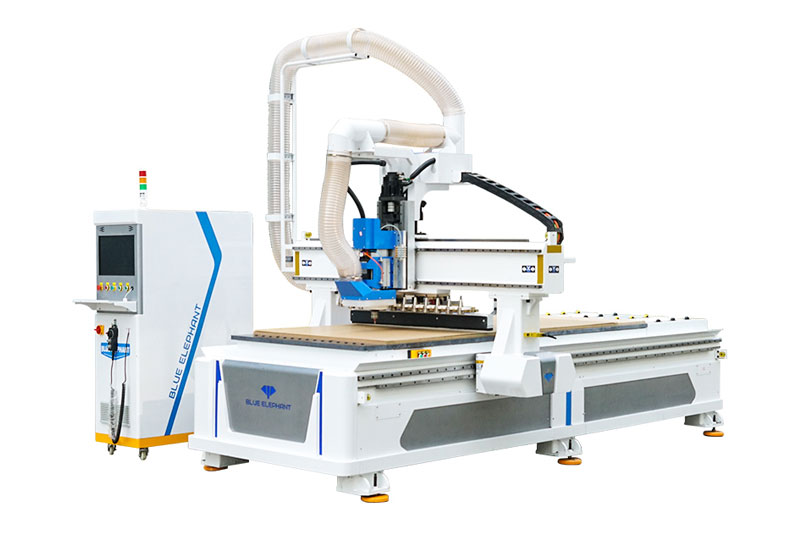

Linear ATC machining center

Introduction: The linear ATC machining center can engrave the furniture, wooden doors, cabinets, tables, chairs and other wood workpieces. The machine is equipped with an independent tool magazine. So it can change tools automatically in the course of processing without stopping the current work.

Features:

• It is suitable for complex and diversified production and processing work, such as drilling, cutting, side milling, beveling etc.
• All mechanical and electronic parts of this machining center adopt internationally famous brands.
• The automatic tool changer with 12 tools ensures fast tool changing and high efficiency.
• Strong software compatibility.

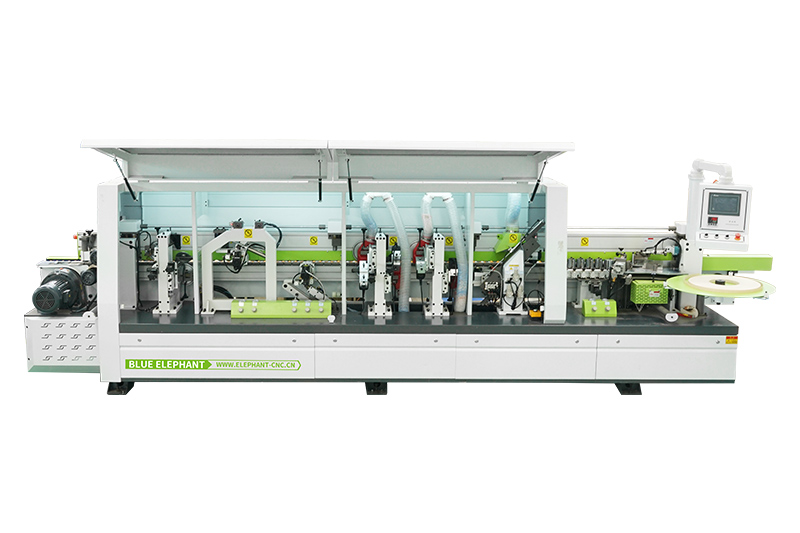

Edge banding machine

Introduction: The edge banding machine is widely applied to customized furniture, cabinets, tables & chairs, windows & doors, wood products and decorations. It is able to process a variety of panel materials. Common materials include density fiberboard, ecological boards, composite boards, particle boards, plane

Features:

• Functions: gluing and pasting → aligning head and end → rough trimming → fine trimming → edging → polishing.
• Gluing and pasting: the cylinder-controlled gluing switch (which adopts WSN cylinder and EASUN solenoid valve) ensures stable gluing amount and uniform thickness.
• Aligning head and end: it can cut the excess edge band at both ends of the sheet (WSM cylinder with 2 regulators and 1 pressure relief valve) for more stable air pressure and more stable flush end.
• Rough trimming: this machine can eliminate excess edge band with six-edge alloy plain cutter.
• Fine trimming: it is able to cut the excess edge band with six-edge R-shape cutter into round corners, gaining more beautiful appearance.
• Profiling tracking: the machine can trim the four corners to make them more smooth and not stinging, and the independently designed tracking action and airway design make the profiling more stable.
• Edging: the super-hard alloy R-shape cutter is able to slick the cracks on edge bands, making them more smooth.
• Polishing: the buffing wheel can polish the edges of the edge bands rapidly to make them more rounded and pretty.

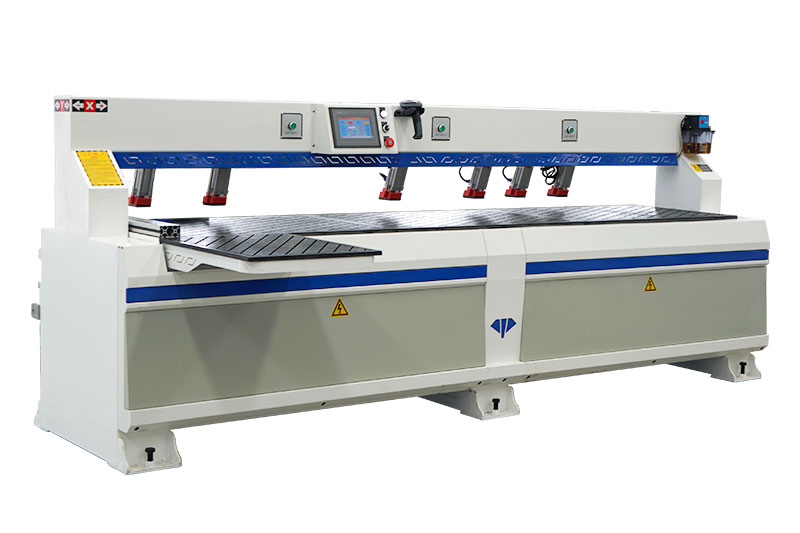

Side drilling machine

Introduction: The side drilling machine is designed for panel furniture and cabinets, such as wardrobes, closets. It is capable for the side drilling work of three-in-one side holes/wood pinholes/blind holes/fixed groove/straight slot/four invisible parts.

Features:

• With smart drilling, it has no need to pay attention to the panel size; and it can judge the drilling position by accurate positioning with laser canning.
• Customized limit switch, protects human safety.
• It can drill holes immediately after the panel is put on the machine, without swiping bar code, which is more quick and convenient.
• Free switching among multiple drilling modes is allowed to meet various processing requirements.

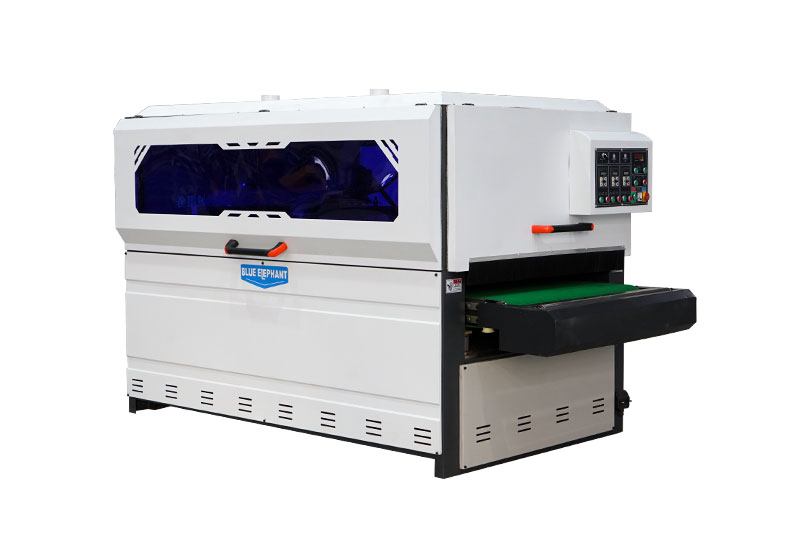

Polishing machine:

Introduction: The polishing machine is used for rough and fine sanding, buffing and polishing. And it can process the side surface, anisotropic surface, plane and curve surface of straight, L-shaped wood boards and door panels of various materials. Commonly used materials include solid wood, density fiberboard, tinplate etc. It is the ideal equipment for anisotropic polishing processing for doors, windows, cabinets and other furniture.

Features:

• It is suitable for surface processing of wood products, mainly for work blank sanding and primer polishing of wood products.
• Frequency conversion speed regulation is adopted, so the speed can be freely adjusted to select the appropriate feeding speed to ensure the quality of the workpiece polishing.
• The abrasive roller consists of sisal brushes and gauze. Various combinations of gauze and brushes are available, and the gauze and brushes can be replaced separately to save costs.

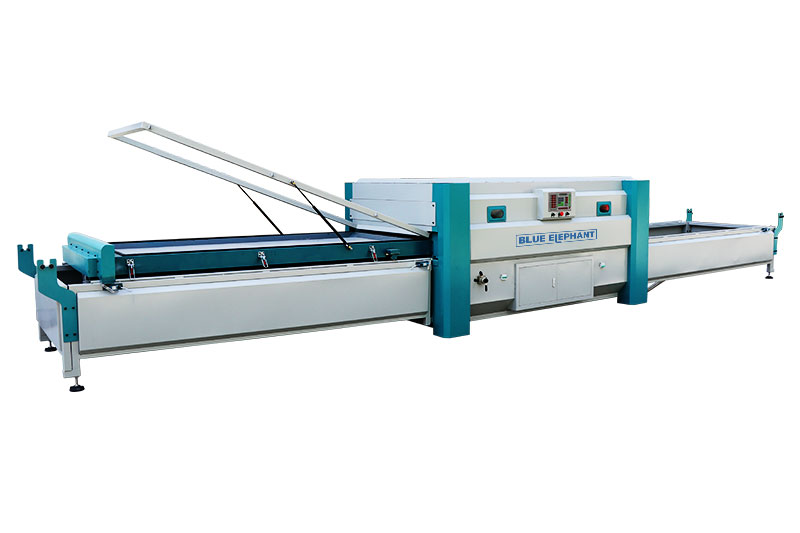

Vacuum press machine

Introduction: The vacuum press machine can paste various PVC films on furniture, cabinets, speakers, paint-free doors and other materials in three dimensions. And you can use it for thermal printing film and single-sided solid wood veneer after the addition of silicone plate.

Features:

• The machine body is welded with high quality steel, and the force points are calculated strictly, which ensures stability of the machine and avoids deformation.
• The microcomputer temperature controller adopted in the heating system, which is automatically controlled according to the temperature change, can adjust the heating speed to control the temperature.
• With automatic digital display technology, the whole machine has a high degree of automation, simple operation and low failure rate.

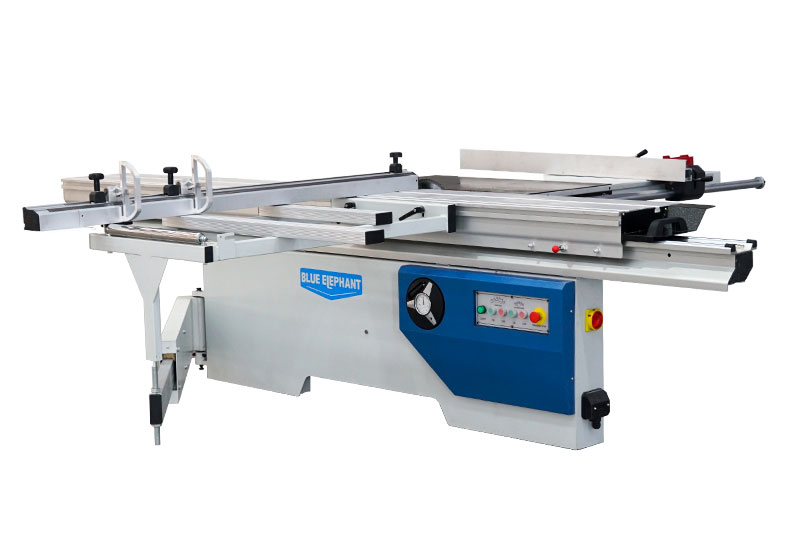

Precision saw

Introduction: Precision saw is used for the longitudinal sectioning and cross-cutting work of various materials. It can process density fiberboard,  ABS boards, PVC boards, PMMA, solid wood panels and other panels with similar hardness.

Features:

• European guiding rule can avoid displacement and ensure precision of panel cutting.
• Movable worktable is made of extruded aluminum alloy with high strength and no deformation.
• Extended and enhanced machine body ensures the machine stability during working.

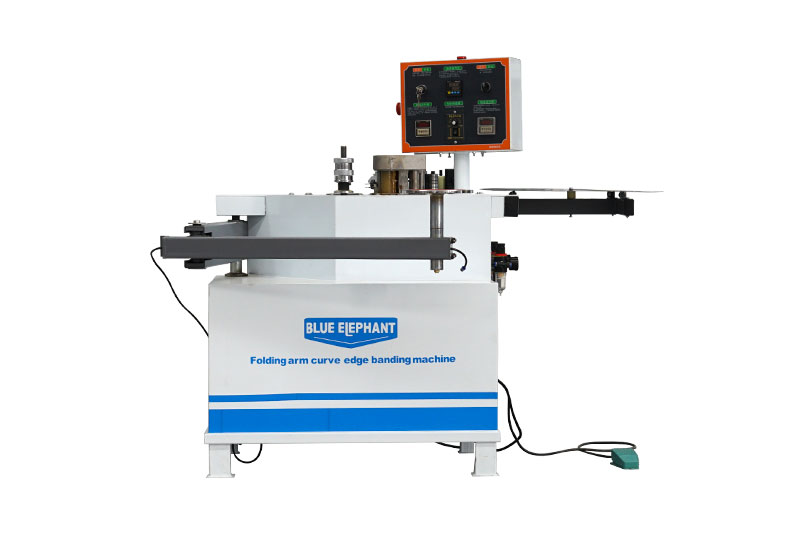

Curved and straight edge banding machine

Introduction: The curved and straight edge banding machine is applicable for the banding work for straight and irregular edges of the panels.

Features:

• Flexible switching between curved and straight edge banding mode is allowed without interference and misoperation, which is accurate and convenient.
• With a limit switch, the machine can be shut down automatically.
• It is capable for processing such materials as: PVC, wood veneer, melamine, plastic etc.

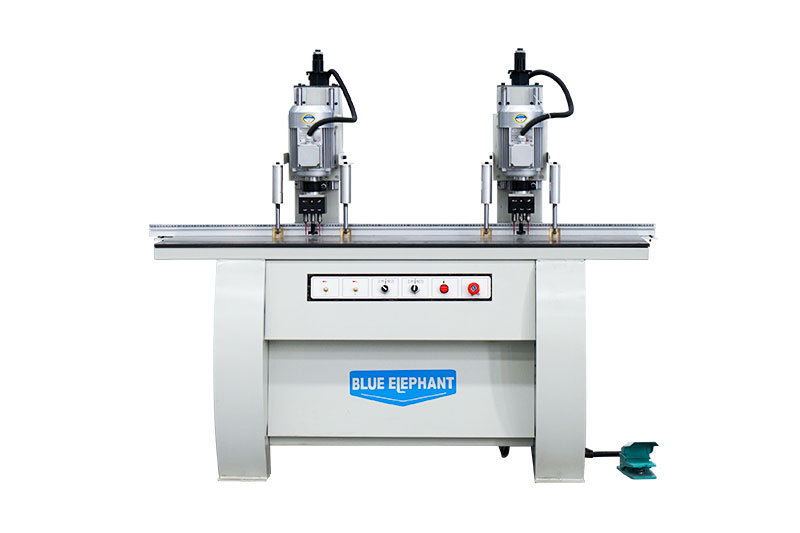

Double-head hinge drill machine

Introduction: This machine is mainly applied to the boring of furniture door hinges.  It can process cabinet doors, wardrobe doors, office and household furniture doors. In addition, it is able to adjust the boring position both longitudinally and horizontally to meet boring requirements quickly and easily.

Features:

• The drill package design ensures small noise and durable use.
• A positioning baffle and an accurate scale are adopted, which can be adjusted based on work demands.
• Controlled by a foot switch, it is convenient and labor saving.
• Multiple functions, and it is adaptive to multiple types of drill heads.

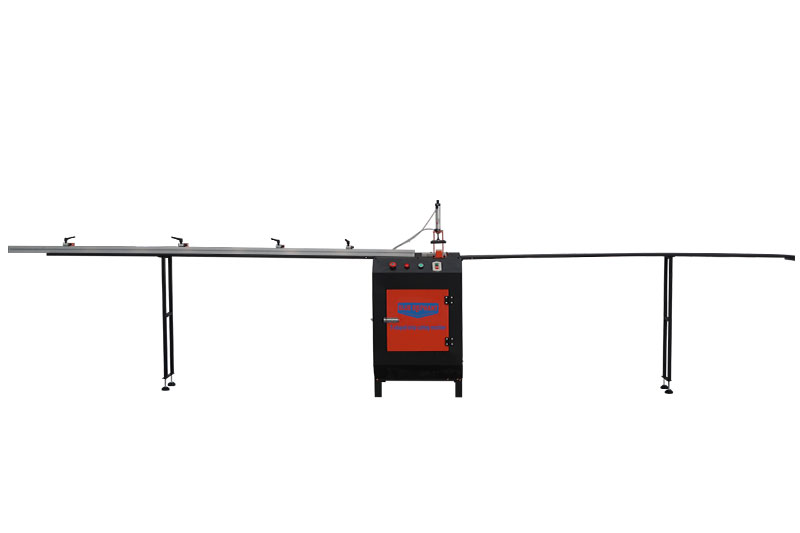

Metal strip cutting machine

Introduction: The metal strip cutting machine is mainly designed for new Chinese style door panel inlay. And it can cut metal strips off directly or cut continuously without breaking.

Features:

• One-touch start button switch.
• Foot pressing mode without hand pressing.
• Automatic pressing and cutting function.
• Save time, labor and cost.
• Precision alloy saw blade adopts hardening process, ensuring long service life.
• The saw teeth are isosceles and right-angled, and can cut accurately without error, and the saw blade is easy to replace.
• The extended pallet is convenient for continuous cutting and can be folded and disassembled easily.
