The panel furniture production line is the main intelligent processing equipment used by large furniture processing plants. It includes a variety of machines, and different combinations of each machine can focus on processing different furniture series. Common series include cabinet production line, blister door production line, and high-gloss door production line. This article will also start from these three series to introduce you to the CNC machinery and equipment required for furniture making.
Cabinet Furniture Manufacturing
1.Cabinet Furniture Making Process
Regarding the production of panel furniture cabinets, it is mainly composed of five parts, each part is connected before and after, and finally the production of the entire cabinet is completed.
1）Design order splitting software: Order splitting software refers to the software used by the design department to design product drawings after the company receives the customer order. The software splits the drawings and splits the entire machine into various parts, clarifies the decomposition work required for the production of parts at all levels, and connects with the production equipment to finally complete the production of the entire product. It can meet the processing needs of different types of manufacturers of different sizes. Currently, the commonly used design order splitting software includes cracked version Yunxi, genuine Haixun, etc.
2）Cutting machine: Cutting machine is an important part of furniture production process. It includes cutting, grooving, punching and other processes. The cutting accuracy and quality are closely related to the quality of finished furniture. The most frequently used cutting machines in the production line of panel furniture cabinets are four-step cutting machines and inline tool change processing centers. These two types of equipment are fully functional, efficient and highly configured, ensuring the processing quality of the panels.
3）Edge banding: At present, large and medium-sized furniture manufacturers often use fully automatic edge banding machines for processing and production. The main functions include pre-milling, gluing, edging, head and tail alignment, rough trimming, fine trimming, contour tracking, scraping, polishing, grooving, etc. The machine is stable, reliable and durable.
4）Side hole punching: After the edge banding is completed, the side hole can be punched. At present, the common side hole machines include single and double spindle side hole machines, mortise and tenon side hole machines, saw blade side hole machines, laser side hole machines, etc. The machines run stably and punch holes efficiently.
5）Assembly: The cabinet assembly mainly uses the linking process. The common connectors are Lamino invisible connectors and three-in-one invisible connectors. Traditional custom furniture installation mostly uses three-in-one connectors. The three-in-one connector can be disassembled and assembled multiple times, does not require the use of adhesives, and is easy to install and maintain. Lamino invisible connectors have high requirements for cutting machines, the side hole process is more complicated, and the cost is correspondingly higher.
2.Cabinet Furniture Making Machines
In the previous part, we have briefly understood the process of the panel furniture cabinet production line. Here we will take a look at the equipment used in each process.
Cutting Machine
The cutting machine is the best furniture manufacturing machine for furniture manufacturers. The cutting machine can be used for cutting, drilling, punching, grooving, engraving, etc., with complete functions. There are many types of cutting machines, and different cutting machines are used for different processing. At present, the common cutting machines include four-process cutting machines, straight-row machining centers, Lamino cutting machines, disc tool change machining centers, double-process plus row drilling cutting machines, and Lamino plus row drilling cutting machines.
4-Processes Cutting Machine
The 4-processes cutting machine is an economical entry-level machine for panel furniture woodworking cutting machines. It has low procurement cost, complete functions, simple operation, and can be installed with four different tools. At the same time, the failure rate is low, and a single spindle failure will not delay processing and production. However, the processing efficiency of the 4-processes cutting machine is low, and the tools need to be replaced and set frequently, and the efficiency is far lower than that of the machining center with automatic tool change.

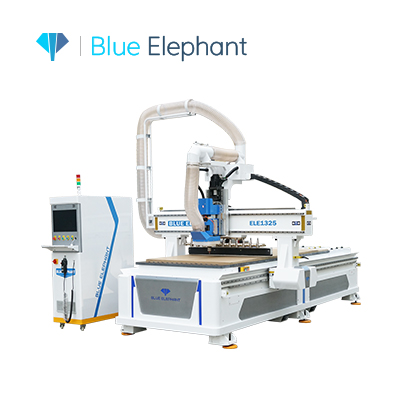

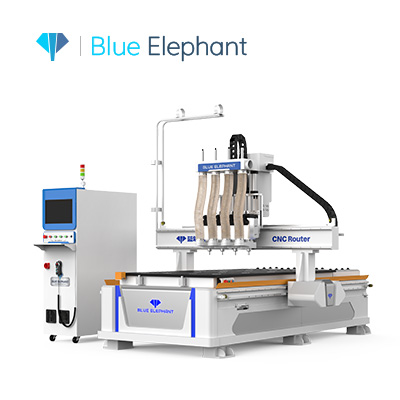

This 4-processes cutting machine of Blue Elephant is equipped with an automatic loading and unloading device, which makes up for the shortcomings of the traditional four-step cutting machine to a certain extent; it is also equipped with Taiwan SYNTEC controller to achieve fast file reading and fast machine operation.
Linear ATC CNC Machining Center
Linear ATC CNC machining center is a CNC cutting machine that can automatically change tools. It is equipped with 12 tools as standard and can process cabinets and door panels. It is widely used in more complex processing procedures such as door panel pattern carving.

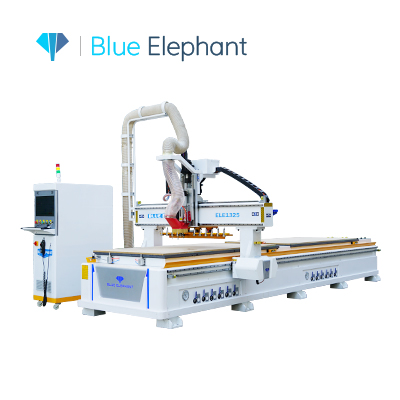

The following machine uses double-station processing and is equipped with an automatic loading and unloading platform to increase production efficiency by 30%-40%. It is equipped with a 12-tool magazine to realize automatic tool change; it has complete functions and can realize whole-board cutting and whole-board drilling.
How to Choose Between a 4-processes Cutting Machine and a Linear ATC CNC Machining Center?
As mentioned above, the 4-processes cutting machine is an economical machine with a low purchase cost. At the same time, compared with the machining center, its efficiency is also greatly reduced. Therefore, for the purchase of these two machines, you should choose according to your own processing needs.
If your processing needs are only to make cabinets and the production scale is not too large, then the 4-processes cutting machine is more suitable. At the same time, the price is more advantageous. If the processing needs are only to make cabinet doors, if you process simple patterns with less than four knives, 4-processes cutting machine and Linear Atc CNC Machining Center can be used. If the complex pattern exceeds four knives, it is recommended to choose a straight-row automatic tool change machining center. If the cabinet body and cabinet doors are all made, and the process is relatively simple, you can choose a four-step cutting machine. If the production process is more complicated, it is recommended to choose a straight-row machining center.
If the edge banding machine is used to make cabinets, it has basic functions such as gluing and pressing, front and back head alignment, rough trimming, fine trimming, scraping, and polishing. If it is used to make cabinet doors, it needs to add other functions such as profiling tracking, pre-milling, double glue pots, glue pots, and PUR glue pots. It can process materials such as density boards, ecological boards, multi-layer boards, particle boards, and aluminum honeycomb boards.
Edge Banding Machine

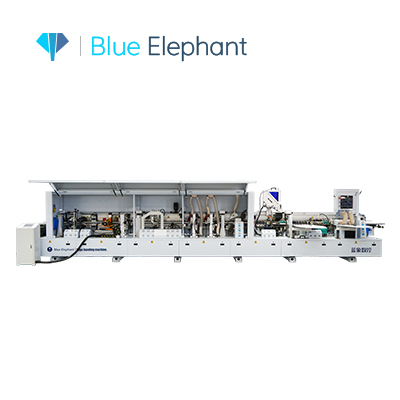

Compared with other common automatic edge banding machines, the following edge banding machine can also drill holes synchronously. In addition, it can also complete pre-milling, gluing, end face cutting, rough and fine trimming, tracking chamfering, scraping, edge banding and polishing. In addition, the use of high-quality CNC parts allows the E70JDSC side hole drilling edge banding machine to be used in harsh environments such as high and low temperatures, with the characteristics of stable production, low maintenance cost, and durability.
Side Hole Drilling Machine
Side hole machine is another process in furniture making. The board cut by the cutting machine is punched and slotted on the side of the board according to the processing requirements. The side hole machine can replace the traditional sliding table saw and drill. It adopts a gantry structure, a stable guide rail support surface, and a stable rack transmission to ensure that the machine does not deform during operation. Common side hole machines include single and double spindle side hole machines, mortise and tenon side hole machines, saw blade side hole machines, etc.

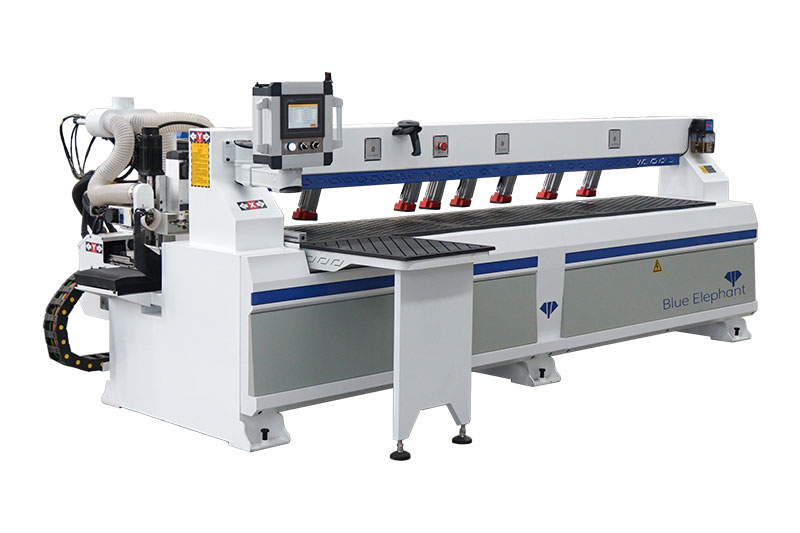

The following side hole machine supports connecting to various furniture production software, is easy to operate, and realizes intelligent production. All specifications can be customized according to specific needs.
What’s the Difference Between a Six-Sided Drill and a Side Hole Drill?
CNC six-sided drill and side hole machine are both equipment used for drilling in panel furniture production lines. They are mainly used for drilling of panel furniture and are essential processing machines in furniture production lines. The side hole machine mainly uses laser head induction to complete the drilling and grooving of the side of the board, automatically docks with the software, and completes the hole position scanning. The operation is very simple. The side hole machine needs to start working after the cutter completes the vertical drilling.
The six-sided drill is a high-end hole arrangement device that automatically positions through wireless code scanning (with arrangement function). The double clamp clamp is automatically loaded for processing, and the six-sided hole processing and front groove processing are realized at one time. After the processing is completed, the clamp automatically loads the plate into the sorting rotary platform. It has high processing efficiency and high degree of automation. It is the main hole arrangement equipment for the current high-end panel furniture production line. It can solve the vertical hole, horizontal hole, and grooving functions.
3.Furniture Cabinet Sample Display
Blister Door Furniture Making
1.Blister Door Furniture Making Process
The production process of panel furniture blister doors is relatively complicated, and mainly consists of five parts: design door software, cutting, polishing, spraying and laminating.
1) Order splitting software: The commonly used order splitting software cracked version is Alpha, and the genuine version is Haixun door panel software.
2) Cutting: The cutting of blister doors is different from that of cabinet production. The cutting of cabinet production line is mainly used for cutting processing procedures. Since the material and color of door panels are more diverse, they are not suitable for the production of standard parts, so they are generally produced according to orders. Usually including milling, cutting, engraving and other processes. There are also many types of tools used for engraving, the common ones are 120 ° V-shaped knives, guide edge cutting integrated knives, flower knives, milling bottom knives, etc.
3) Polishing: After the cutting is completed, the door panel is polished.
4) Glue spraying: Here it is mainly divided into glue spraying and glue-free glue spraying processes, which can be selected according to needs.
5) Laminating: The laminating machine applies PVC film to the door panel for three-dimensional filming. It can be used for hot printing film and single-sided solid wood veneer filming after adding silicone plate.
2.Blister Door Furniture Making Machines
Cutting Machine
We have distinguished between 4-processes cutting machines and Linear ATC cnc machining center cutting machine above. 4-processes cutting machines are mainly used to make cabinets with a small production scale; ATC cnc machining center is mainly used to make cabinet doors, suitable for processing some door panels with complex engravings and printings. Therefore, the cutting machine used in the production of blister doors here is a Linear ATC cnc machining center, which is used to engrave some more complex patterns.
The following ELECNC-1325ATC cutting machine can replace 12 different tools and is equipped with a pusher device, which can push the material after cutting or engraving.
Wood Polishing Machine

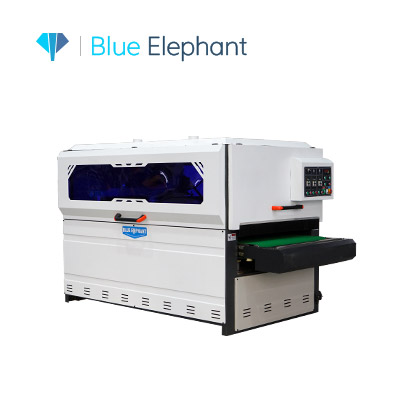

The polishing machine is suitable for polishing various solid wood, density board, iron sheet and other materials. It is mainly used for sanding, grinding and polishing of the heterogeneous surfaces, flat surfaces and curved surfaces of straight and L-shaped door panels. It is an ideal equipment for the production of doors, windows, cabinets and furniture.
Vacuum Press Machine
The laminating machine is a machine that absorbs heated and plasticized PVC thermoplastic plastic coils (PVC film), leather, veneer, etc. on density boards, stone and other boards to make high-quality cabinet doors, wardrobe doors, sliding doors and other products in various shapes. The molding process mainly uses the vacuum suction generated by the vacuum pump to heat and soften the PVC thermoplastic plastic coils, and vacuum sucks them into various shapes of boards.

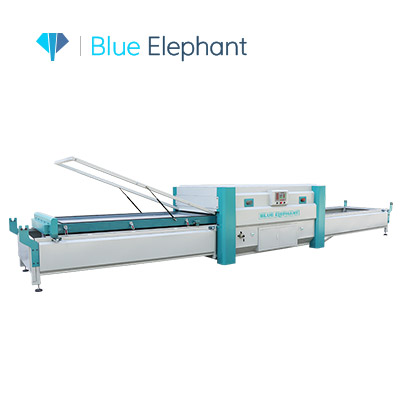

The following laminating machine equipment body is made of high-quality steel welding, the force points are strictly calculated, and there is no deformation and high stability. The heating system uses a microcomputer temperature controller, which can automatically control according to temperature changes, thereby adjusting the heating speed to achieve the purpose of controlling temperature. Using automatic digital display technology, the whole machine has a high degree of automation, simple operation and low failure rate.
Hinge Drill Machine
It is used for drilling hinges of furniture door panels, such as wardrobe door panels, cabinet doors, office furniture door panels, etc. The drilling position can be adjusted longitudinally and transversely to adapt to the drilling processing requirements conveniently and quickly.

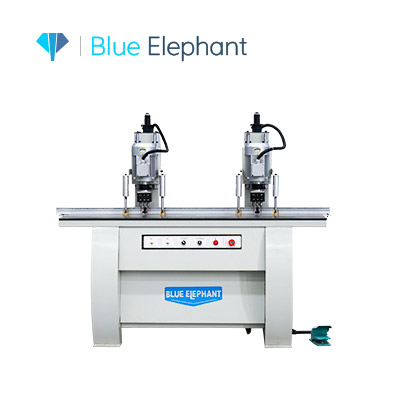

The following double-head hinge drill press can adjust the drilling position vertically and horizontally, and can adapt to drilling requirements in many ways. It is an ideal choice for cabinet and wardrobe manufacturers.
3.Blister Door Furniture Making Sample Display
High-gloss Door Furniture Making
The process required for the high-gloss door production line is basically the same as other cabinet door production processes, mainly including a series of processes such as cutting, edge banding, and drilling. At the same time, the required machinery and equipment also include cutting machines, edge banding machines, and hinge drills, which have been introduced in the previous article and will not be described here.
High-gloss Door Furniture Sample Display
Conclusion
After reading this article, I believe you have a general understanding of furniture production machines. Furniture production mainly includes cabinet production lines, blister door production lines, and high-gloss door production lines. The main machines used include cutting machines, edge banding machines, drilling machines, etc. Different productions have different machine classifications to choose from. For example, the cabinet cutting mainly uses a four-process cutting machine, and the door cutting mainly uses a Linear ATC CNC Machining Center. I hope that reading this article can help you.
