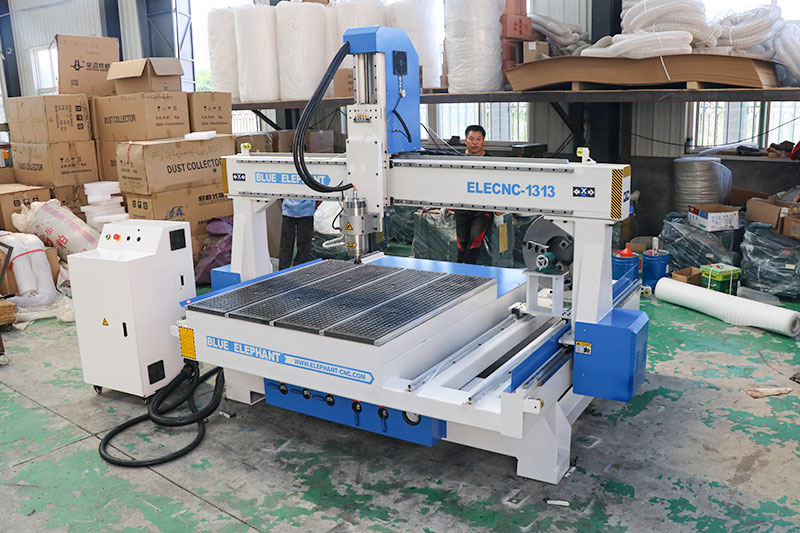

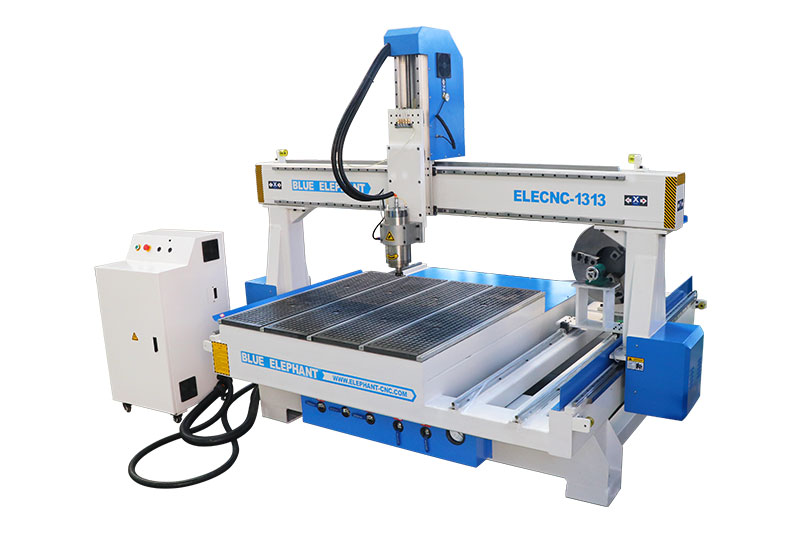

This rotary axis engraving machine has a small working area. With a small footprint and it is more flexible and convenient to use. Therefore, it is suitable for meeting the processing needs of the advertising industry, home use or small businesses.

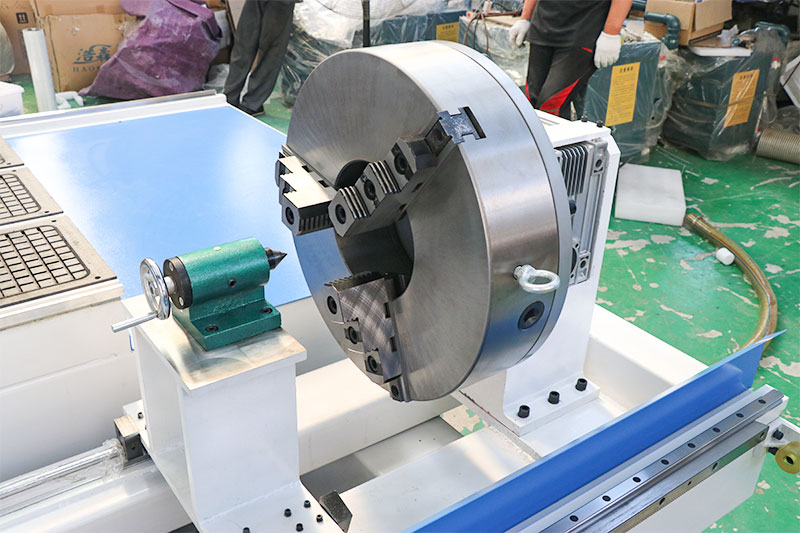

1. Equipped with the rotary device, it can be used to process some workpieces like stair railings, table and chair legs, Roman columns, etc.
2. Adopting Changsheng water cooling spindle, it has the features of good cooling effect and low noise.
3. With a small footprint and it is more flexible and convenient to use.
4. Imported parts ensure maximum machine life.
| Model | ELECNC1313 |
| X,Y axis travel | 1300*1300mm, option: 1300x2500mm, 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 200mm, 300mm, etc |
| Spindle type | 6kw water cooling spindle |
| Inverter type | 7.5kw inverter |
| Control system | Mach3 controller for 4 axis |
| Driving system | 750w Leadshine hybrid servo motor and driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T-slot & vacuum table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

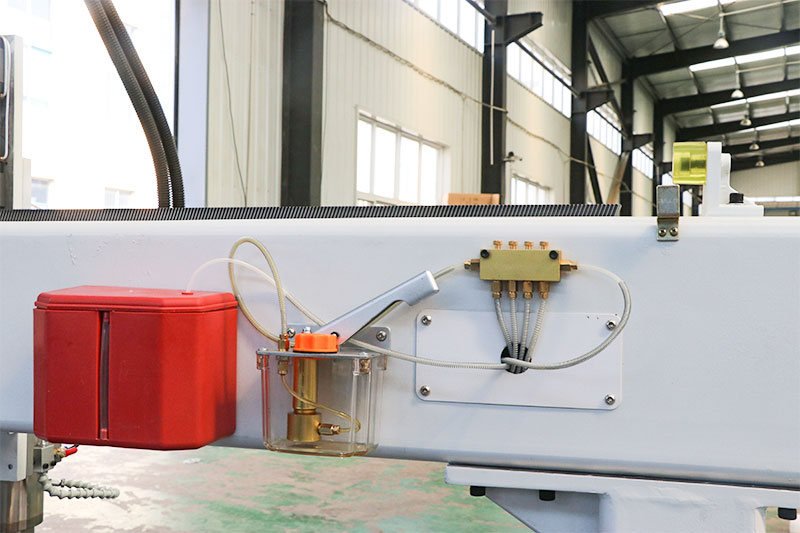

| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Tool sensor |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 30m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Effective Working area | 1300*1300*500mm (optional) |
| Spindle | 6kw CS water cooled spindle |
| work table | T-slot& vacuum work table (4 zones) |
| limit switch | Japan OMRON limit switch |
| Motor and drive | Leadshine motor and driver |
| Control system | Mach3 |
| Inverter | Fuling Inverter |
| vacuum pump | 3KW water type vacuum pump |
This rotary CNC router is also called a 4-axis CNC router with the rotary device. And it is mainly used to process cylinder work piece
Yes. We can have rotating heads with diameters of 100mm, 200mm, 300 mm, or even 500 mm.
The Z-axis standard travel for a 3-axis CNC machine is 200mm. Of course, we can make a higher Z axis for you.
