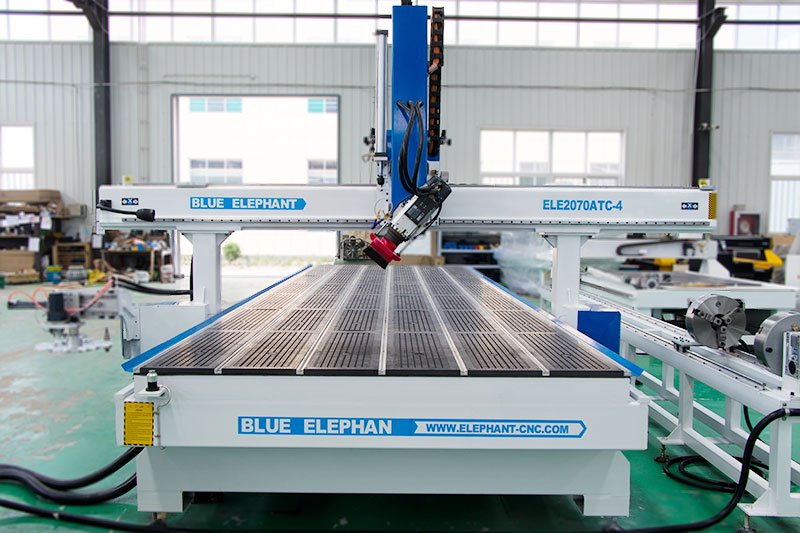

This ATC 4 axis CNC router machine has a side carousel tool changer magazine and a movable rotary device. The ATC function saves tool-changing time, and the 4 axis spindle can complete more complex wood carving work. This movable rotary device saves space, and it mainly for cylinder engraving, such as columns, pillars, chair legs, etc.
1. Movable rotary device with customized diameter and length as you requested.

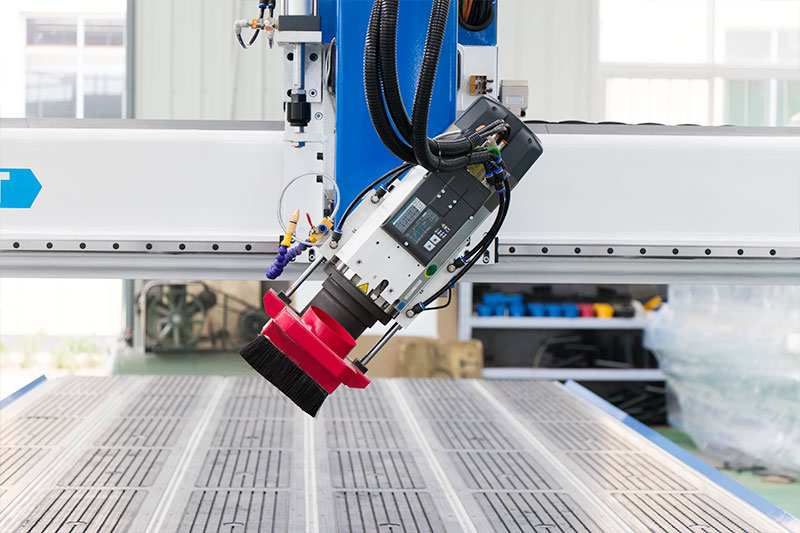

2. Italy HSD air cooling spindle swings ±90° to carve 3D objects and molds. And this is one of the common features of 4 axis CNC machines.

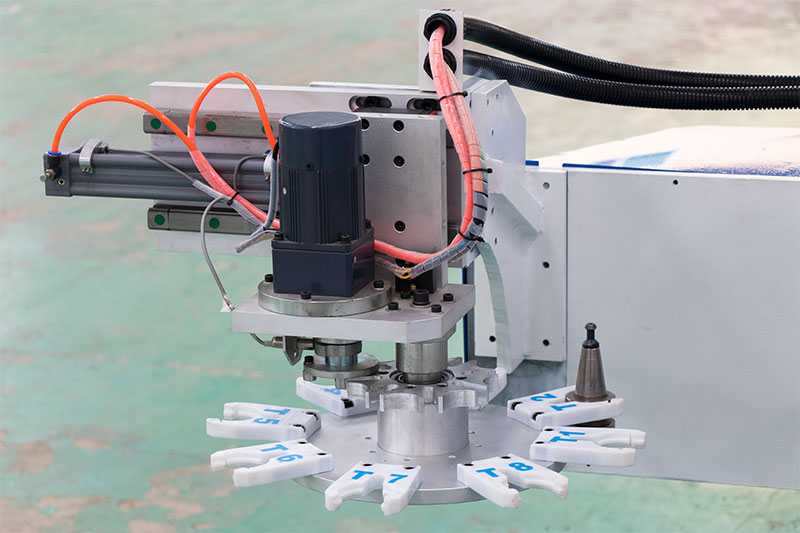

3. This ATC CNC router machine has a side carousel type tool changer magazine and a 4 axis spindle, which improves work efficiency significantly.
4. It adopts famous brands CNC parts to ensure stable and smooth operation.
| Model | ELECNC2070ATC-4 |
| X,Y axis travel | 2000*7000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, 700mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw inverter |
| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC/LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 9 pieces (X3, Y6) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |

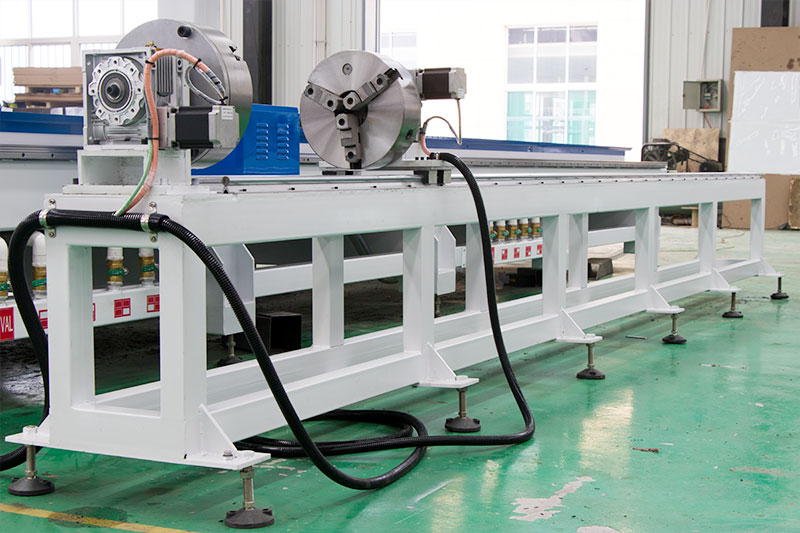

| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 320mm. |
Generally we will layout three positioning cylinders in the front of the machine and six ones on the left side of the machine. We can also customize the number of it as your needs. Yes, the positioning cylinders are operated by system of the CNC machine.
Yes, it is a 4 axis CNC machine. Please see the following link.
https://www.youtube.com/watch?v=bCJhOhizMgE
https://www.youtube.com/watch?v=95beYVNAIVc
RTCP is the post processor of the 4-axis CNC router machine. With this function, the CNC router can realize processing at any angle of 180°. When changing the angle, the spindle will automatically adjust the distance to the material.
Our CNC router machine works well with the voltage of 208V and 220V. But if you need to use it with 460V, you need to add a transformer. Just tell us the voltage you finally choose before production.
ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
