Brand : Blue Elephant
Model : ELECNC- 1325S
Category : Stone Engraving Machine
Price Range : $6,500 to $35,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month
1325 4×8 Stone CNC Router for carving and cutting with water-cooled spindle. It has the advantages of high processing accuracy, fast processing speed and good cooling effect. It has always been a popular machine in the CNC stone carving and sometimes in stone cutting field.
1. Designed with water cooling spindle, it ensures the high speed and high precision in stone cutting or carving.
2. With dust proof, it can ensure the machine has a long service life.
3. Equipped with SS water tank with mist cooling sprayer, it has a better cooling effect.
4. All the specifications can be customized according to your requirements.
Model | ELECNC1325 Stone CNC Router |
X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc |
Z axis travel | 200mm, option: 300mm, 400mm, 500mm, etc |
Spindle type | 3kw water cooling spindle, 24000RPM 4.5kw/ 5.5kw/ 6kw for optional |
Inverter type | 3.7kw Fuling inverter |
Control system | Mach3 controller |
Driving system | Stepper motors and drivers |
Machine structure | Professional stone cnc bed, with heavy duty body more thicker and stronger |

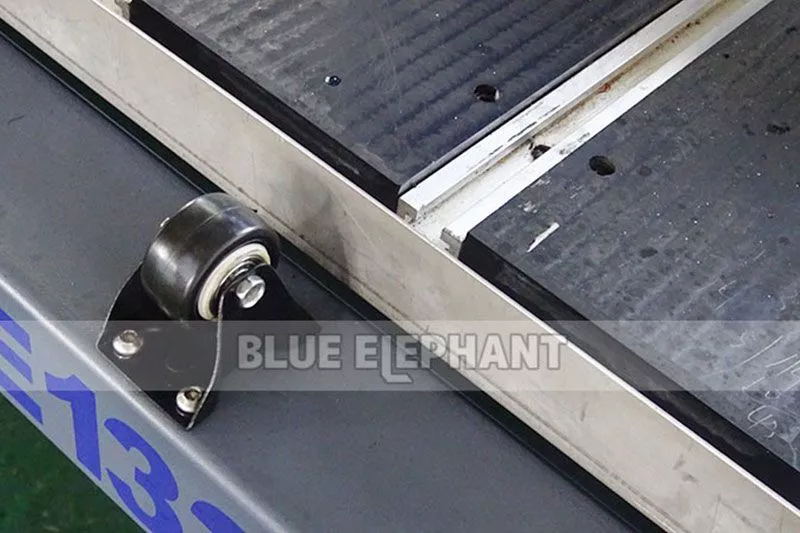

Work table | slot working table, with steel water sink; stainless steel sink for optional |
Linear guide | Taiwan linear guide 20# |

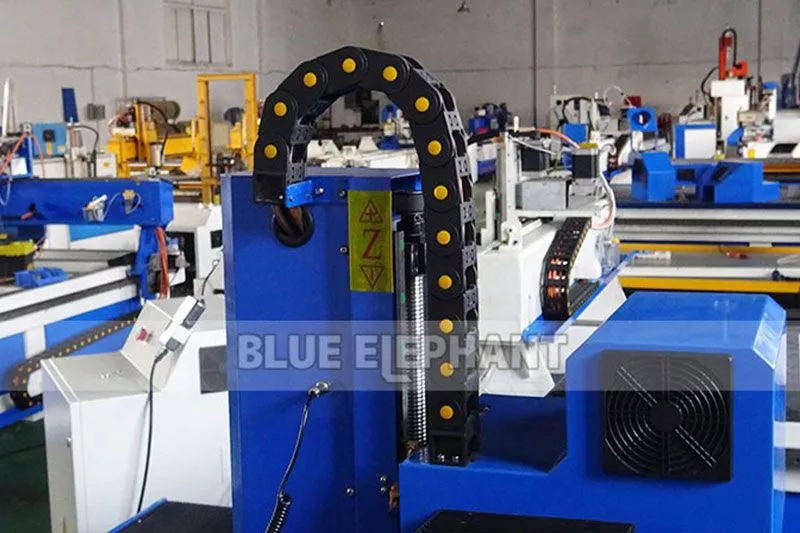

Transmission | X, Y axis: Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |

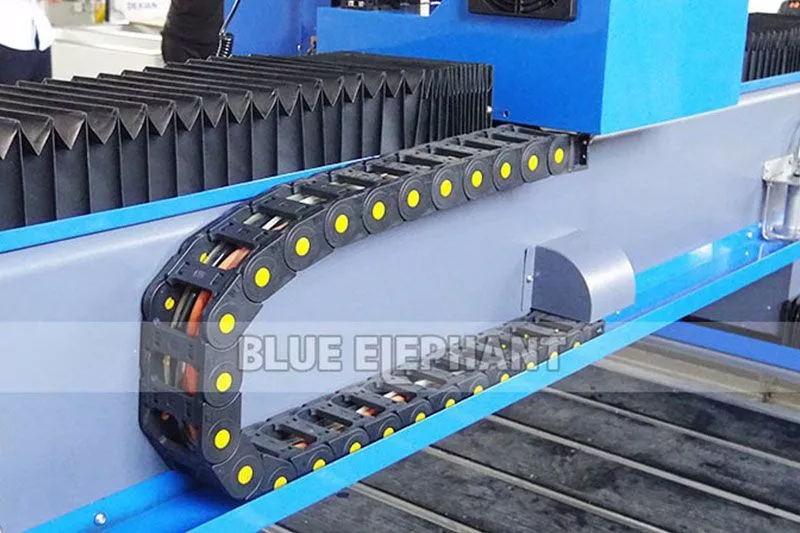

Dust cover | Dust covers for X,Y axis, protect the rails |
Cooling system | Water cooling |
Lubrication system | Automatic lubrication system |
Tool calibration | Manualtool sensor calibration |
Cables | Germany Igus cables with CE, cUL certificate |
Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
Command language | G Code |
Traveling speed | 25m/min |
Working speed | 0-20m/min |
Re-positioning accuracy | ±0.05mm |
Working accuracy | ±0.05mm |
Working air pressure | 0.6MPa |
Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Spindle | 4.5kw/ 5.5kw/ 6kw water cooled spindle |
Controller | Mach3 wireless hand wheel Or DSP A11 handle controller |
Rails | Taiwan 25# linear rails |
Motors | Leadshine servo motors Or Japanese Yaskawa servo motors |
Stone engraving machine can deal with stone work, such as line carving, 2D plane carving, 3D relief carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, , stainless steel, iron, copper, etc. If you have the above materials need to process, stone engraving machine is definitely your best choice.
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones
Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA
Soft metal: aluminum, brass, copper, mild steel
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
This machine is suitable for engraving stones, such as marble, granite, quartz, etc. You can also use it to cut and engrave wood, PVC, acrylic, soft metal,MDF, etc.
Yes! We have our own factory and we can customize any size and machine configurations.
The normal production needs around 30 working days. If you are in a hurry, we can try to find a similar stock machine for you.
