EW3 5 Axis CNC Router with Moving Column Gantry

EW3 5 Axis CNC Router with Moving Column Gantry

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : EW3

Category : 5 Axis CNC Router

Price Range : $40000 to $50000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

EW3 5 axis CNC router with moving column gantry adopts a dynamic column structure. That means the workpiece is fixed on the workbench, and the column and gantry move along the direction of the bed. Therefore, it can provide larger processing space and higher stability. And it is widely used for processing foam and wood in mold manufacturing industry.

Features

1. The moving column gantry 5 axis CNC machining center has a large working table, which is suitable for processing large workpieces and 3D molds.
2. The dynamic column structure provides larger processing space. So it can achieve high-precision and complex surface processing, improve production efficiency and reduce the need for manual operations.
3. The moving column gantry 5 axis CNC machine allows the workpiece to be accurately machined in five different directions without re-clamping the workpiece. It greatly shorten the processing cycle and reduce material waste.
4. The moving column gantry 5 axis CNC machining center is widely used in aerospace, automobile manufacturing, mold manufacturing, etc. It is one of the indispensable and important equipment in modern manufacturing industry.

Parameters

EW3 Moving Column Gantry 5 Axis CNC Machining Center
X, Y, Z axis travel	X axis：1300-2000mm
	Y axis：2000-6000mm
	Z axis：300-600mm
Spindle	HITECO 10KW/Changchuan 14KW
5 axis cutting head	HITECO/LX500
Tool magazine	Carousel tool changer with 8pcs HSK F63
Inverter	15kw Delta inverter
Control system	SYNTEC 610-E5 5 axis control system with RTCP functions
Driving system	X axis 1.3kw; Y axis 1.3kw*2; Z axis 1.8kw Japan YASKAWA servo motors
Work table	T-slot & Vacuum working table
Linear guide	X, Y axis: Taiwan 35#
Linear guide	Z axis: Taiwan 30#
Reducer	Japan SHIMPO *3
Water cooling system	Water cooler
Cables	Germany Igus cables with CE, cUL certificate

5 Axis CNC Router Optional Parts

Moving Column Gantry 5 Axis CNC Machining Center Part

Application

INDUSTRIES

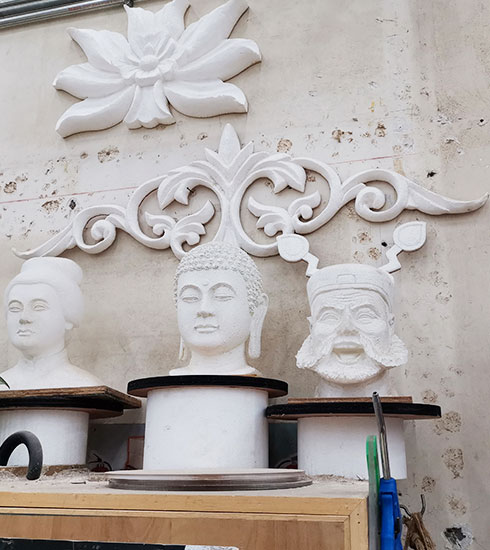

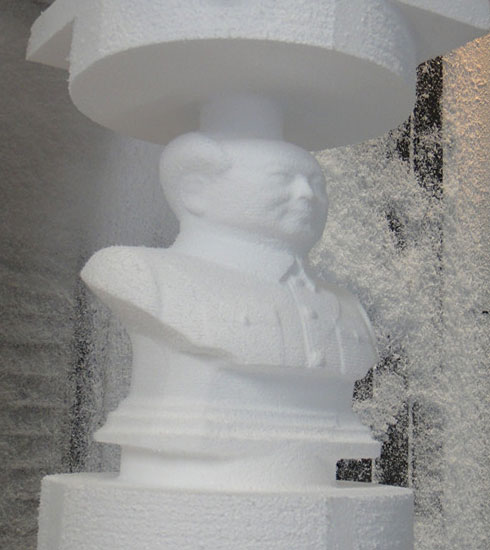

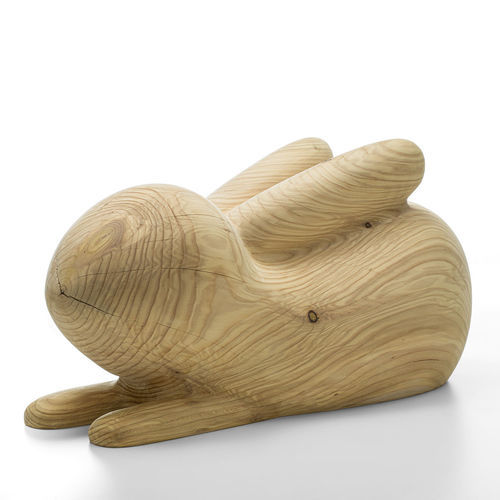

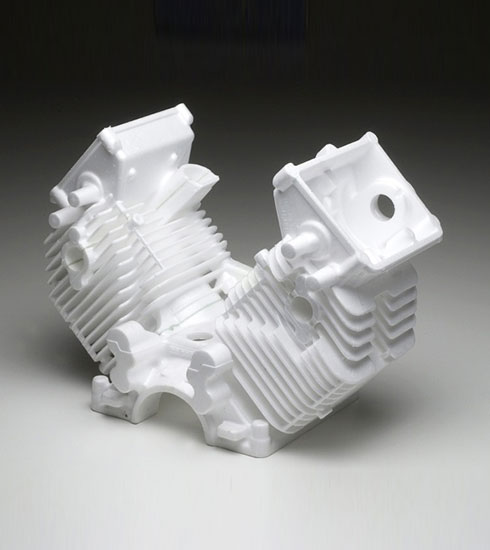

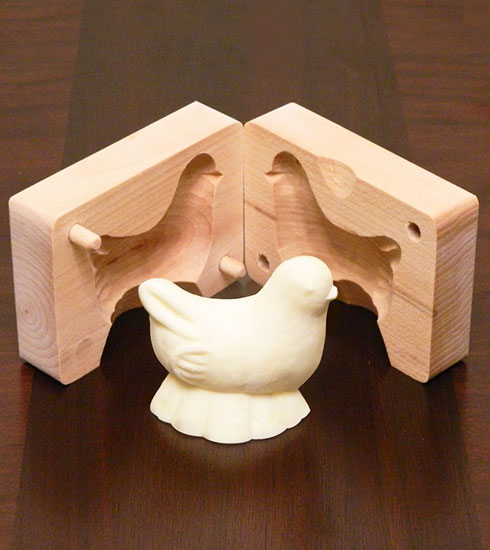

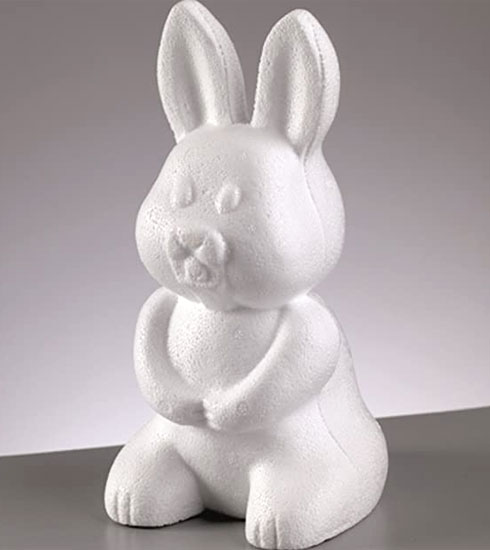

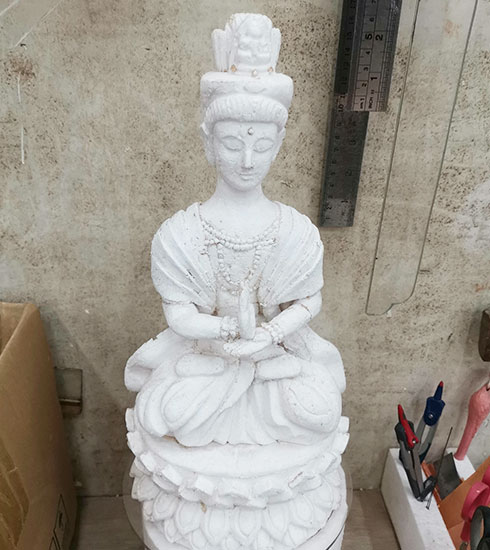

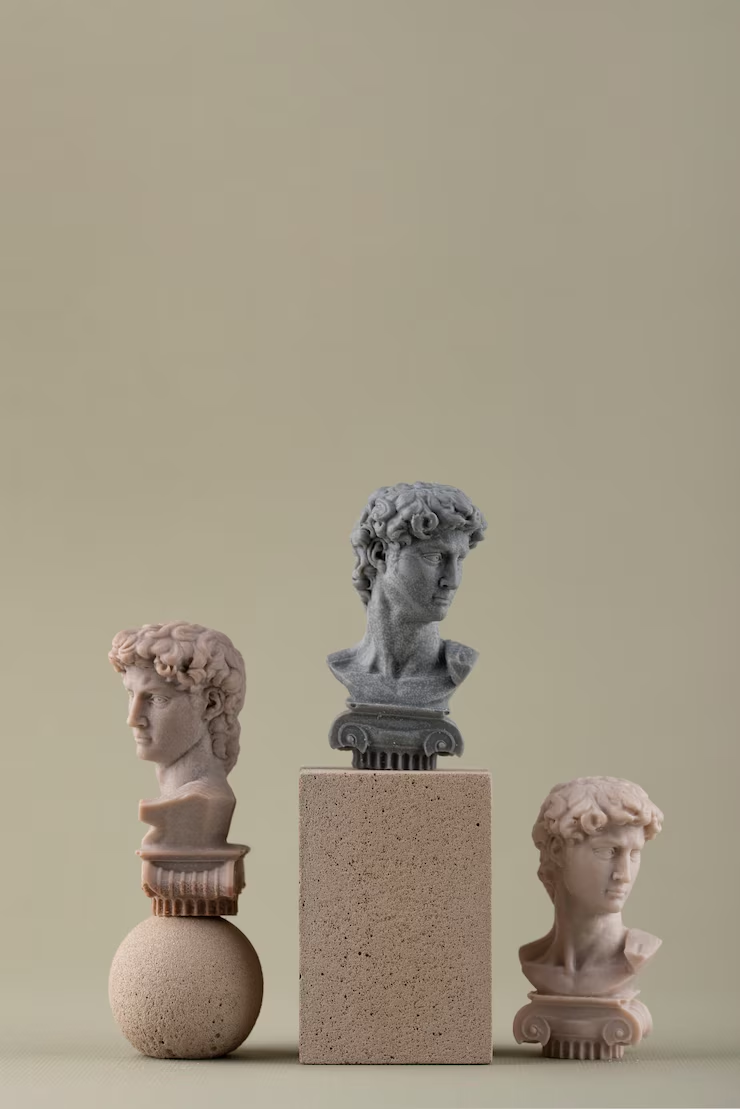

5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.

Review

The 5 axis machine is very professional and have pretty good samples. I am very satisfied with my Blue Elephant CNC machine. Moreover, I did many wooden molds which some peopal come here to visit. Thanks a lot Blue Elephant.

First of all, I am very grateful that the engineer personally came to our site to provide technical support for us. Our machine encountered a little trouble during use. After reacting with the seller, we were immediately contacted by their professional engineer online. After communication, the engineer expressed his willingness to personally guide. We are really moved. Now the machine is working smoothly, thank you very much.

The machine behind me was picked up when I visited the blue elephant in the factory, and finally I successfully brought the machine back home. The processing effect is beyond what I expected.

Excellent! I didn't expect that the foam CNC machine would be so good.
