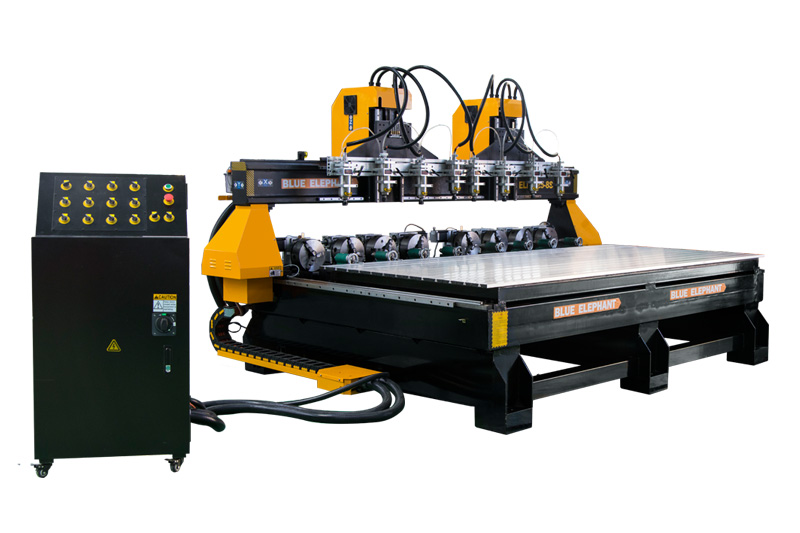

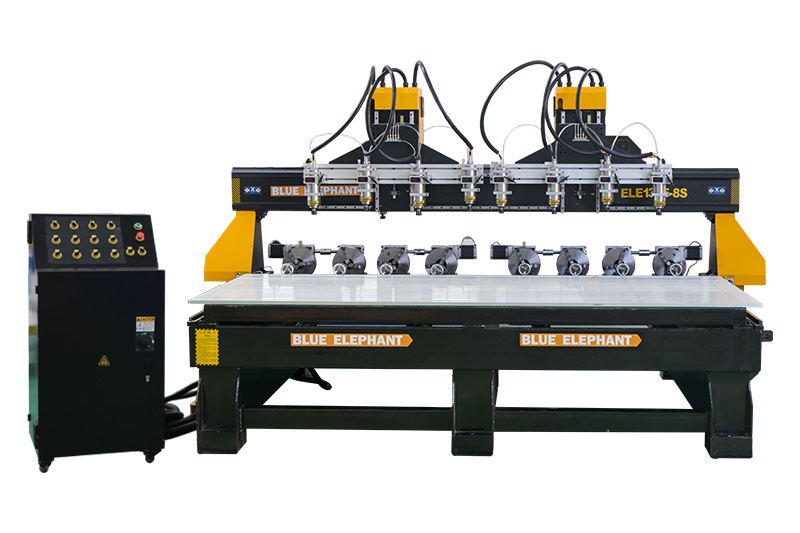

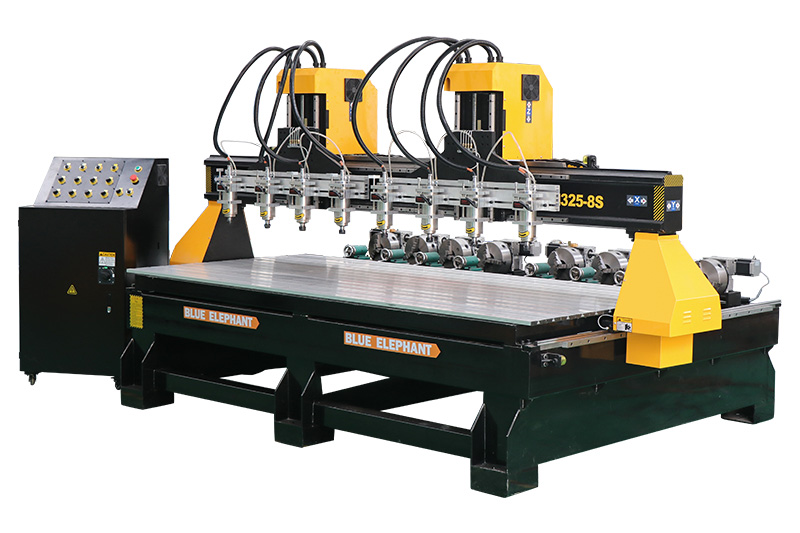

Compared with other multi spindle CNC router, this machine has more spindles, 8 spindles work in the same time, greatly improving the processing efficiency. In this case, the machine has some similarities with ATC CNC router Machine.
1. Multi spindles can work at the same time, and the machine can improve the engraving efficiency.
2. Adopting water cooling spindle, it has the features of low noise and better cooling effect.

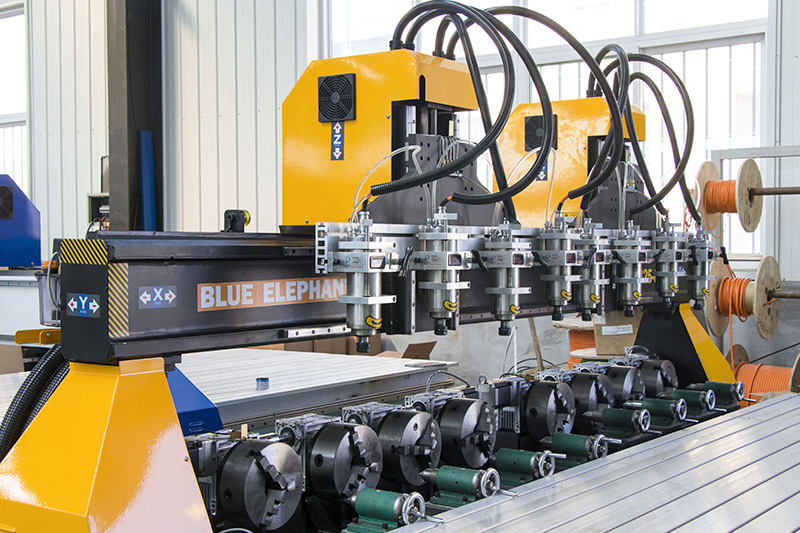

3. Designed with rotary device, the machine can be used to process cylinder objects such as table legs, stair handrails, sculptures, 3D relief and so on.
4. The account of spindle and working area can be customized according your requirements.
| Model | ELECNC1325-8S |
| X,Y axis travel | 1800*2500mm, option: can be customized by customer requirement |
| Z axis travel | 300mm,option: 400mm, 500mm, etc |
| Spindle type | 2.2kw water cooling spindle, 0-24000RPM * 8 sets |
| Inverter type | 2.2KW * 8 sets |
| Rotary device | Diameter 100mm (Options 80mm,160mm, 200mm, etc.) |
| Tool Collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP B18 control system |
| Driving system | Leadshine servo motor and driver |
| Machines tructure | Heavy duty body with steel structure beam |
| Work table | Movable T-slot working table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |

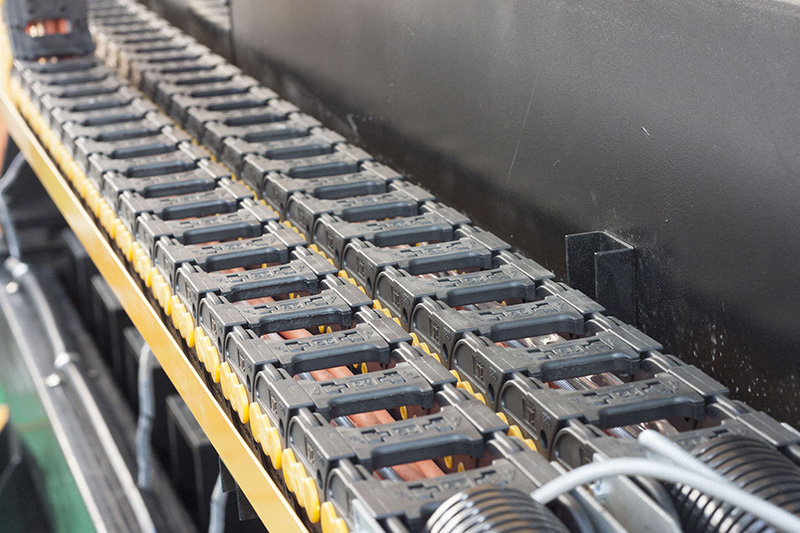

| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ArtCAM, Aspire, Fusion 360, etc |
| Command language | G Code & M code |
| Traveling speed | 15m/min |
| Working speed | 0-5m/min |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Accessories | Water chiller |
| Control system | NC studio, Taiwan LNC |
| Spindle type | Air cooling spindle |
Consider the number and weight of spindles, we suggest you choose 1.5KW spindle and 2.2KW spindle. Usually, it is enough for carving work, such as table legs and chair legs.
Both water cooling and air cooling spindle are in good quality. The water cooling spindle use water cooling method so it needs you to maintain a water pump or water chiller, but the cooling effect is better. Air cooling use a fan to cooling so it doesn’t need maintain but it will be a little noisy than water cooling. You can choose based on your situation such as environment temperature.
For this kind of machine, you can tell our salesman your maximum material size or cylinder diameter. Then we will recommend you the suitable rotary and working area.
