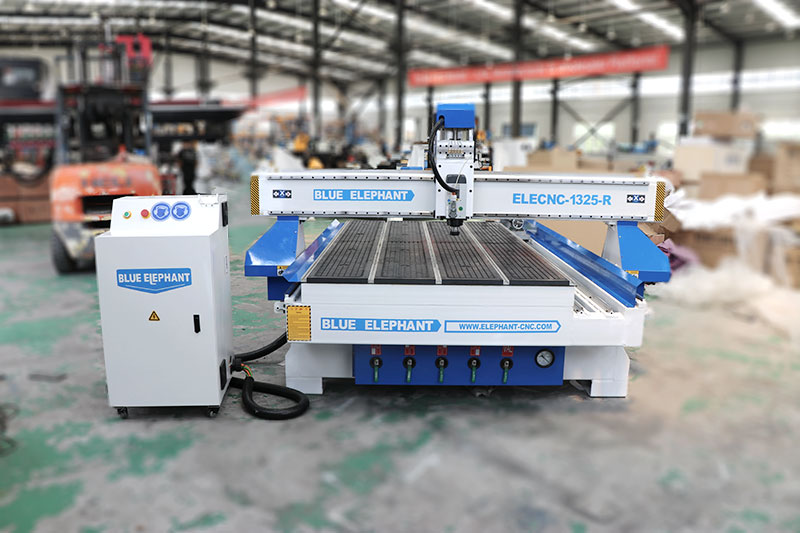

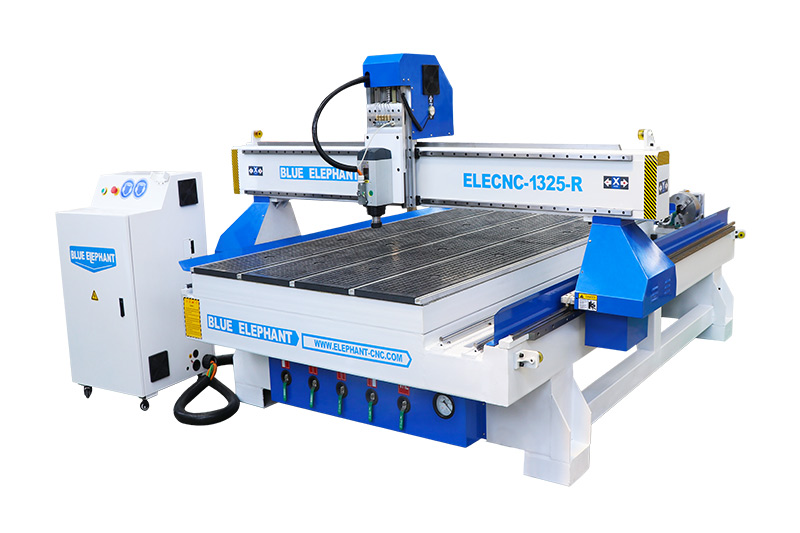

This rotary axis CNC router machine is designed for processing complicated work pieces. Besides, it can also be used in some furniture industry with the rotary device. Such as stair railings, table and chair legs, Roman columns, etc.
1. Designed with rotary device, it can process the cylinder wood carving patterns, furniture legs, escalators, etc.
2. With the heavy duty thicker and bigger welded steel tube frame, it makes the machine work more stably.
3. Adopting DSP control system and stepper motor driver system, which ensure the machine with a longer service life.
4. All accessories and parameters can be selected and customized according to the user’s processing requirements.
| Model | ELECNC1325-R |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 1600*3000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |

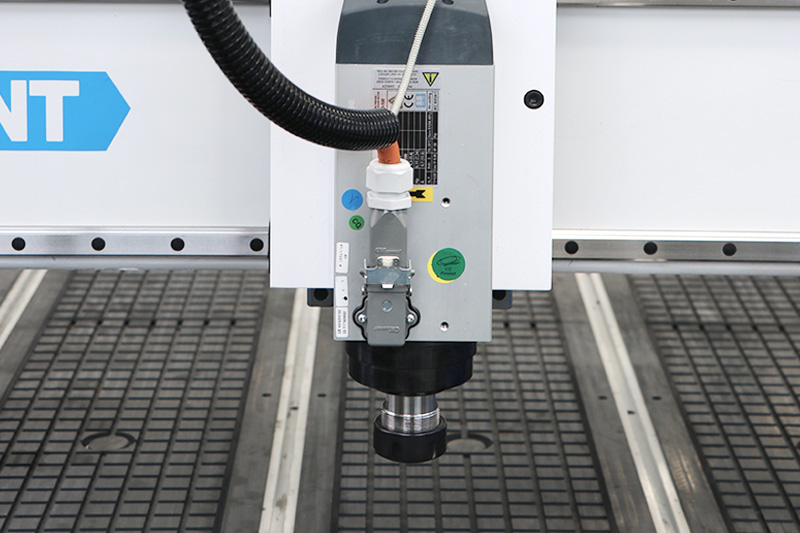

| Spindle type | 4.5kw air cooling spindle, ER25 |
| Inverter type | 5.5kw |

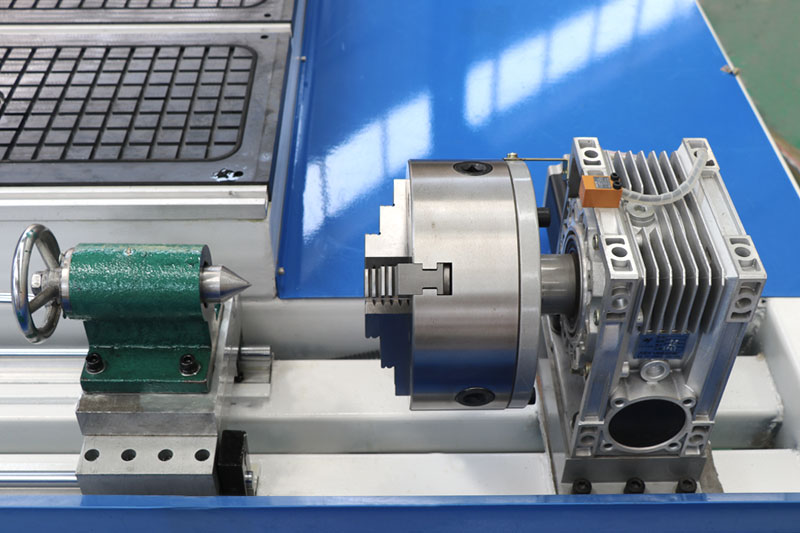

| Rotary device | 200mm diameter rotary device |
| Tool magazine | No tool magazine Option: linear or carousel type auto tool changer |
| Tool holder with collet | ER25 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP B18 option: Mach3; NC Studio |
| Driving system | Stepper FL118 motor and YAKO2811 drivers. option:750w Leadshine hybrid servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Vacuum& T-slot work table |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

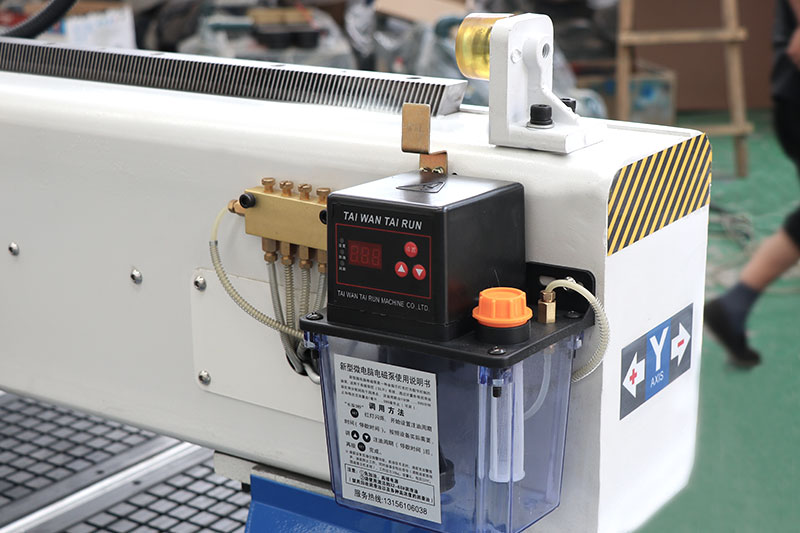

| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63),etc |
Yes, no problem. All of our machines can be customized according to your requirement.
We provide Artcam/Aspire software for free, and you also can use your own software.

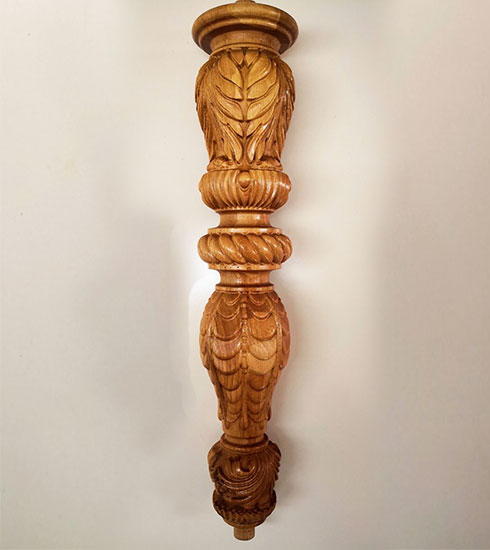

It can make table legs, sofa legs, stair handrails, and various cylindrical parts.
