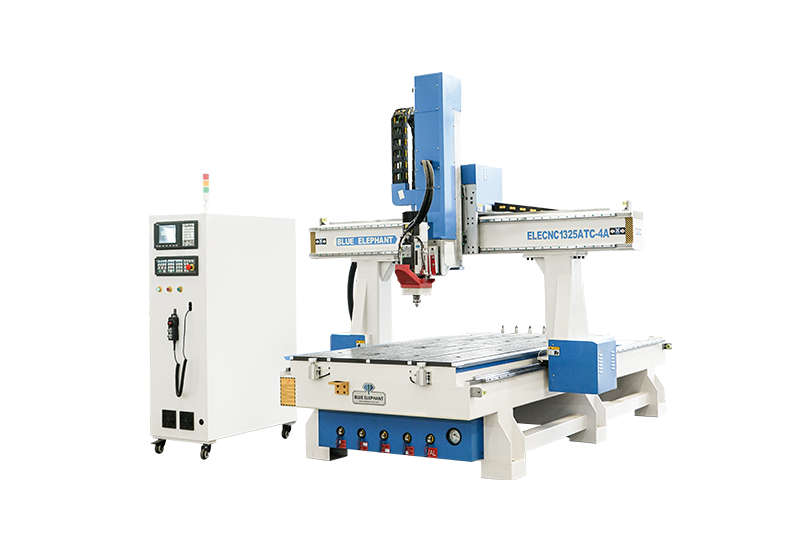

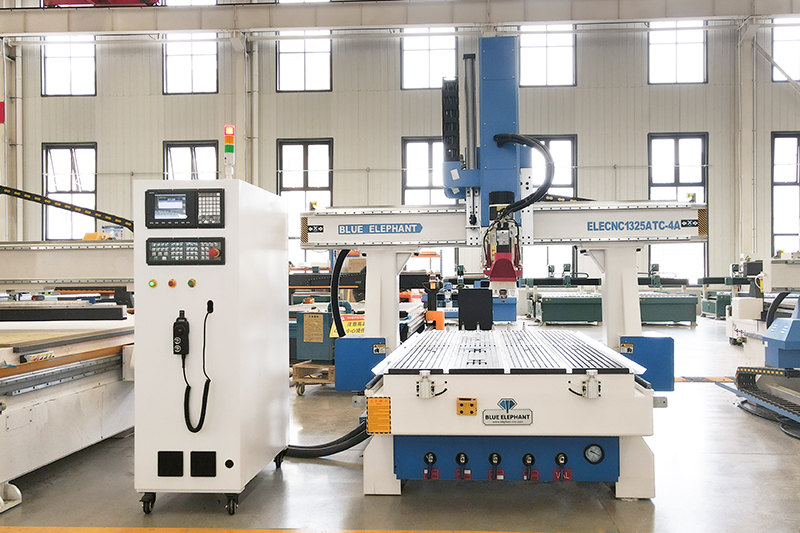

1325 ATC 4 Axis Door, Wall and Cabinet Integrated Machine

1325 ATC 4 Axis Door, Wall and Cabinet Integrated Machine

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : ELECNC1325ATC-4A

Category : Door Wall and Cabinet Integrated Machine

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

This 1325 ATC 4 axis door, wall and cabinet integrated machine adopts a new large square tube seamless welded bed, widened square tubes, and added reinforced square tubes to improve the bed strength and tabletop strength. The machine can process various handle-free handles, horn handles, arc handles, 45-degree lamino, horizontal lamino, various crabapple corners, invisible doors, L angles, straighteners, light troughs, skeleton door panels, door lock holes, door hinge slots, and floor hinges. It can also be used for cutting, punching, and grooving of panel furniture.

Features

1. The door, wall and cabinet integrated machine adopts heavy-duty reinforced gantry structure improves stability; widened square tube columns with extra ribs enhance strength.
2. Seven-zone vacuum table with embedded parts allows easy surface and liner replacement, preventing air leakage.

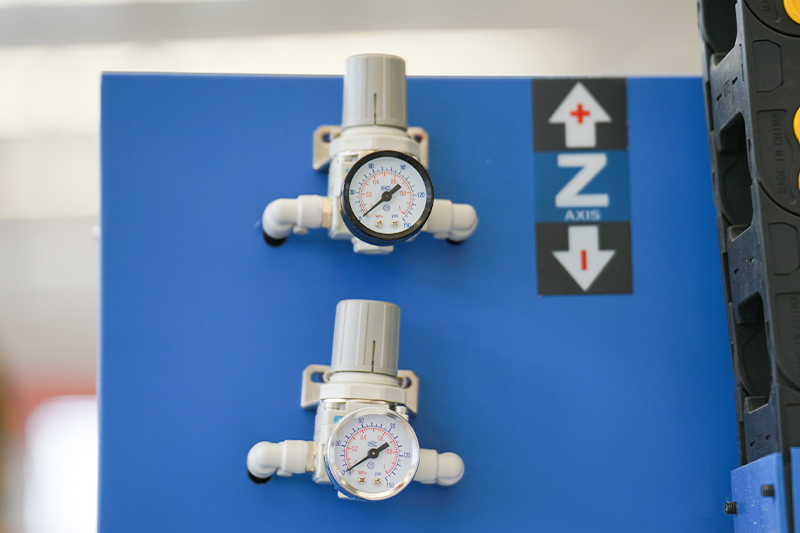

3. Built-in air pressure monitoring system stops operation and alarms if pressure is low.
4. It is equipped with voltage phase sequence protector to prevent damage from incorrect wiring or voltage issues.

Parameters

Model	ELECNC1325ATC-4A
Voltage/frequency	AC380V 50HZ 3PH
Working size	13002800400mm
Table structure	Vacuum adsorption table, 7 divisions

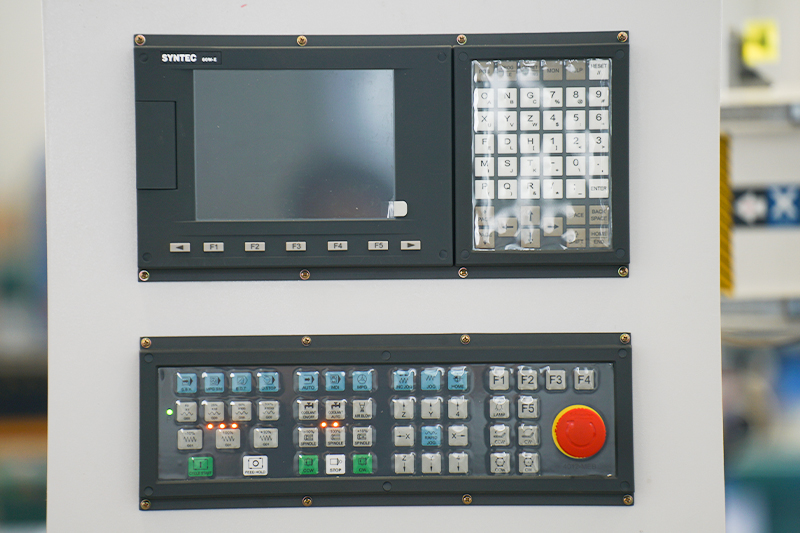

Control system	Taiwan Delta
File format	.g；.nc；.ug;.demo;.iso;.eng;*.cut
Positioning	Positioning cylinder positioning
Pushing device	Pushing and secondary dust removal device(Z600 without pusher)

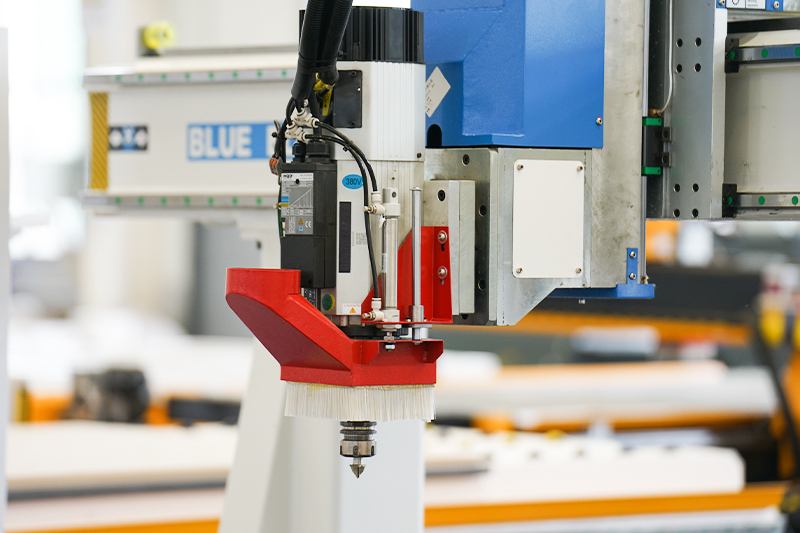

Spindle type	9kw JST ATC air cooling spindle, 24000rpm, 40E
Inverter	11kw Fuling
Motors and drives	Taiwan Delta servo motor
Reducer	Japan Shimpo
Transmission	X, Y axis:Taiwan JT 2M helical rack
Linear guide	Taiwan SHAC, Y-30,XZ-25
Vacuum pump	7.5kw
Vacuum cleaner	5.5kw double bag vacuum cleaner with motor protection

Door, Wall and Cabinet Integrated Machine Optional Parts

Application

Door, wall and cabinet integrated machine can process various handle-free handles, horn handles, arc handles, 45-degree lamino, horizontal lamino, various crabapple corners, invisible doors, L angles, straighteners, light troughs, skeleton door panels, door lock holes, door hinge slots, and floor hinges. It can also be used for cutting, punching, and grooving of panel furniture.

Review

All very well, did the first job. The machine made the facades for the kitchen. The work was done quickly and efficiently. Next time I work, I’ll take photos and videos for you. I’m very glad to choose your company, thank you again for your worry.

I got the machine in a very good condition. Thank you so much. Now I have some things to finish in my workshop before starting to connect and use it. I will comeback to you with more photos and my first comments in few days. Thanks again to Blue Elephant that made my dream come true.

We have tested the machine, it’s working properly. We are planing to purchase the second one, please send PI. Thanks very much.

So far so good. The machine arrived in perfect condition, it was packed very nicely. Cutting an oval coffee table, 45000 years old swamp Kaurin and resin. Worked beautifully.
