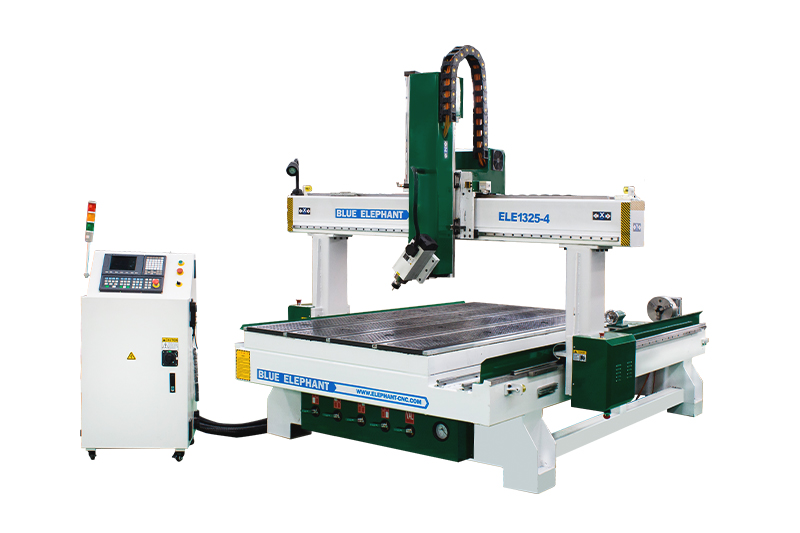

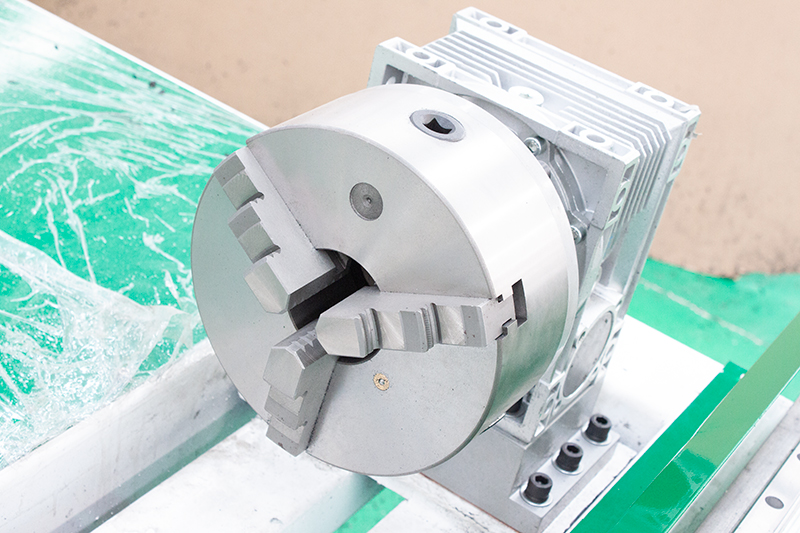

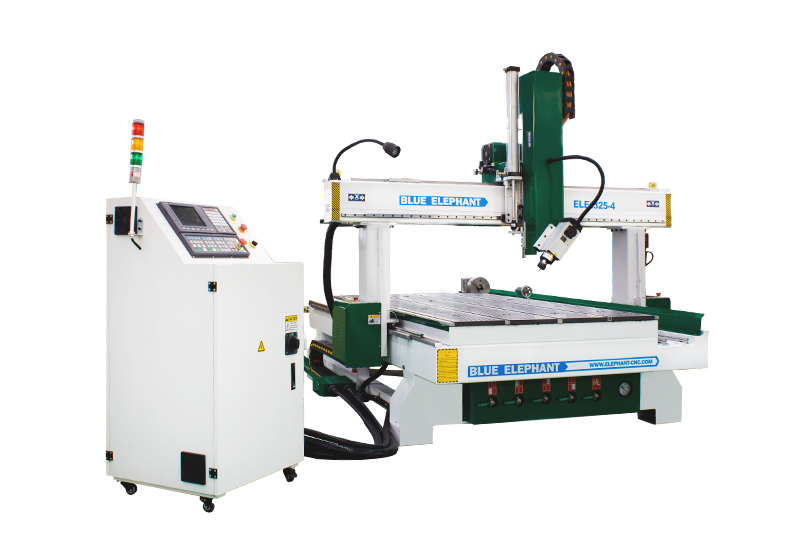

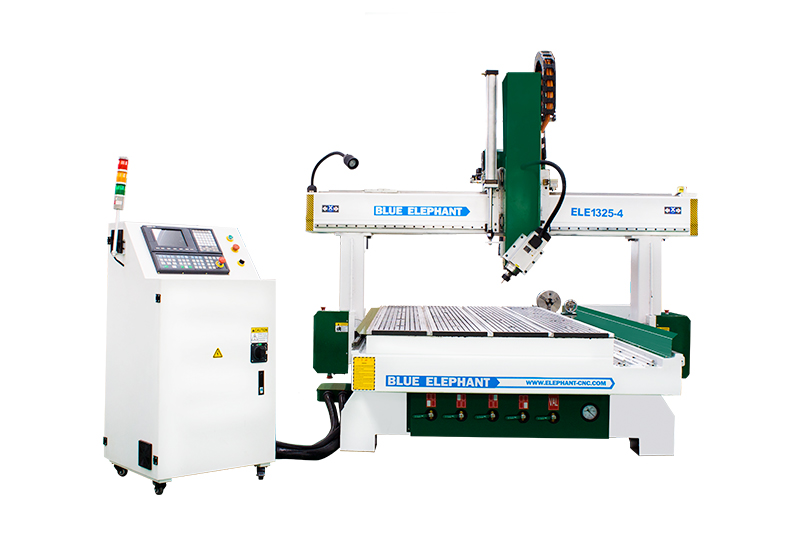

4th axis CNC wood engraving machine is designed with a rotary device and a swing spindle. So it can complete 2D and 3D engraving work and process cylindrical objects. The rotary device can be customized according to your requirements.

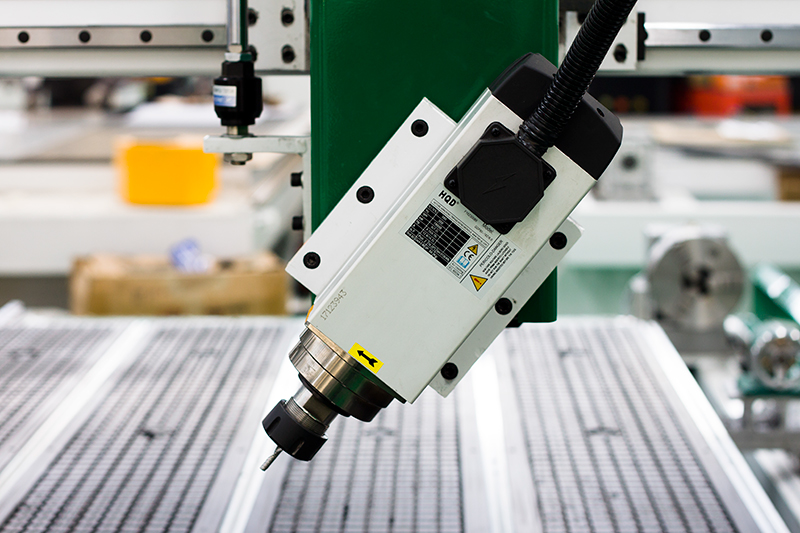

1. CNC Wood Engraving Machine is equipped with an HQD air cooling spindle, and it can swing in 180 degrees to engrave side surfaces of the workpiece.
2. With Japan YASKAWA servo motors and drivers, it has the features of high efficiency and high speed.
3. Adopting high-quality CNC router kits, such as Sweden ABBA linear guide and Taiwan TBI ball screw for Z axis, the machine has higher precision and good stability.
4. All specifications of this 4th Axis CNC Router can be made and designed according to your requirements.
| Model | ELECNC1325-4A |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 200*6000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, etc. |
| Spindle type | 6kw air cooling spindle, ER32 |
| Inverter type | 7.5kw |
| Drilling bank | Optional |
| Tool magazine | No tool magazine Option: Linear type or carousel type auto tool changer |
| Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec controller, option: Taiwan LNC |
| Driving system | 750w Japan Yaskawa AC servo driver and 750w AC servo motor, 5 sets. option: 850w Japan Yaskawa servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |

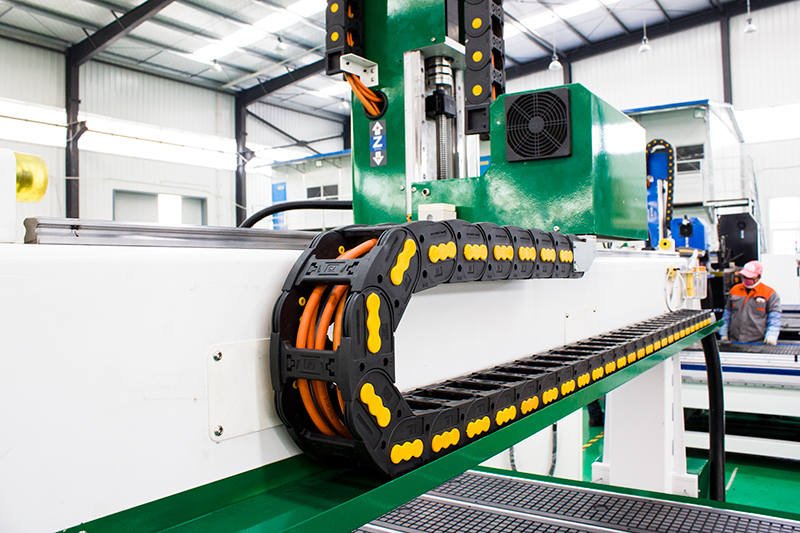

| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
Tongyou,Taiwan Eurovac,Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw(ISO30,HSK F63),etc |
Yes, of course. Our CNC router machine can process wood, solid wood, MDF, HDPE, plastic, foam, soft metal, such as aluminum, etc.
After using the CNC router, please clean the machine timely, especially the helical rack gear and square linear guide. Meanwhile, please pay attention to lubrication linear guide.
Yes, 415V is OK for this CNC router, since the working voltage is 380V±10%. For vacuum pump and dust collector, you need to work with 415V for steady working.
