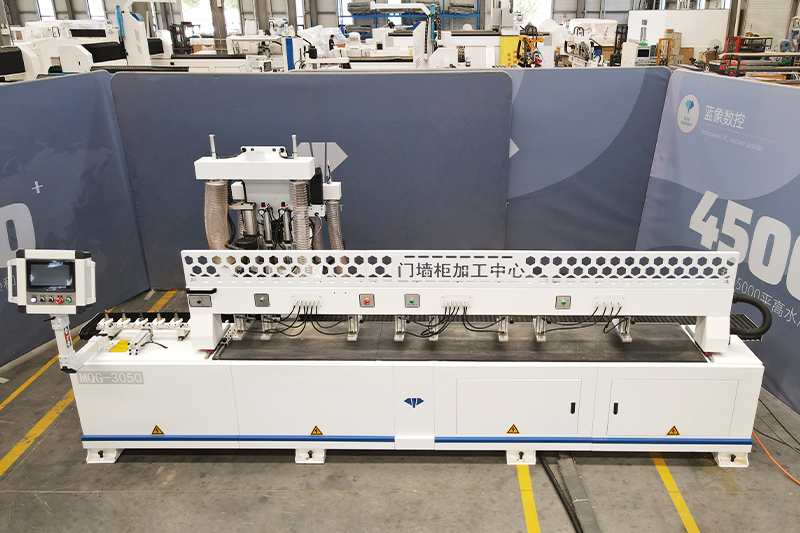

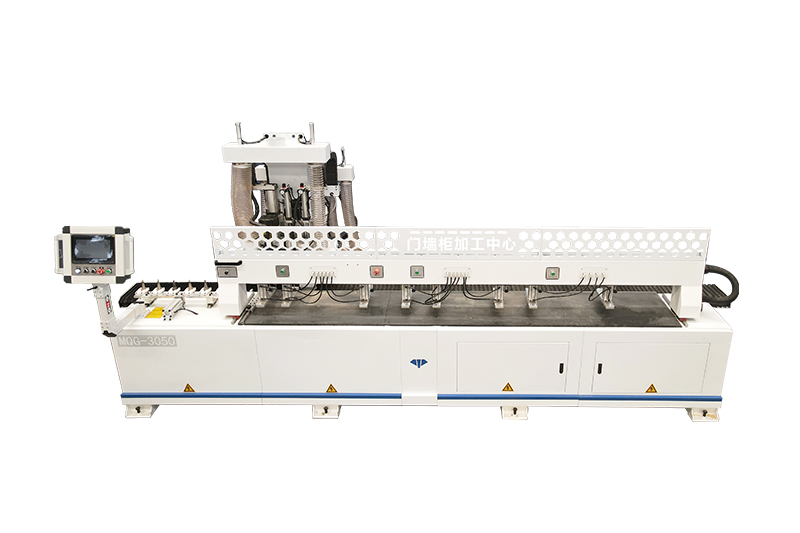

The EM610 cabinet and door wood drilling machine is specially designed for furniture making industry. It can process hinge holes, hanging code gaps, lamello, connectors, door lock hole slots, handle-free slots, crabapple slots, lamp slots, sliding door pulley slots, straightener slots, etc.

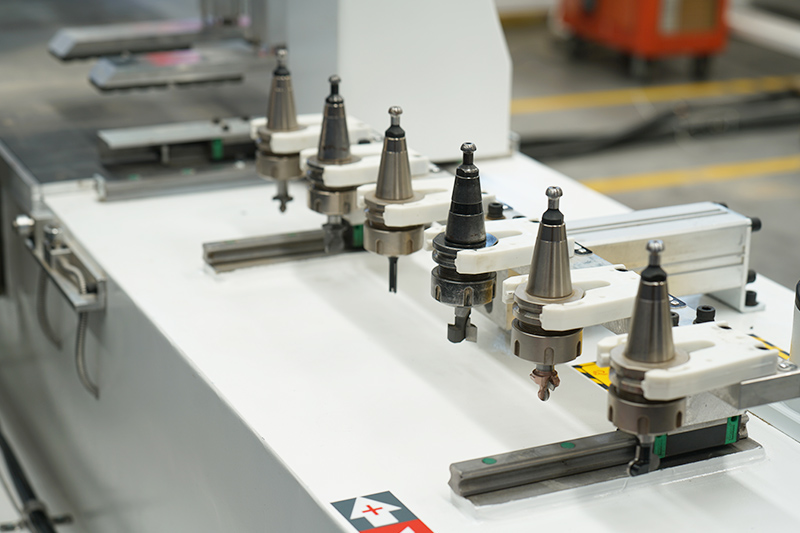

1. Equipped with a 8-tool automatic tool change magazine, it can quickly switch tools according to different process requirements.
2. With tool setting instruments in both horizontal and vertical directions, the accuracy is 2 times higher than manual tool setting. And the speed is 1 times higher.
3. The cabinet and door drilling machine also has automatic plate thickness measurement function. It can automatically adjust the tool according to the actual thickness of the plate. And making the detection error less than 0.1mm.
4. Added with 8 sets of pressing cylinders, the pressing device is easy to move. Thus prevent plate damage and plate running.
5. Configure a QR code wireless scanner, the cabinet and door drilling machine can automatically obtain processing data.
| Model | EM610 |
| Processing length | 250-3050mm |
| Maximum processing width | 180mm |
| Minimum processing width | 50mm |
| Processing thickness | 10-60mm |

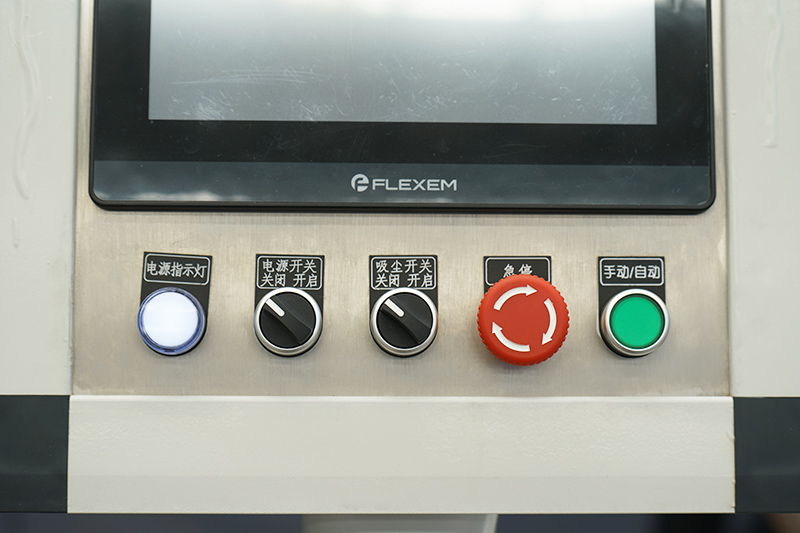

| Control system | Blue Elephant customized control system |
| Main Spindle | 5.5KW Changchuan ISO ATC spindle |
| Horizontal spindle | 2*4.5KW Jester air cooling spindle |
| 45°Lamello spindle | 2.2KW Changchuan right-angle spindle |

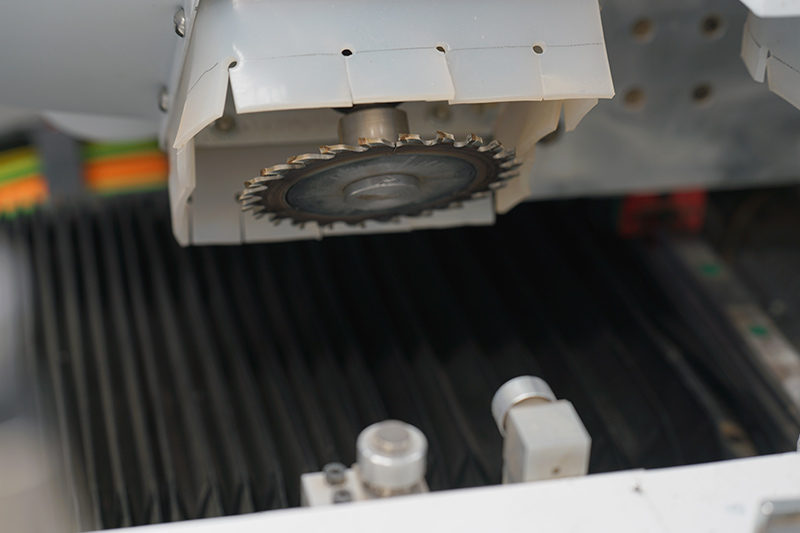

| 45° saw blade spindle | 4.5KW Jester air cooling spindle |
| Servo motor | 850W Delta servo motor |
| Guide rail | Taiwan SHAC Y axis 30#, X/Z axis 25# |
| Rack | Taiwan Jingter M2 |
| Screw | Z axis 3205, X axis 2510 |
| Reducer | Japan SHIMPO 1:8 |
| Inverter | 7.5KW Fuling Inverter + 2.2KW |
| Machine power | 12KW |
| Machine weight | 2000kg |
Hinge hole, hanging code notch, lamino, IF connector, top and bottom hinge slot, door lock hole slot, tatami embedded slot, handle-free slot, crabapple slot, light slot, sliding door pulley slot, straightener slot, etc.
Door and cabinet integrated machine is usually suitable for various wood, composite materials and some plastic materials.
250*50mm-3050*180mm.
