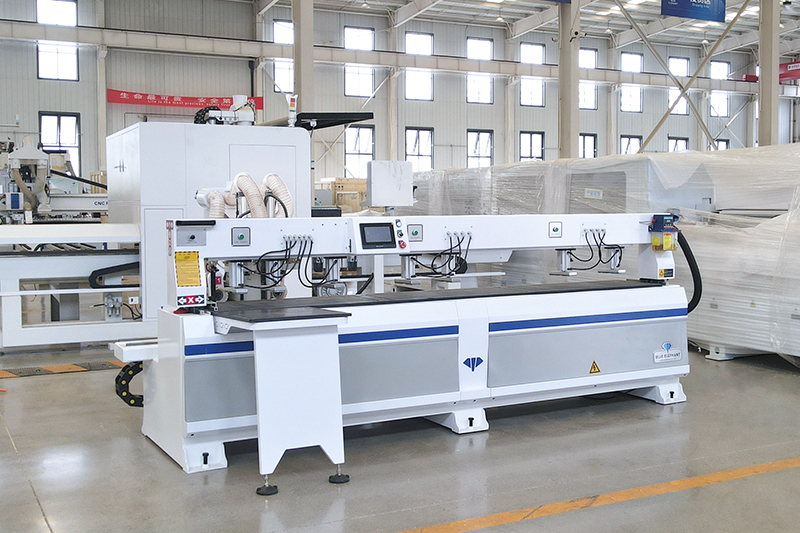

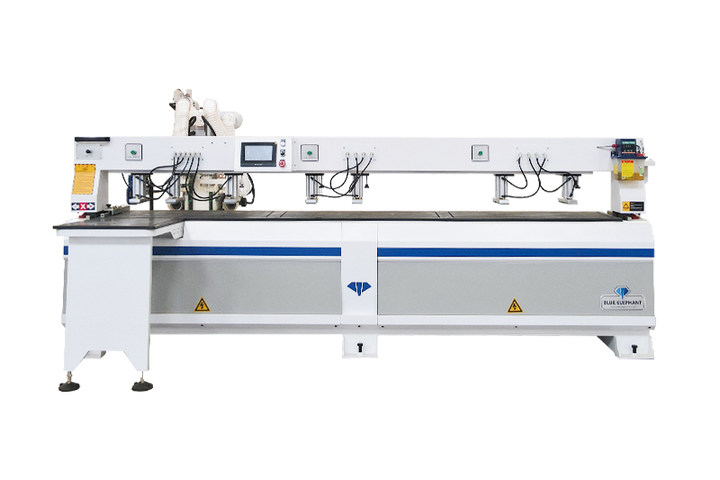

Four-process Handle-free Side Hole Drilling Machine

5.0 based on 28 ratings and reviews

Brand : Blue Elephant

Model : Four-process Handle-free Side Hole Drilling Machine

Category : CNC Drilling Machine

Price Range : $5000 to $10000 / Set based on the configuration

Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards

After-sale Service : Professional operation training service.

Supply Ability : 200 Sets per Month

Description

Four-process handle-free side hole drilling machine is mainly used for processing door panels, wardrobe door panels, wall panel fasteners and other workpieces, including milling processing of hinge holes, laminae, three-in-one connectors, handle-free grooves, lamp grooves, straightener grooves, frame handle grooves and other types of processes.

Features

1. This side hole drilling machine supports various handles-free techniques, including bullhorn handles, rocket handles, nested handles, and semi-circular handles.

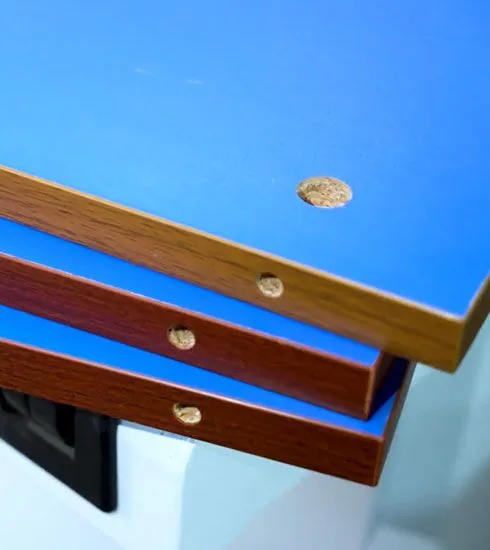

2. The CNC drill machine features concealed hardware processing capabilities, supporting traditional 3-in-1 connectors and Lamello joinery techniques.

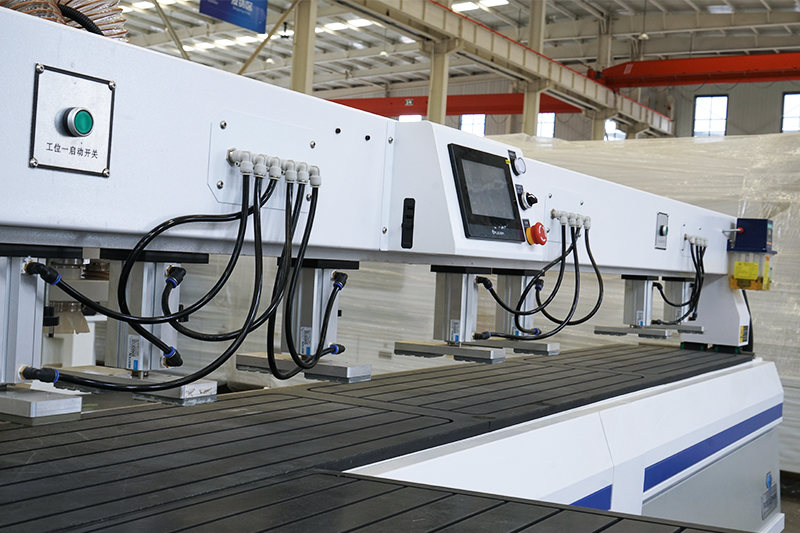

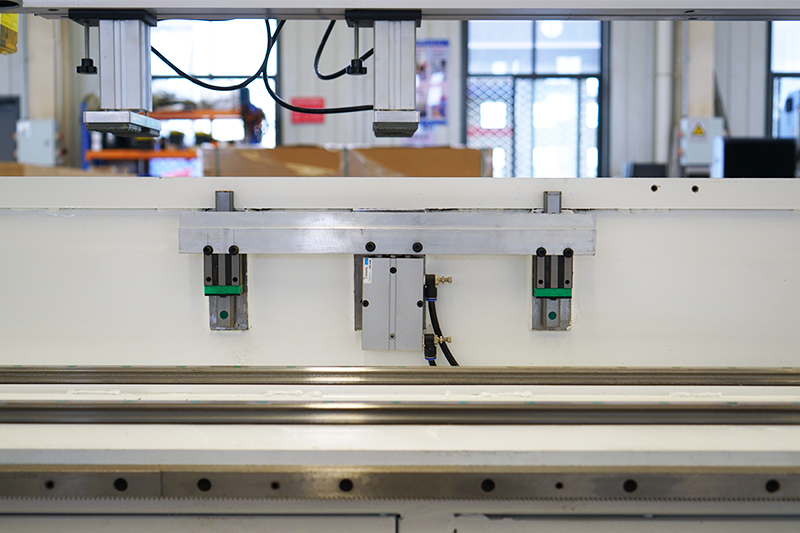

3. Its movable crossbeam automatically adjusts according to panel width or processing position, ensuring flexible operation.
4. The adjustable positioning stop block moves to avoid tool paths, adapting to various processing requirements.

Parameters

Body size

3600*1300*1450mm

Table height

750mm

Left and right X-axis working stroke

0-2800mm

Spindle motor brand

SCS/Huajiang/Changsheng/Oakmond

Front and rear Y-axis working stroke

0-50mm

Spindle motor speed

18000 rpm/min

Up and down Z axis working stroke

0-50mm

Spindle motor power

T1/T2 spindle 2.2KW, T3/T4 spindle 3.5KW

Maximum sheet size (length/width/thickness)

2800*1300*50mm

Control system

Lorenchi scanning code scanning dual system

Drive motor brand

Division servo motor

Laser sensor

American Banner laser head

Drive motor power

750W servo *3 (Z axis with brake)

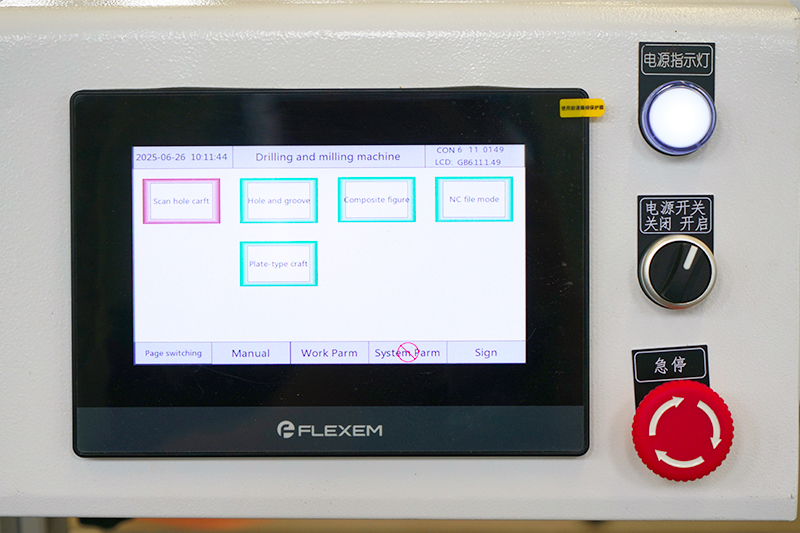

Screen

7 inch touch screen

Electrical main parts

Chint Electric

Inverter

Best 4KW

Rack

Jarl rack

Reducer

Taiwan Planet

Lead screw

Z+Y axis 25 high-precision
grinding screw

Motor base

Die-casting high-precision
grinding

Die-casting high-precision grinding

Taiwan Renben

Application

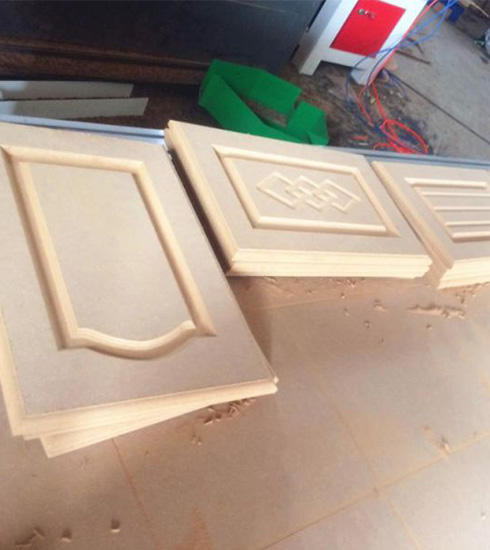

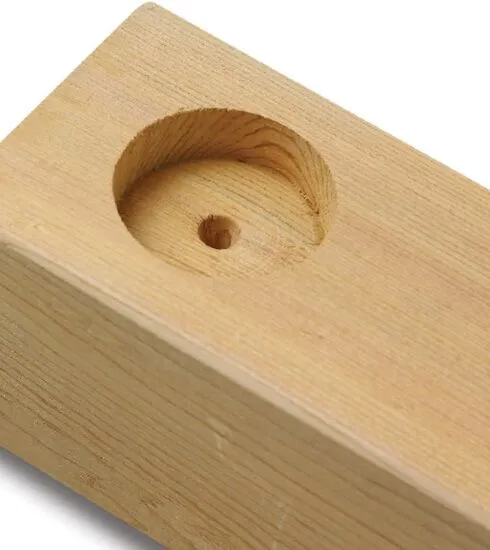

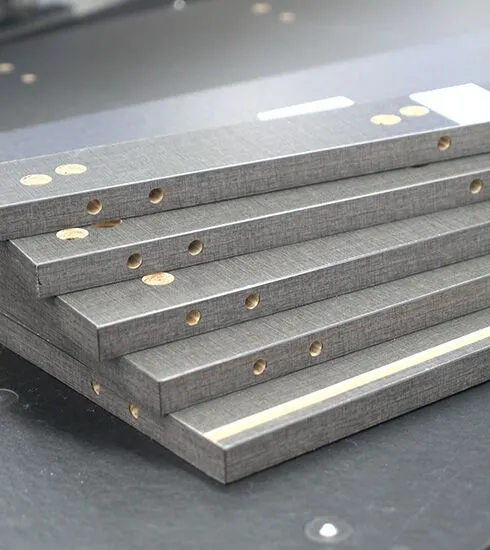

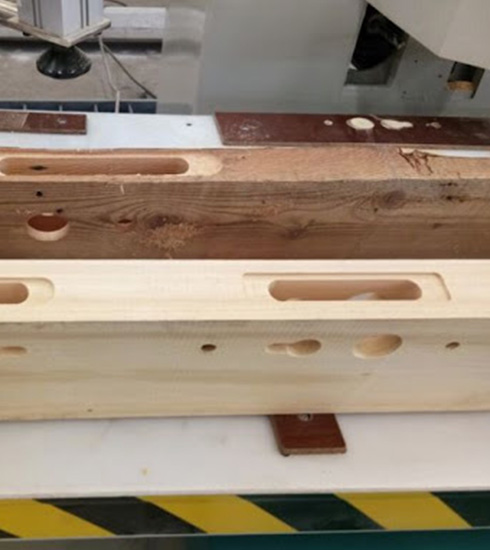

Four-step handle-free side hole drilling machine can process door panels, wardrobe door panels, wall panel fasteners and other workpieces. The processing technologies include hinge holes, laminos, three-in-one connectors, handle-free slots, lamp slots, straightener slots, frame handle slots, etc.
